SKU: TH1743

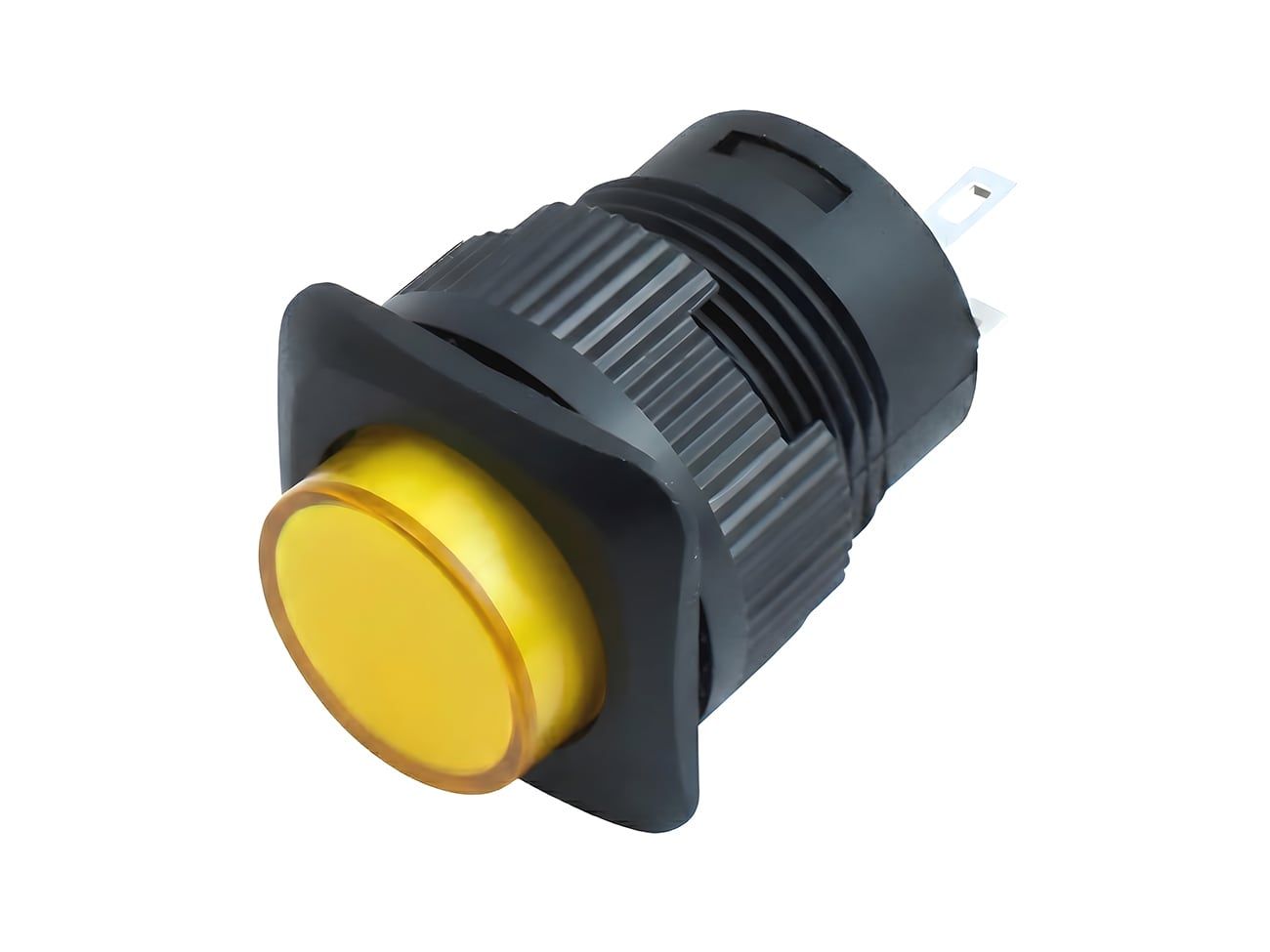

The R16-504B series is a reliable 16mm square momentary pushbutton switch designed for control panels, automation equipment, DIY electronics, and embedded applications. Built with a smooth actuation feel and long service life, it performs consistently even under demanding environmental conditions.
The R16-504B series is a reliable 16mm square momentary pushbutton switch designed for control panels, automation equipment, DIY electronics, and embedded applications. Built with a smooth actuation feel and long service life, it performs consistently even under demanding environmental conditions.
Two versions are available:

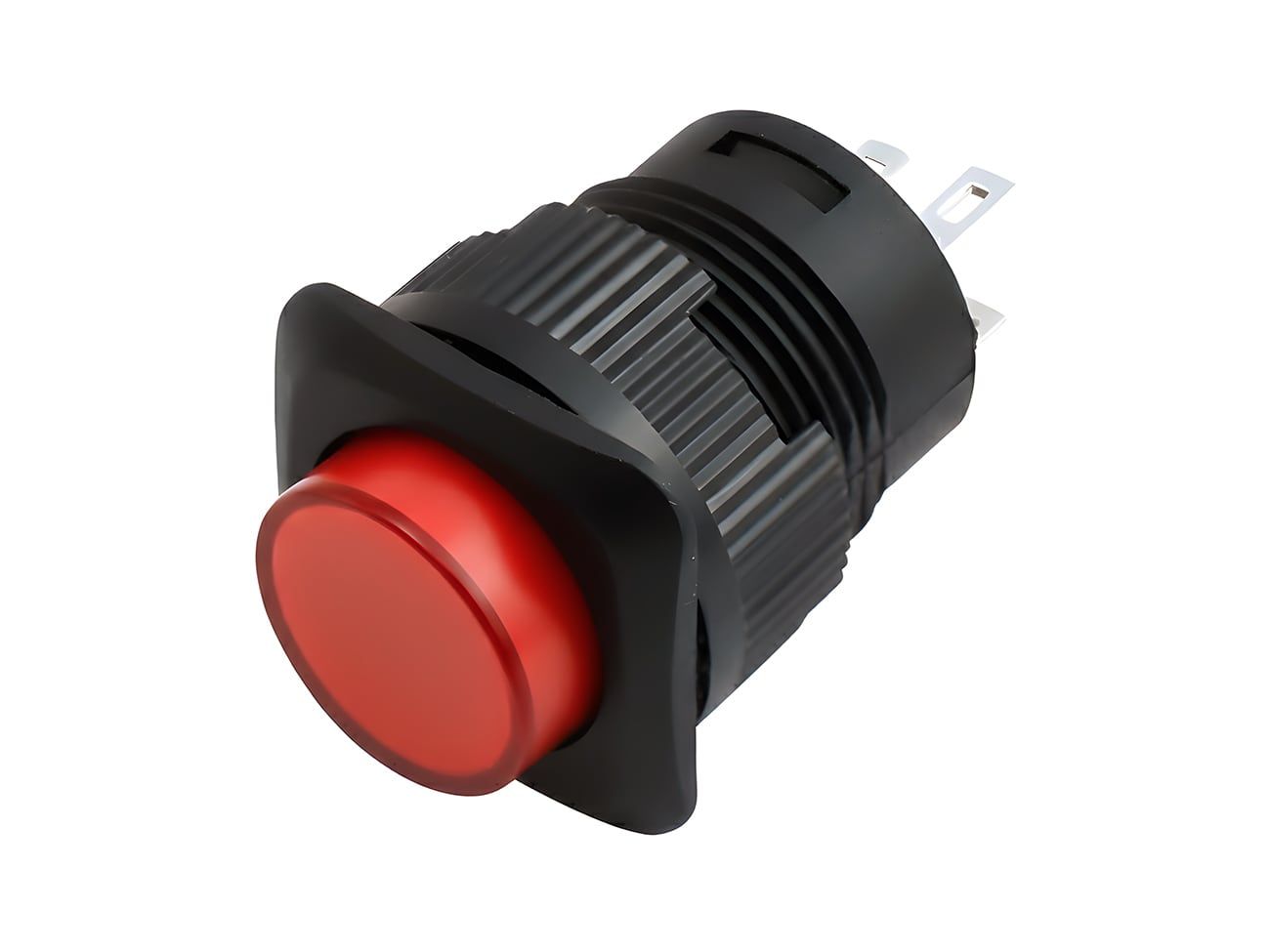

R16-504BD – includes a 3V LED indicator with 4-pin output (2 switch pins + 2 LED pins)

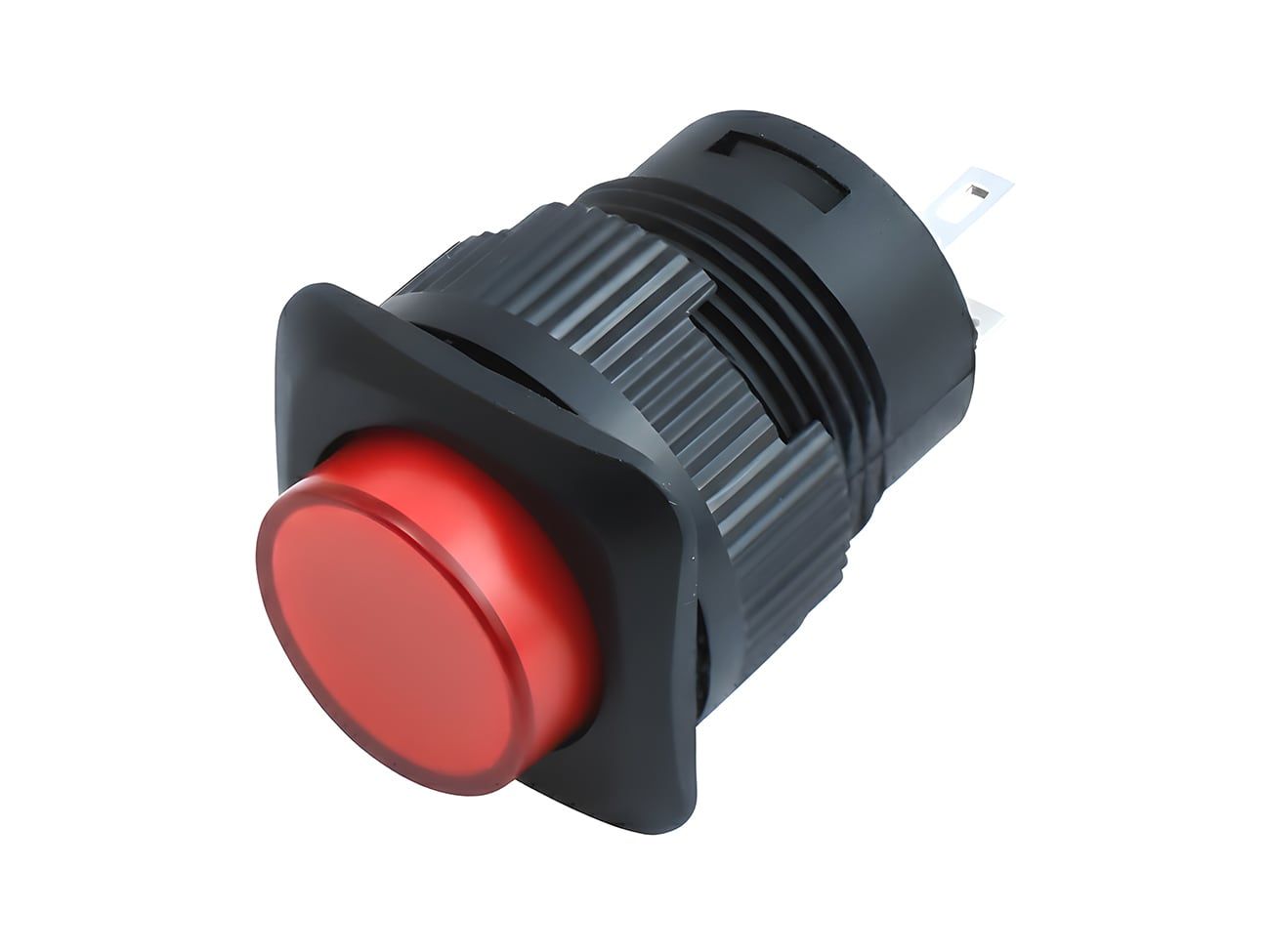

R16-504B – a non-illuminated model with a simple 2-pin switch configuration
Both variants maintain low contact resistance, strong insulation performance, and are rated for 3A at 250V AC. Their wide operating temperature range (−40°C to +80°C) ensures dependable operation across industrial and outdoor environments.
Technical details for R16-504B/BD 16mm Square Panel Mount Momentary Pushbutton.
| Specification | R16-504BD (With LED) | R16-504B (No LED) |
|---|---|---|
| Illumination | Yes | No |
| Button Type | Momentary Pushbutton Switch | |
| Mounting Hole Size | 16 mm | |
| Pin Count | 4 Pins (2 switch + 2 LED) | 2 Pins (switch only) |
| Electrical Rating | 3A / 250V AC | |
| LED Voltage | 3V DC | — |
| Contact Resistance | ≤ 50 mΩ | |
| Insulation Resistance | ≥ 100 MΩ | |
| Mechanical Life | ≥ 50,000 cycles | |
| Electrical Life | ≥ 10,000 cycles | |
| Operating Temperature | −40°C to +80°C | |
