SKU: TH1506

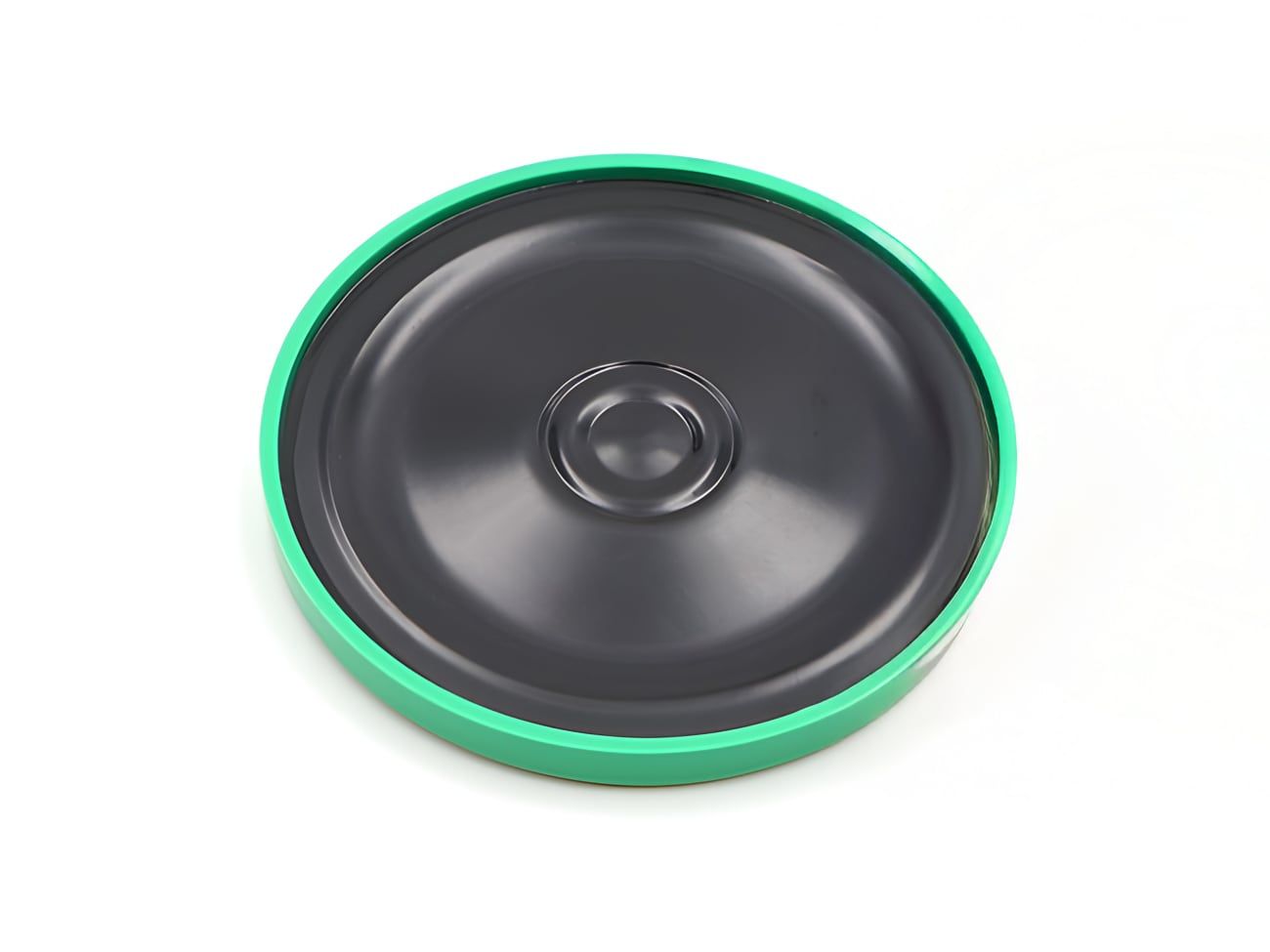

This 40mm round thin plastic speaker features a built-in magnet and is ideal for compact audio applications requiring moderate volume output in a slim profile.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
This 40mm round thin plastic speaker features a built-in magnet and is ideal for compact audio applications requiring moderate volume output in a slim profile.
With a resistance of 8 ohms and rated at 0.25 watts, this speaker delivers clear sound at 88dB ±3dB and operates reliably across a wide temperature range.

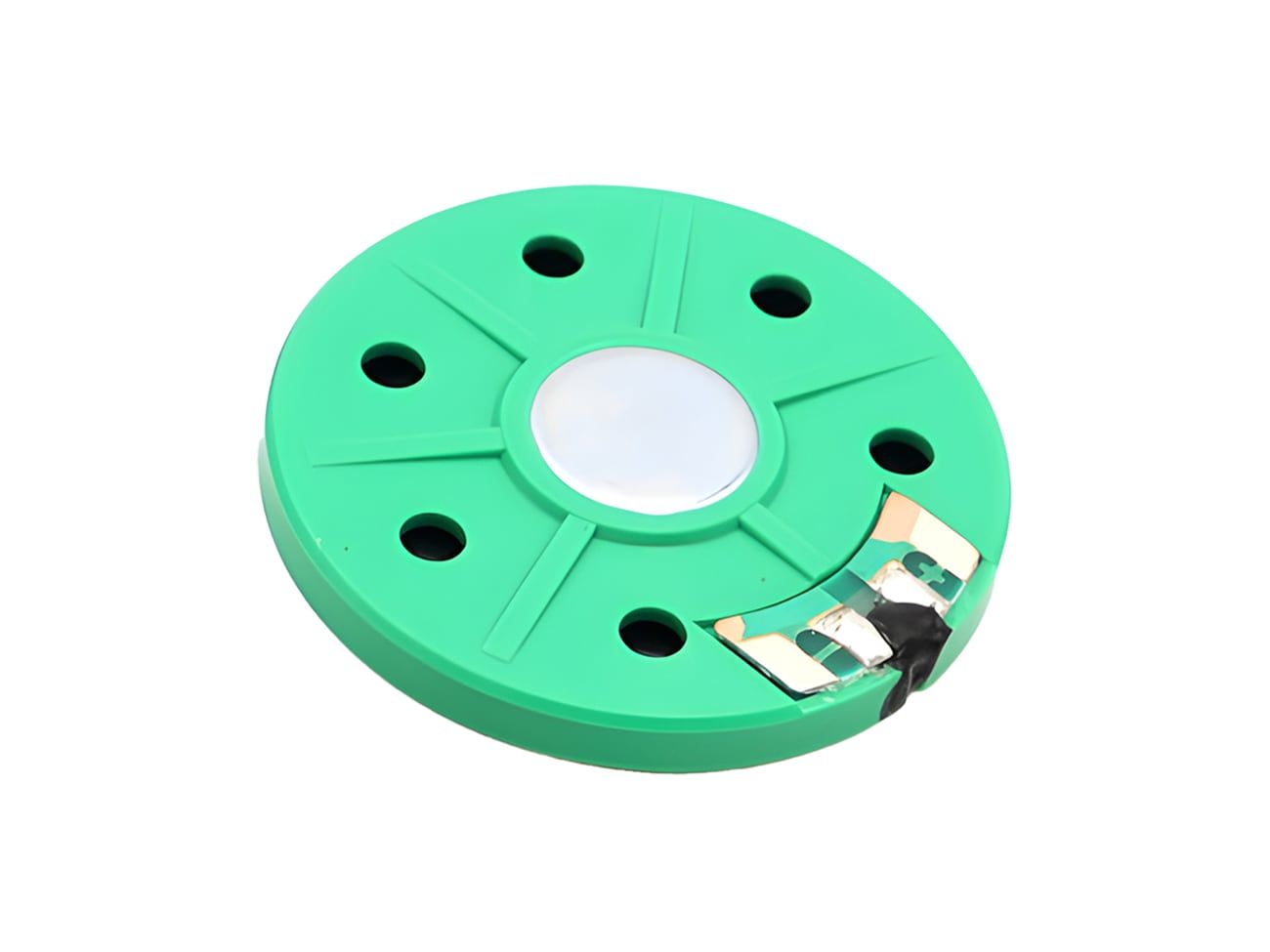

Its lightweight plastic construction and internal magnetic structure make it suitable for toys, learning devices, intercoms, and other portable electronics.
Technical details for 8 ohm 0.25W Thin Plastic Speaker - 40mm Round.
| Specification | Details |
|---|---|
| Model | XHXDZ-40MM-8R0.25W |
| Speaker Type | Plastic Housing with Internal Magnet |
| Impedance | 8Ω ±15% |
| Rated Power | 0.25W |
| Dimensions | 40mm × 5mm |
| Resonant Frequency | 600Hz ±25% |
| Sound Pressure Level | 88dB ±3dB |
| Operating Temperature | -25°C to +60°C |
| Mounting Hole Diameter | 3.7mm |
