SKU: TH2093

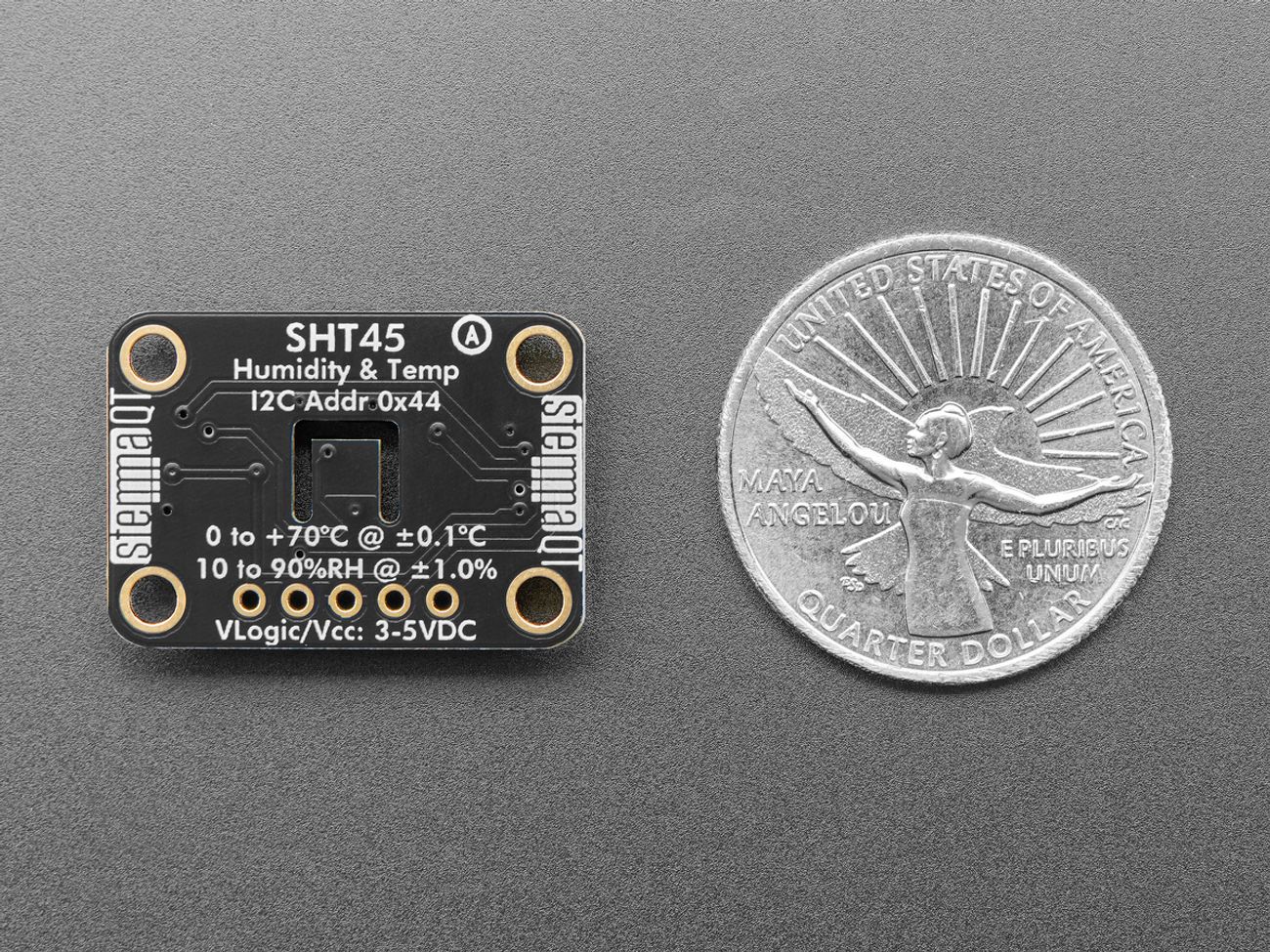

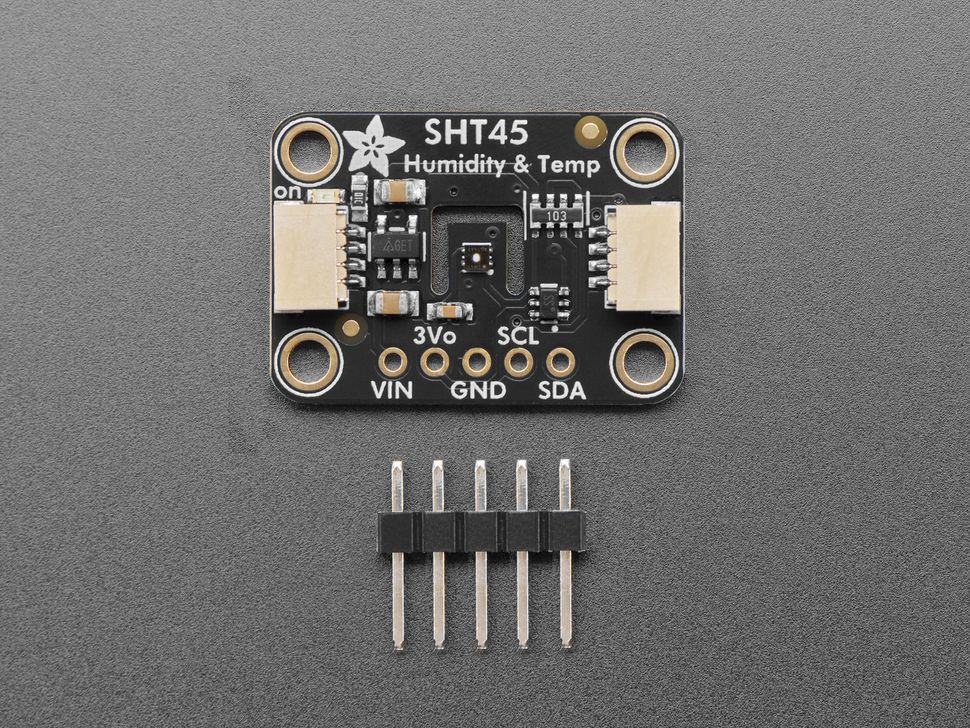

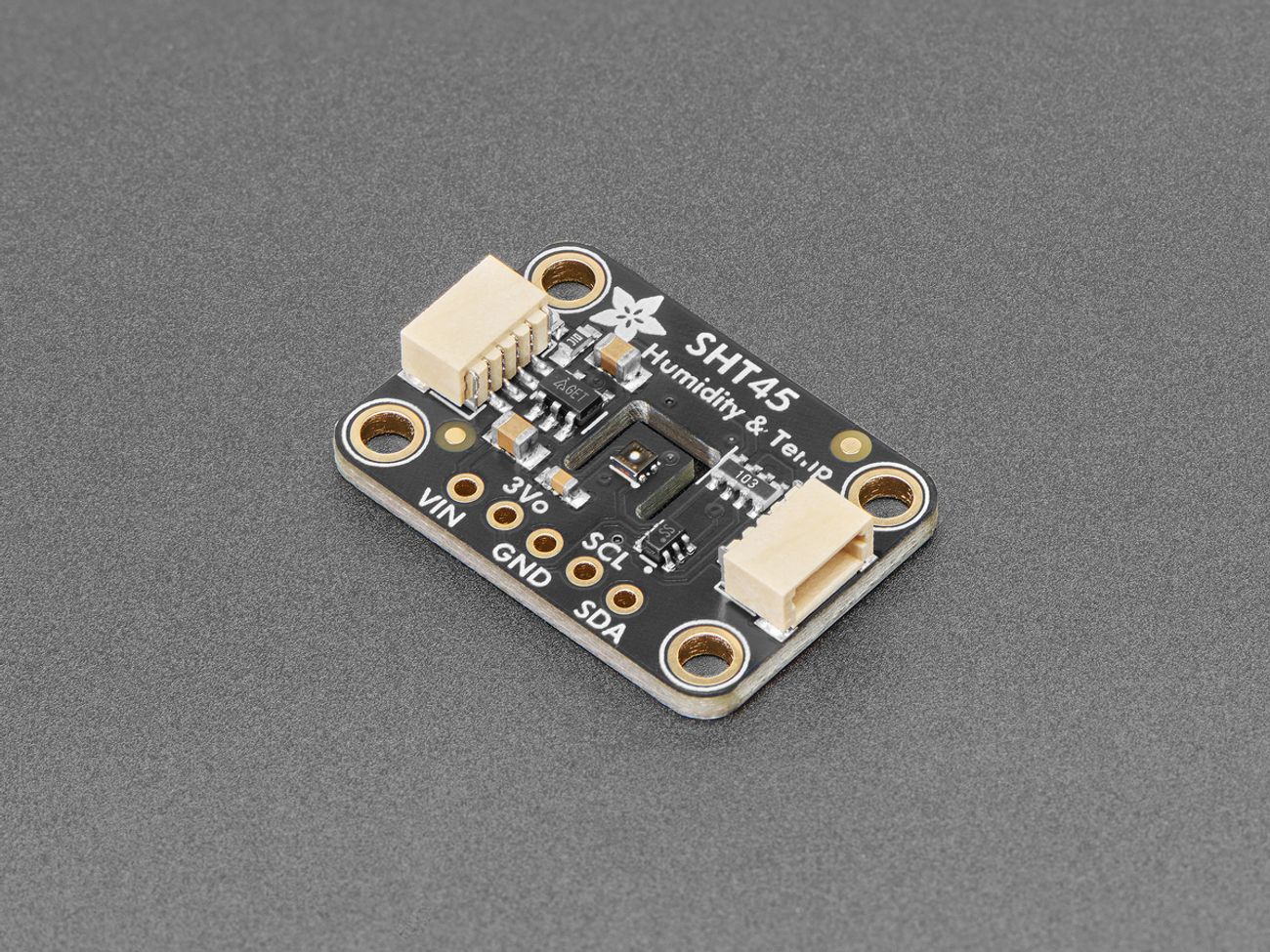

The Adafruit SHT45 PTFE breakout brings Sensirion’s fourth-generation SHT4x sensing technology to an easy-to-integrate I2C module designed for demanding applications. Built around the high-precision SHT45-AD1F-R2, this version includes an integrated PTFE protective membrane for enhanced durability in dusty, humid, and harsh industrial environments.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
The Adafruit SHT45 PTFE breakout brings Sensirion’s fourth-generation SHT4x sensing technology to an easy-to-integrate I2C module designed for demanding applications. Built around the high-precision SHT45-AD1F-R2, this version includes an integrated PTFE protective membrane for enhanced durability in dusty, humid, and harsh industrial environments.
Delivering ±1.0% RH typical accuracy (25–75% RH) and ±0.1°C typical temperature accuracy (0–75°C), the SHT45 is ideal for environmental monitoring, calibration systems, industrial control, HVAC validation, laboratory instrumentation, and embedded sensing systems where measurement integrity matters.
Unlike earlier SHT generations, the SHT45 provides a true I2C interface with CRC protection and FM+ support, making integration straightforward with microcontrollers, SBCs, and industrial controllers.
Performance Highlights:
This makes it suitable not just for hobby use, but for professional and semi-industrial deployments.
Technical details for Adafruit SHT45 Sensirion Precision Temp Humidity Sensor PTFE
| Specification | Details |
|---|---|
| Sensor IC | Sensirion SHT45-AD1F-R2 |
| Humidity Accuracy | ±1.0 %RH (typical, 25–75% RH) |
| Temperature Accuracy | ±0.1 °C (typical, 0–75 °C) |
| Humidity Range | 0–100 %RH |
| Temperature Range | −40 °C to +125 °C |
| Interface | I2C (FM+), CRC enabled |
| Default I2C Address | 0x44 |
| Logic Voltage | 3.3V – 5V (onboard regulator + level shifting) |
| Average Current | 0.4 µA |
| Idle Current | 80 nA (sensor only) |
| Protection | 100 µm PTFE membrane, IP67-rated protection |
| Dimensions | 25.5 mm × 17.7 mm × 4.8 mm |
| Weight | 1.7 g |

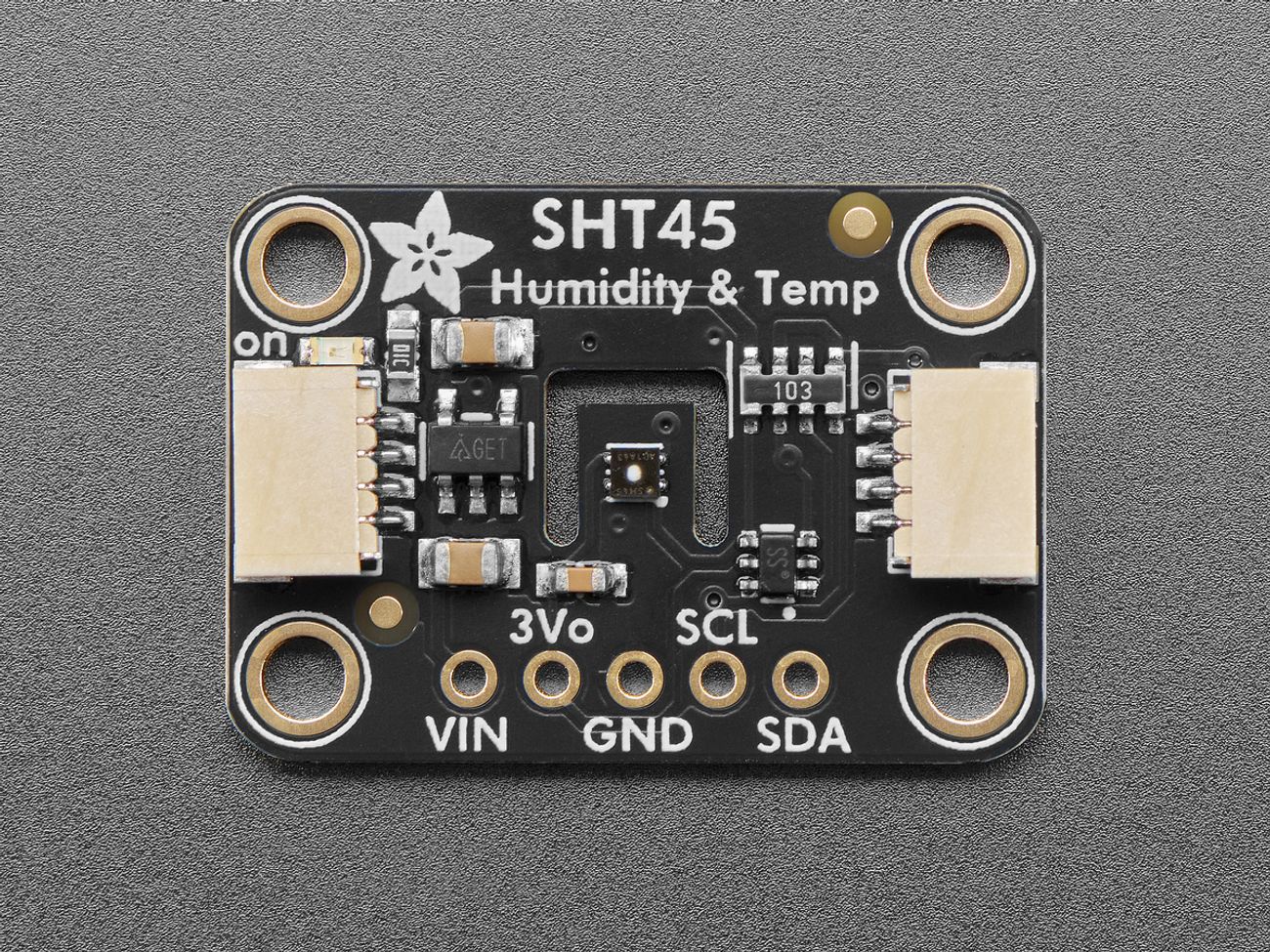

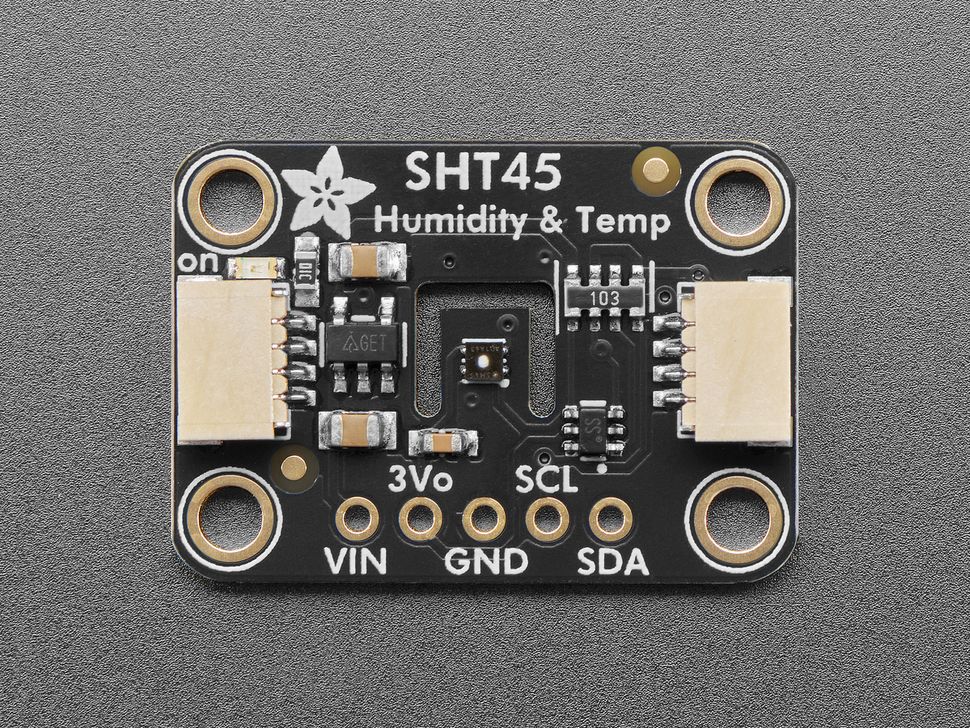

| Pin | Function |
|---|---|
| VIN | Power input. Supply the same voltage as your MCU logic level (3–5V). Example: use 5V with Arduino. |
| 3V | 3.3V regulated output from the onboard regulator (up to ~100mA available). |
| GND | Common ground for power and logic. |
| SCL | I2C clock line. Level shifted for 3–5V logic with an onboard 10K pull-up resistor. |
| SDA | I2C data line. Level shifted for 3–5V logic with an onboard 10K pull-up resistor. |

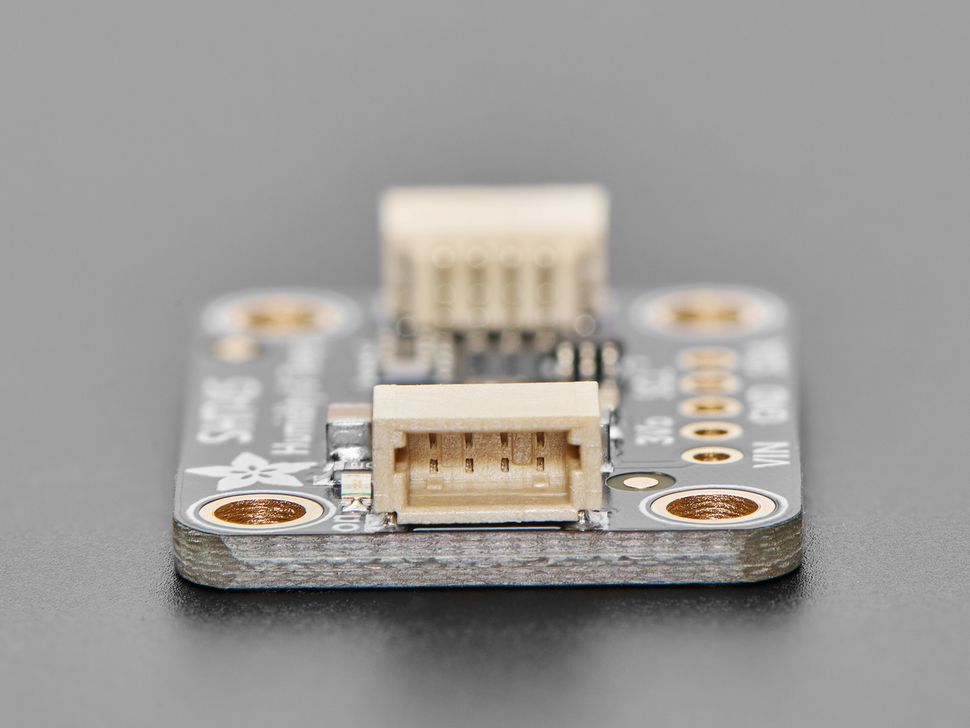

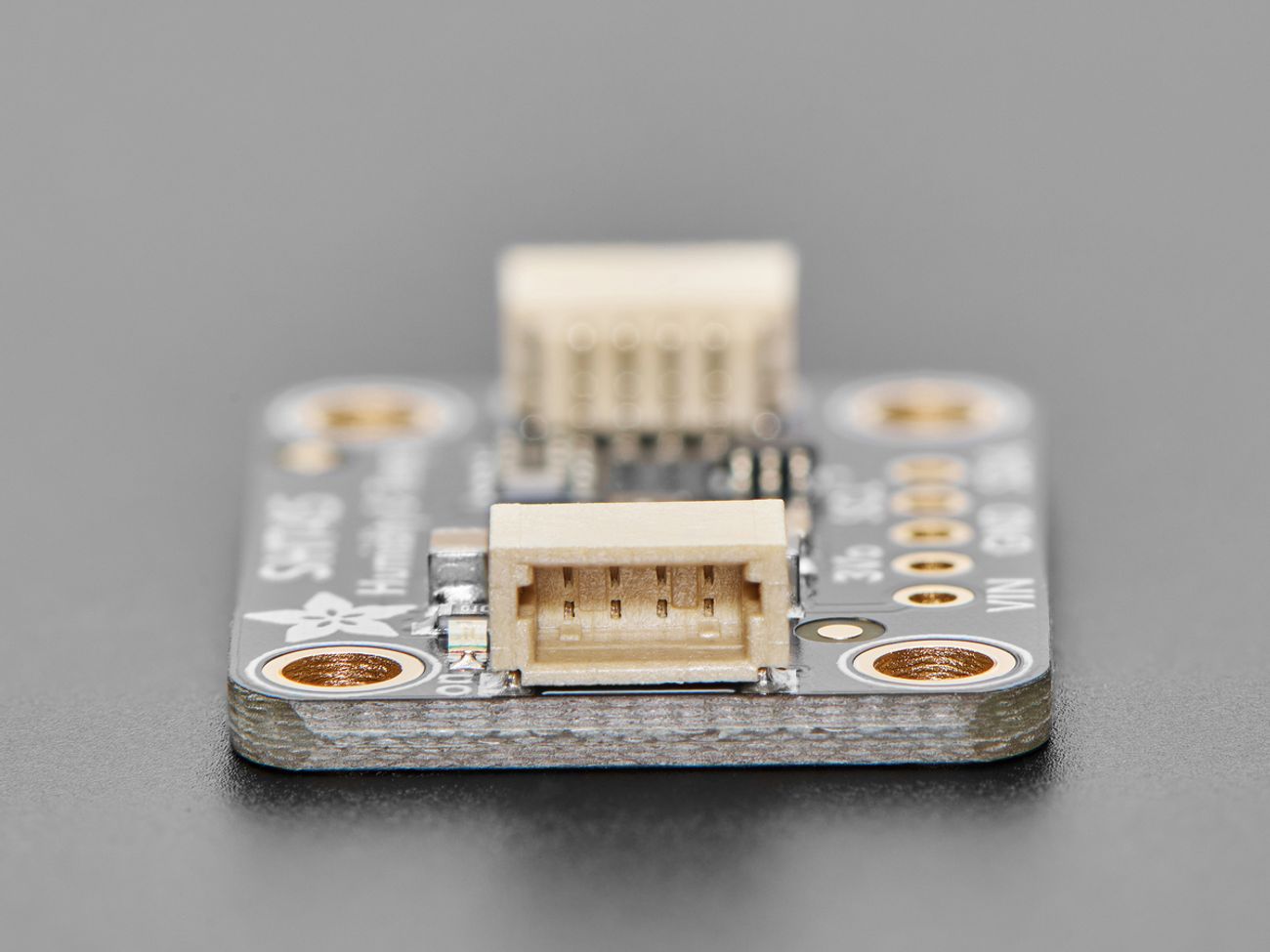

| STEMMA QT / Qwiic | JST SH connectors for plug-and-play I2C wiring to compatible dev boards and peripherals. Uses the same VIN/GND/SCL/SDA signals. |
| Default I2C Address | 0x44 |
