Overview

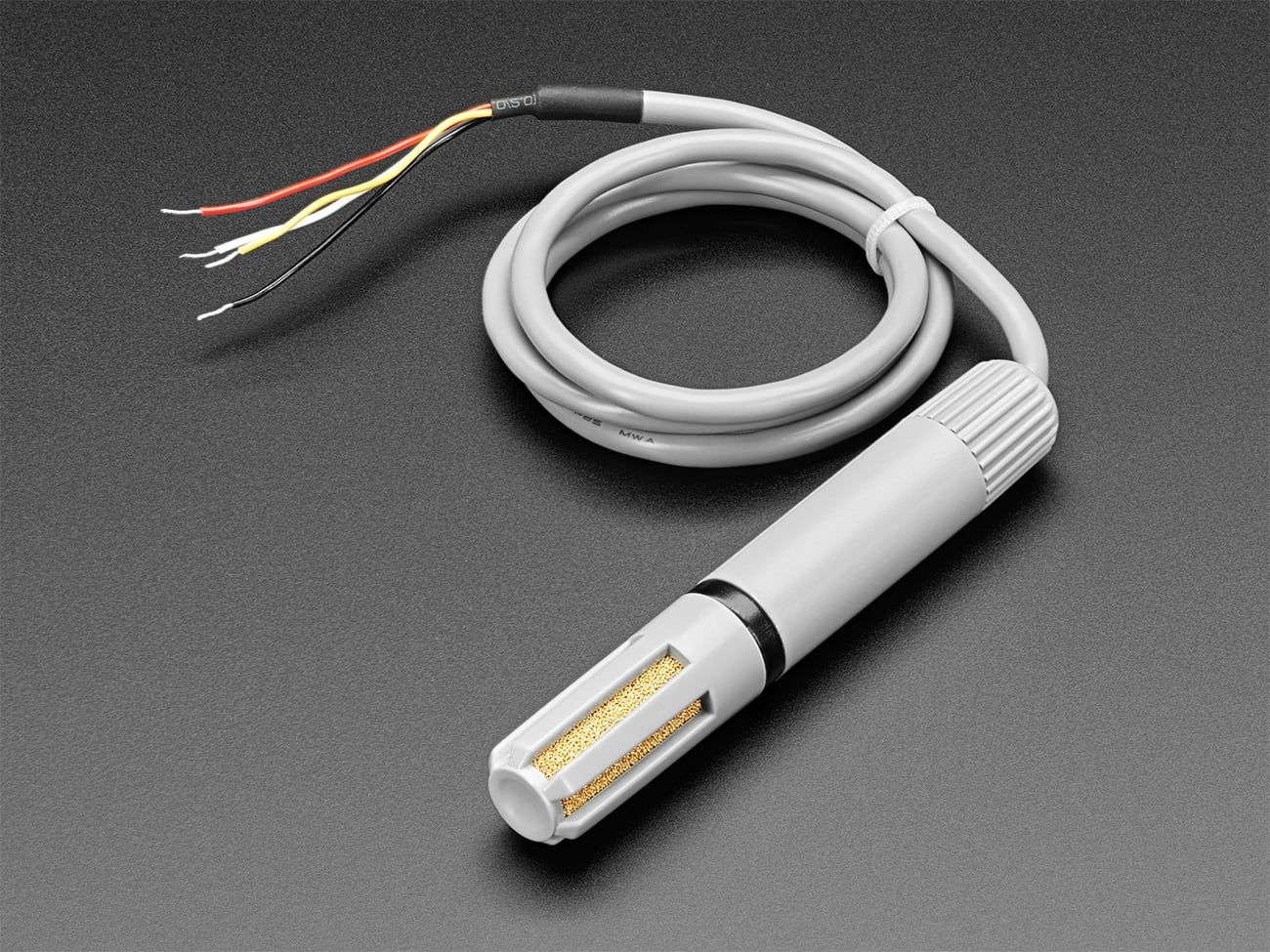

The AM2305B is a high-precision digital temperature and humidity probe sensor with an operating voltage of 3.3 to 5.5V DC. It can measure temperature from -40°C to +80°C with an accuracy of ±0.5°C at 25°C and a resolution of 0.1°C.
Similarly, it can measure relative humidity from 0% to 99.9% RH with an accuracy of ±3% RH at 25°C and a resolution of 0.1% RH. It also offers excellent repeatability and hysteresis characteristics, ensuring consistent and reliable measurements.
It communicates with a microcontroller or other devices using the single-bus protocol, thus using only 3-wires.
Features
- Fully factory calibrated
- High accuracy, RH: ±3%, T: ±0.5℃
- Wide voltage range from 3.3V to 5.5V DC
- Single-bus protocol.
- Good long-term stability
- Fast-response and anti-interference capability
Applications
- HVAC
- De-humidifiers
- Data loggers
- Weather stations
- Automobiles, etc.
Specification
Technical specification for AM2305B sensor.
| Model | AM2305B |
|---|---|
| Supply Voltage | 3.3~5.5V DC |
| Supply Current | 2 ~ 15 uA (Dormancy) 1200 uA (Measure) When VCC = 3.3V and T < 60°C. |
| Output Signal | Single Bus |
| Temperature Range | -40 ~ +80°C |
| Humidity Range | 0 ~ 99.9% RH |
| Temp. Accuracy | ±0.5°C |
| Humidity Accuracy | ±3% RH (25°C) |
| Temp. Resolution | 0.1°C |
| Humidity Resolution | 0.1% RH |
| Repeatable | TEMP: ±0.2°C RH: ±0.1%RH |

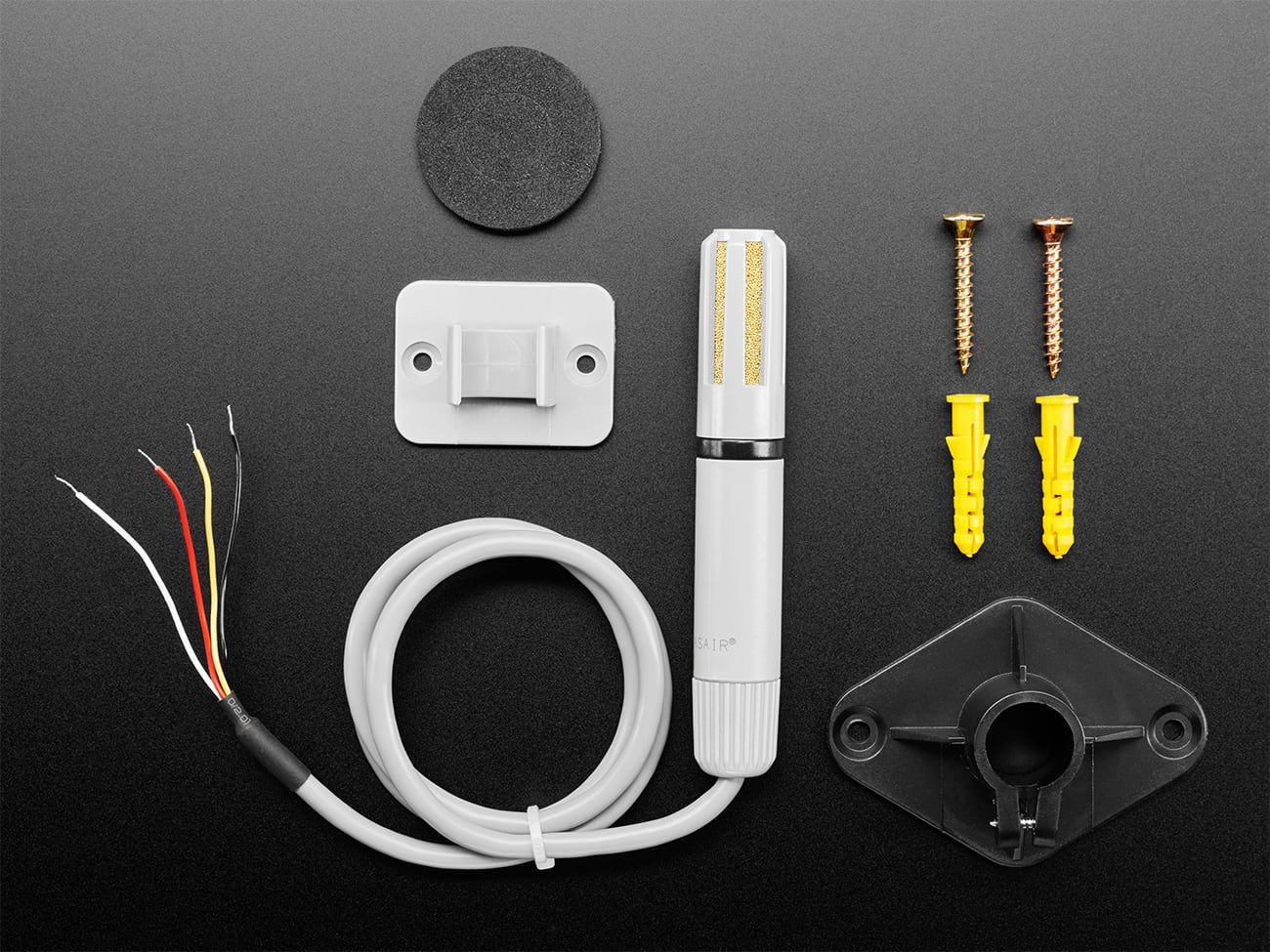

Pinout
Pinout for AM2305B sensor.
| Pin | Name | Color | Function |
|---|---|---|---|
| 1 | VDD | Red | Power Supply 3.3V ~ 5.5V DC |
| 2 | SDA | Yellow | Serial Data, Bi-directional port |
| 2 | GND | Black | Ground |
| 4 | NC | White | No Connect |
