Amass AM-1015E Male & Female Connector

Amass
SKU: TH1431 MPN: AM-1015E-M
₹35.10
₹27.00 In Stock
₹31.86 (Incl. GST)
You Save: ₹3.24 (10%)
Ships Today - If you order within 4 hrs 7 mins!
Ships from Mumbai, MH
GST Invoice

  • Type


Quality
First

Awesome
Support

Secure
Checkout

Nationwide
Shipping

100 Percent Genuine Guarantee Badge

The Amass AM-1015E Connector is designed for secure, high-current connections with gold-plated contacts, flame-retardant housing, and a rugged skid-proof design.

Read more details

Bulk Discount

Buy more & save more!

Quantity Unit Price
1 ₹27.00
2-4₹26.46
5-9₹25.65
10-49₹25.11
50+₹24.30
Need more quantity? contact sales

Overview

The Amass AM-1015E Connector is designed for secure, high-current connections with gold-plated contacts, flame-retardant housing, and a rugged skid-proof T-plug design.

Perfect for RC models, drones, and power systems, it delivers up to 25A with superior insulation and safety ratings.

Specification

Technical details for Amass AM-1015E Male & Female Connectors.

Specification Details
Brand Amass
Connector Type AM-1015E (Male/ Female)
Withstand Voltage 600V DC
Working Temperature -20℃ to 120℃
Contact Resistance 0.45mΩ
Rated Current 25A MAX (16AWG / △≤85K)
Instantaneous Current 50A
Salt Spray Resistance 48 Hours
Insulation Resistance ≥2000MΩ
Material PA / Brass (Gold-Plated)
Service Life 1000 Mating Cycles
Protection Level IP40
Flame Retardant Grade UL94 V-0 (Wall Thickness 0.8mm)

Dimensions

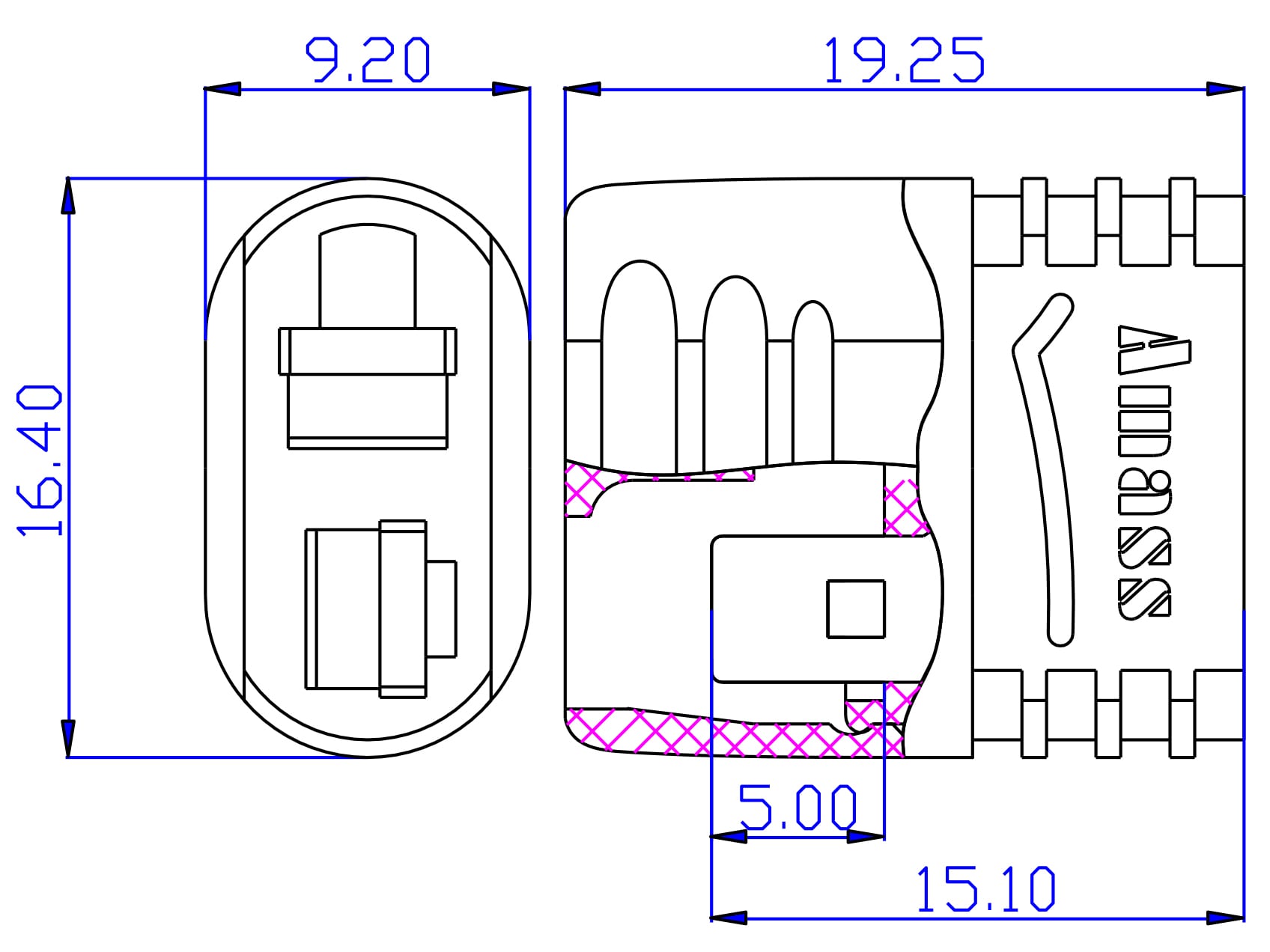

Drawing & Dimensions for Amass AM-1015E Male Connector Drawing & Dimensions for Amass AM-1015E Female Connector
