Overview

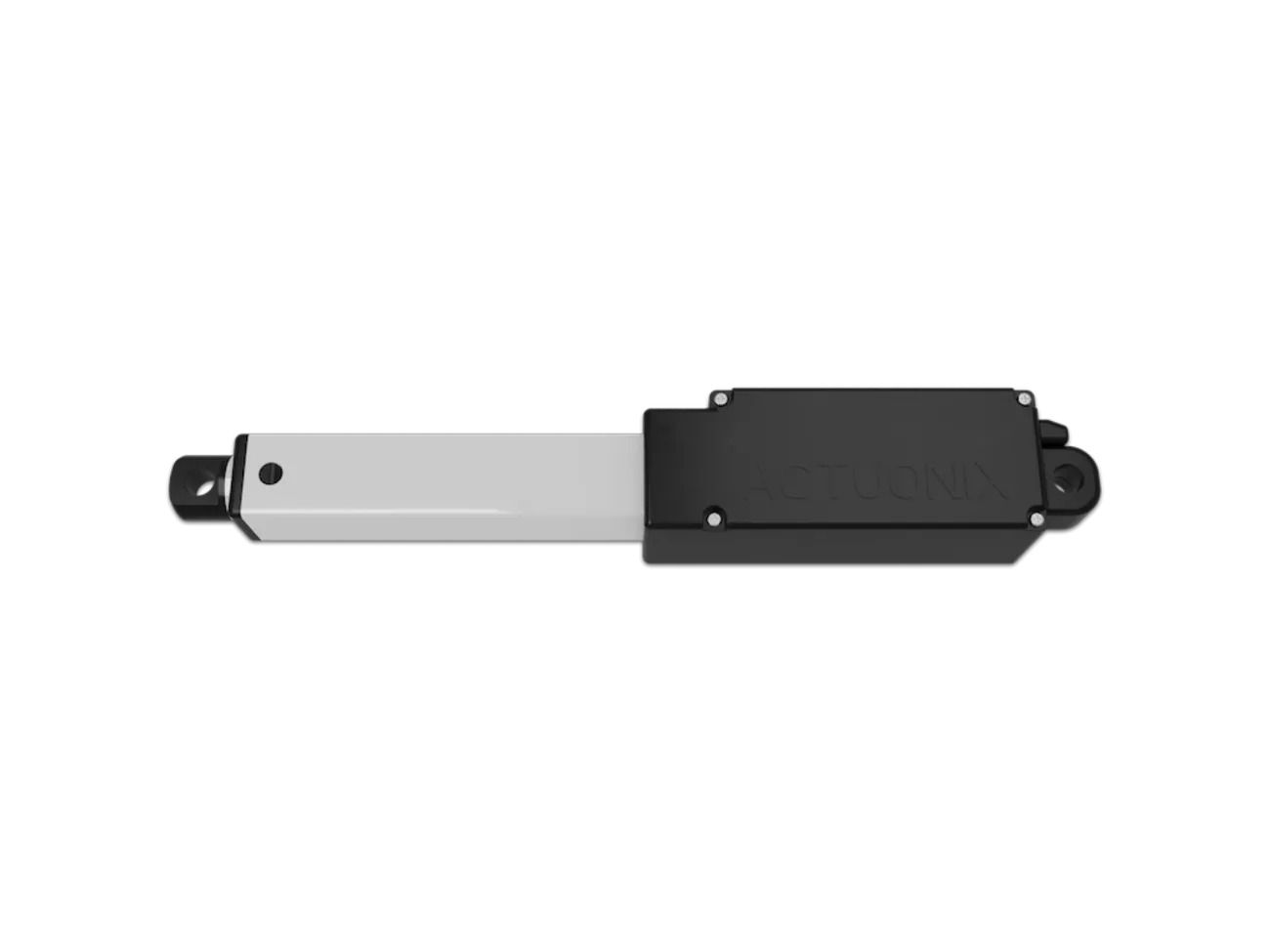

Actuonix’s unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. This L16-S 50mm 35:1 12V linear actuator is a superior alternative to designing your own push/pull mechanisms.
The L16 actuators are complete, self contained linear motion devices with position feedback for sophisticated position control capabilities, end of stroke limit switches for simple two position automation, or RC servo. Several gear ratios are available to give you varied speed/force configurations.
This L16-P actuator is controlled with a potentiometer feedback. It can be used with a compatible DC motor position controller to allow movement to any required position.
Whats in the Box?
Whats included in the box?

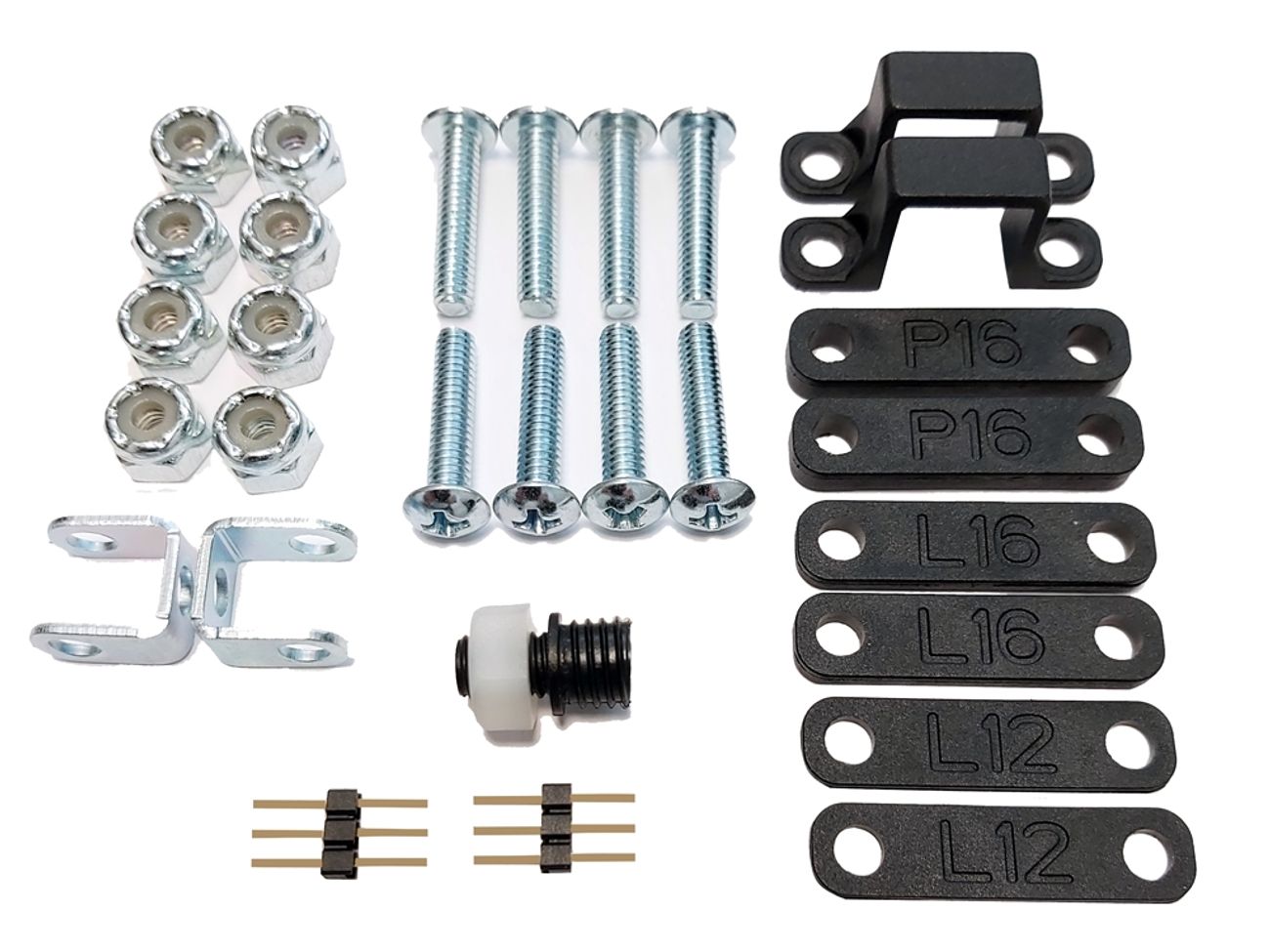

- L16 Actuator with Limit Switches
- Mounting Screws and Nuts, etc.
Downloads
SPECIFICATION
Actuator specification
- Manufacturer Part Number
L16-50-35-12-S - Peak Power Point
50N @16mm/s - Peak Efficiency Point
24N @24mm/s - Max Speed (no load)
32mm/s - Max Force (lifted)
50N - Back Drive Force (static)
31N - Mass
56g - Repeatability (-P&LAC)
0.3mm - Max Side Load (extended)
40N - Closed Length (hole to hole)
118mm - Feedback Potentiometer
6kΩ±50% - Input Voltage
12V - Stall Current
650mA @ 12V - Operating Temperature
-10°C to +50°C - Max Duty Cycle
20% - Audible Noise
60dB @ 45cm - Ingress Protection
IP-54 - Mechanical Backlash
0.25mm - Maximum Static Force
250N
ABOUT Actuonix
Actuonix Motion Devices build micro linear actuators and linear servos. Based in Victoria, BC, Canada, they provide innovative and economical micro motion solutions for the growing needs of several markets including robotics, aerospace, automotive, medical and radio control. Actuonix is a leading manufacturer and innovator in the micro motion marketplace. They offer the most affordable, high quality micro linear actuators.
Know more about Actuonix
Logo and Trademark belong to Actuonix
