Overview
Lithium-Ion Polymer (a.k.a Lipo or Lipoly) is a reachargeable battery that uses Lithium Ions, similar to a standard lithium-ion battery. However, instead of a liquid electrolyte, it uses a polymer electrolyte which is a highly conductive gel that allows lithium ions to flow between postive and negative electrodes. Lipo batteries are lightweight, thin and can have a higher engery density into a small space.

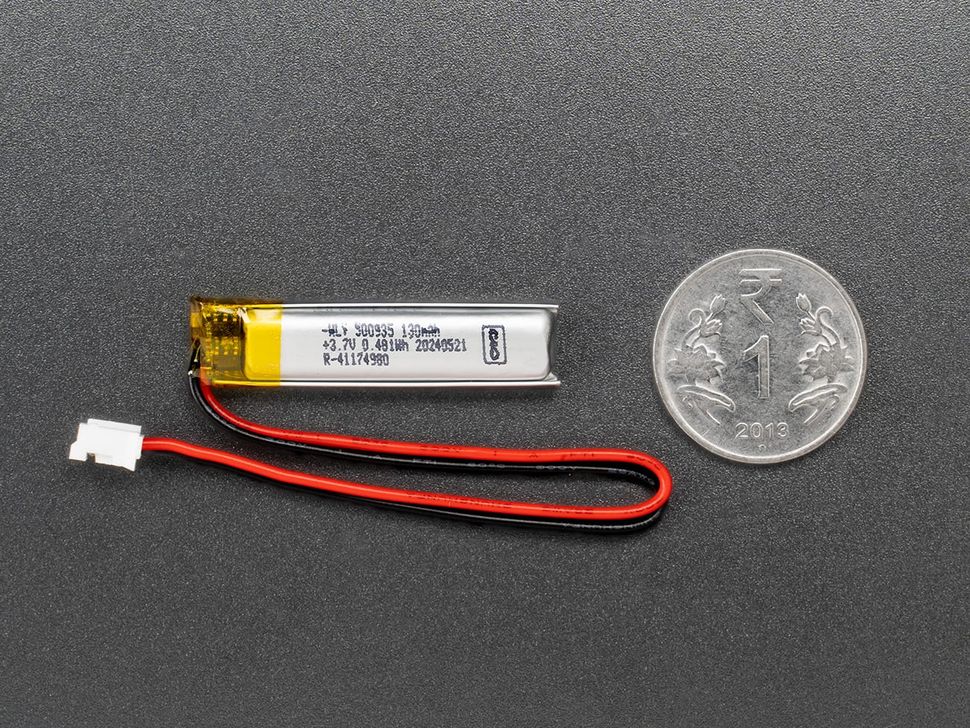

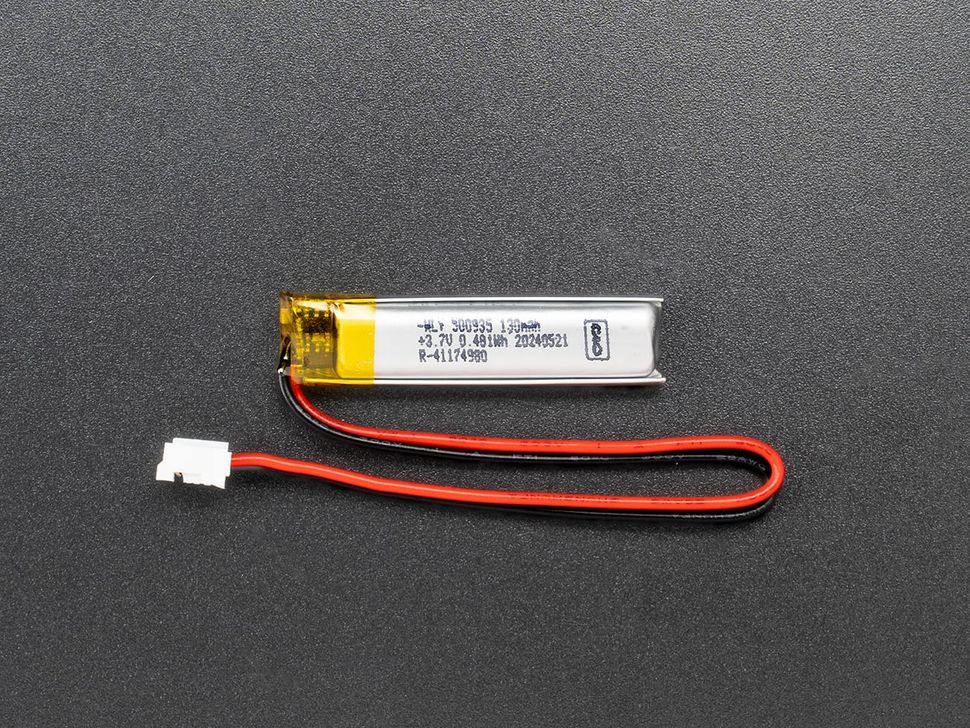

This is a 3.7V 130mAh Lithium-ion Polymer battery which outputs voltage ranging from 3.7V to 4.7V when completely charged. It comes with a 2-pin JST-PH connector, 100mm wire length and has a built-in PCM (Protection Circuit Module) which prevents the battery from over charging and over discharging by cutting off the output voltage at 2.75V. PCM also protects against output shorts.
Do's & Dont's
Only use a Lithium Ion / Lithium Polymer chargers which provide constant votlage and constant current.
DO NOT use NiMH/NiCad/lead-acid charger.
DO NOT puncture, poke, fold or cut open the Lithium Ion Polymer battery, it may result in spontaneous fire or explosion.
Specification
Specification for 3.7V 130mAh Lithium Ion Polymer battery.
| Rated Capacity | 130mAh (Typical) 120mAh (Minimum) |
| PCM (Protection Circuit Module) | Yes |
| Energy |
0.481Wh |
| Nominal Voltage | 3.7V |
| Open Voltage | 3.7V ~ 4.2V |
| Load Voltage | ≥ 3.7V |
| Internal Impedance | ≤ 400mΩ |
| Charge Voltage | 4.2V |
| Standard Charge Current | 26mA (0.2C) |
| Max Charge Current | 130mA (1.0C) |
| Standard Discharge Current | 26mA (0.2C) |
| Max Continuous Discharge Current | 130mA (1.0C) |
| Discharge Cut-off Voltage | 2.75V |
| Operating Temperature | 0 to +45℃ (Charge) -10 to +60℃ (Discharge) |
| Storage Temperature | -10 to +45℃ (Less than 1 Month) -10 to +30℃ (Less than 6 Month) |
| Weight |
Dimension
Dimensions for Lithium Ion Polymer battery.
| L (Length) | 37.5mm |
| W (Width) | 9.5mm |
| T (Thickness) |
5.5mm |
| L1 (Wire Length) | 100mm |
| C (Connector) | JST PH-2P |
