Overview

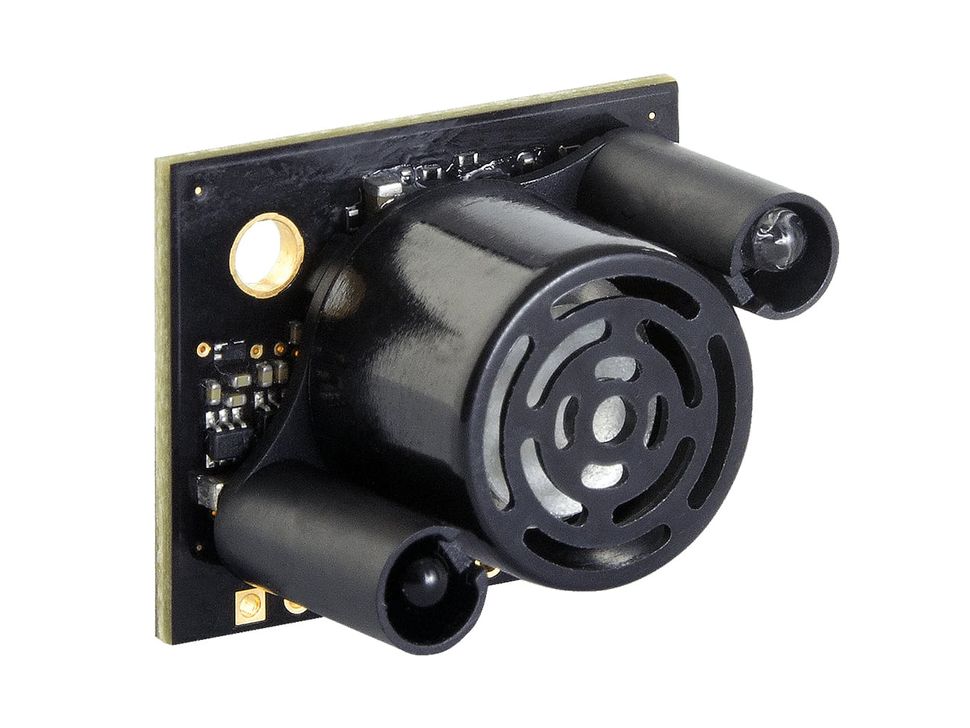

The MB2532 IRXL-MaxSonar-CSA3 is a high-performance ultrasonic rangefinder sensor optimized for precision cargo monitoring and large object detection. With its compact size (less than one cubic inch) and weighing only 5.6 grams, operates efficiently within a wide voltage range of 2.7V to 5.5V while consuming an average current of just 1.65 mA at 5V., it provides a cost-effective and versatile solution for detecting objects from 50 cm to 16.5 meters.
The sensor provides multiple output signals including analog voltage envelope, and serial data (RS232/TTL), depending on the appication needs.
It also provides excellent noise rejection, temperature compensation, and maintaining accuracy across varying environmental conditions, making it ideal for demanding applications.
Ordering Guide
Please refer the table below and contact our support, if you would like to order other than the base variant.
For more details please refer the OEM website for reference. (Click Here)
Specification
Technical specification for MaxBotix MB2532 IRXL-MaxSonar-CSA3.
| Measurement Resolution | 1 cm |
|---|---|
| Detection Range | 50 cm to 16.5 meters |
| Operating Voltage | 2.7V to 5.5V DC |
| Average Current Draw | ~1.65 mA at 5V |
| Operating Temperature | -40°C to +65°C |
| Measurement Cycle | 530 ms |
| Form Factor | Compact module, less than 1 cubic inch |
| Weight | 5.6 grams |
| Outputs | Analog Voltage Envelope, Serial Digital Data (RS232 or TTL), Distance Representation in ASCII format |
| Additional Features | Automatic Calibration, Noise Rejection, Target Size Compensation, Internal Temperature Compensation, Factory Calibrated Beam Width |
Pinout
Pinout for MaxBotix MB2532 IRXL-MaxSonar-CSA3.
| Pin | Function | Description |
|---|---|---|
| 1 | Unused | No connection required. |
| 2 | Analog Voltage Envelope | Outputs the analog voltage envelope representation of the detected object. |
| 3 | Analog Voltage Output | Outputs an analog voltage proportional to the measured distance (scaled as Vcc/1024 per 2 cm). |
| 4 | Ranging Start/Stop | Internally pulled high. Command a range reading by pulling high for at least 20 µs. Leave unconnected for continuous operation. |
| 5 | Serial Output | Outputs serial data in RS232 or TTL format with 1 cm resolution. Data is sent as ASCII characters. |
| 6 | V+ (Power Supply) | Connect to a power supply within 2.7V to 5.5V DC. Requires clean and stable power. |
| 7 | GND | Ground connection (common ground). |
Difference between MB2532 and MB2530
The MB2532 and MB2530 are both part of the IRXL-MaxSonar-CS series, designed for cargo monitoring and proximity detection, but they differ primarily in their output format and application focus:
| Feature | MB2532 | MB2530 |
|---|---|---|
| Output Format | Analog Voltage Envelope | Pulse Width Output (1 µs/cm scale) |
| Primary Application | Applications requiring analog signal or envelope processing. | Applications needing precise timing-based distance measurements. |
| Interface Outputs | Analog Voltage Envelope, Analog Voltage, Serial (RS232/TTL) | Pulse Width, Analog Voltage, Serial (RS232/TTL) |
| Target Size Compensation | Includes target size compensation for varying object dimensions. | Optimized for large target detection while rejecting small features. |
