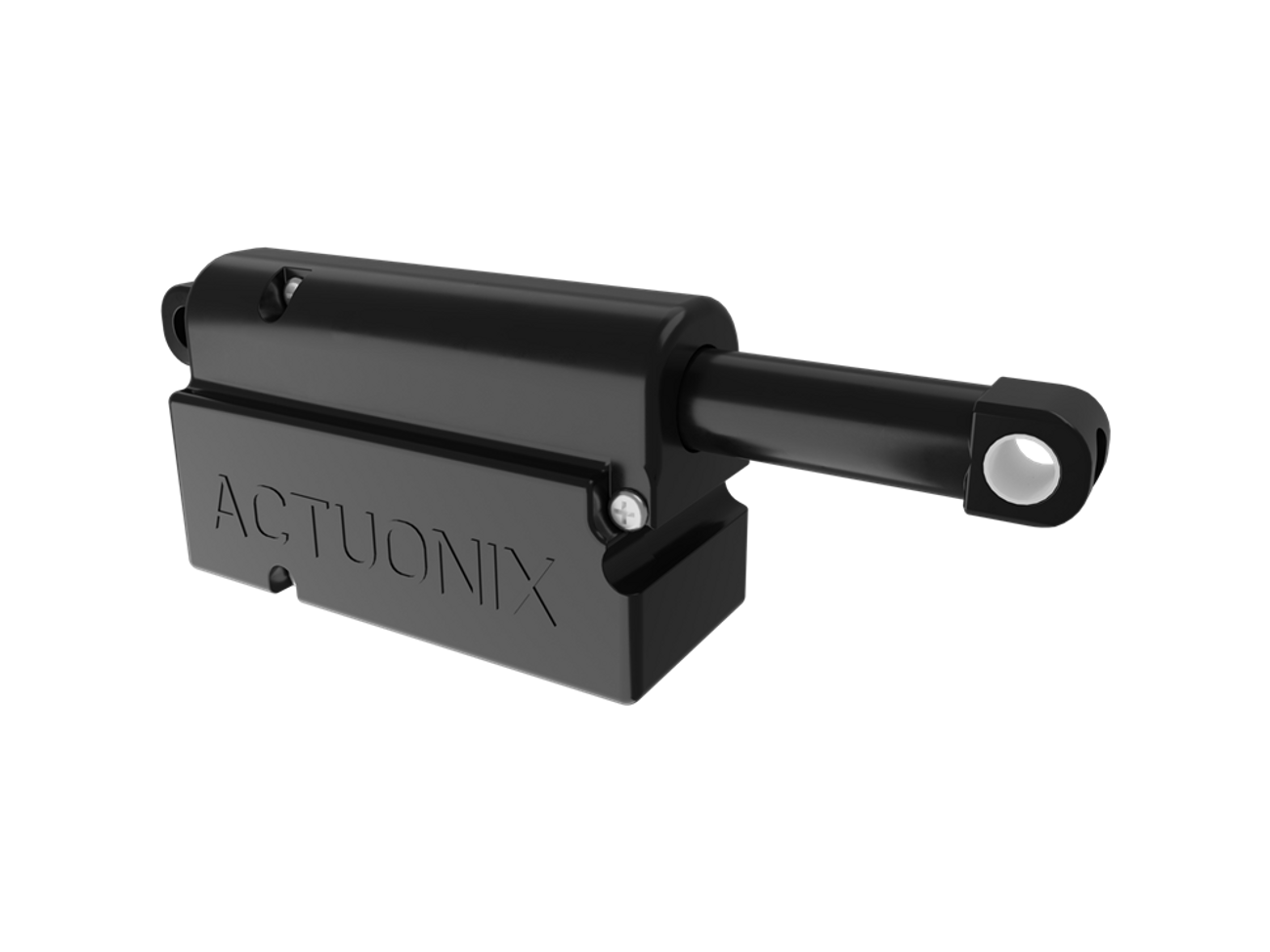

PQ12-P Linear Actuator with Feedback 63:1 12 volts

Overview

Actuonix's unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These tiny linear actuators are a superior alternative to designing your own push/pull mechanisms. Their low cost and easy availability make them attractive to hobbyists and OEM designers alike.

The PQ12 actuators are complete, self contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Driving them couldn’t be easier, simply apply a DC voltage to extend the actuator, and reverse the polarity to retract it. Several gear ratios and voltage options are available to give you varied speed/force configurations.

Whats in the Box?

Whats in the Box?

Whats included in the box?

• PQ12 Actuator with Feedback
• Mounting Screws and Nuts, etc.

Downloads

• PQ12 Datasheet
• PQ12 3D Model (STP)

SPECIFICATION

Actuator specification

• Manufacturer Part Number
  PQ12-63-12-P
• Peak Power Point
  30N @ 8mm/s
• Peak Efficiency Point
  12N @ 12mm/s
• Max Speed (no load)
  15mm/s
• Max Force (lifted)
  45N
• Back Drive Force (static)
  25N
• Stroke
  20mm
• Mass
  19g
• Position Repeatability
  ±0.1mm
• Max Side Load (extended)
  10N
• Feedback Potentiometer
  5kΩ±50%
• Input Voltage
  12V
• Stall Current
  210mA @ 12V
• Operating Temperature
  -10°C to +50°C
• Max Duty Cycle
  20%
• Audible Noise
  55dB @ 45cm
• Ingress Protection
  IP-54
• Mechanical Backlash
  0.25 mm
