SKU: TH2184

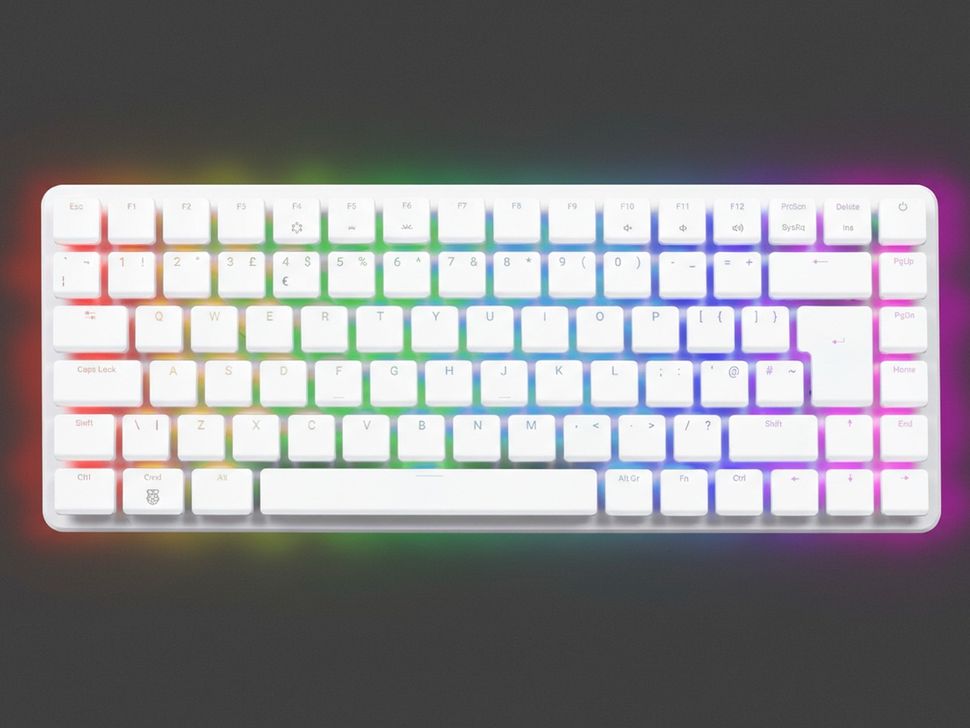

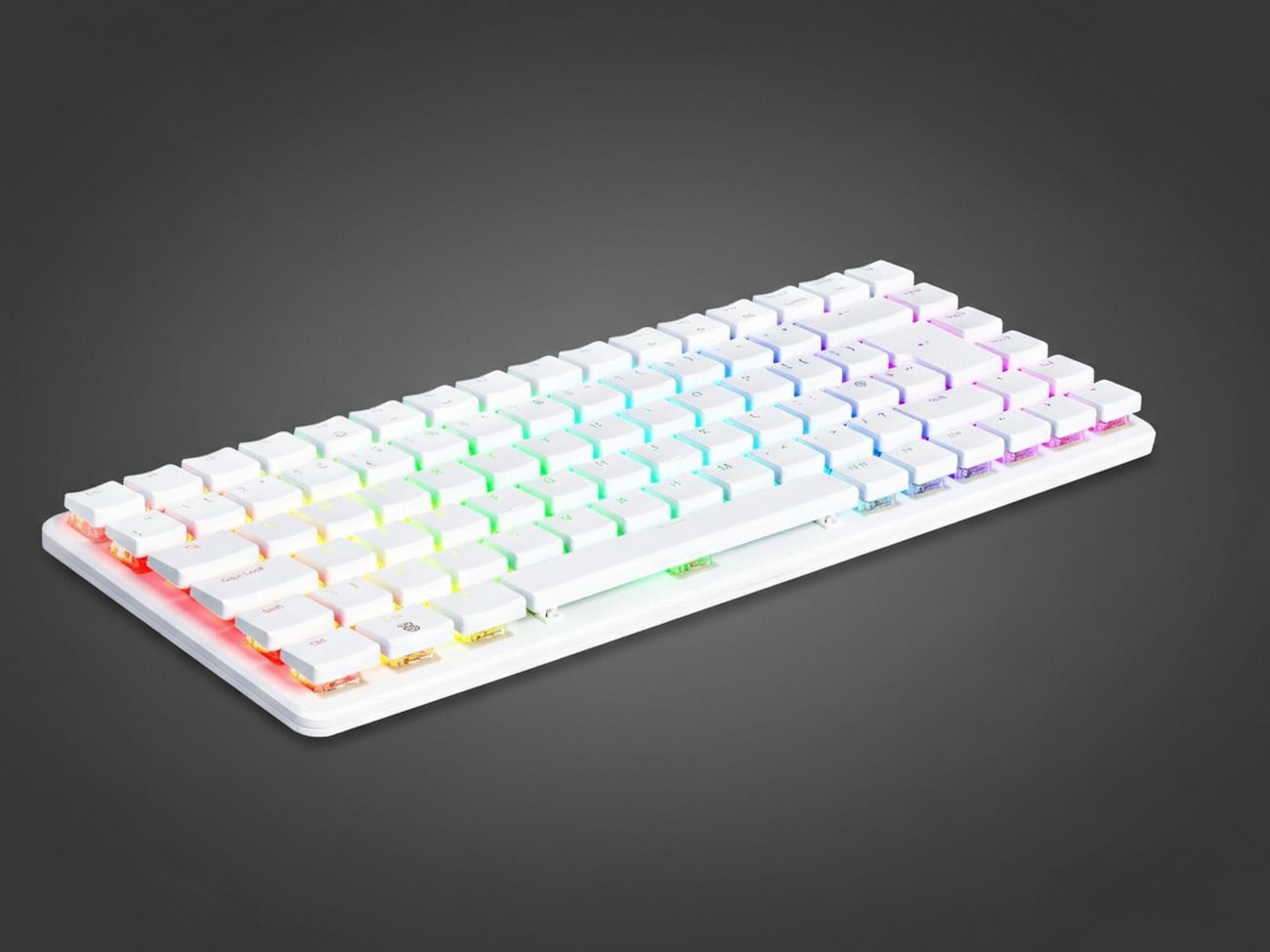

This powerful keyboard computer Raspberry Pi 500+ delivers exceptional performance with its 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 16GB LPDDR4X-4267 SDRAM, integrated one-piece aluminium heatsink, and pre-installed 256GB Raspberry Pi SSD for fast, efficient computing even under demanding workloads.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
This powerful keyboard computer Raspberry Pi 500+ delivers exceptional performance with its 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 16GB LPDDR4X-4267 SDRAM, integrated one-piece aluminium heatsink, and pre-installed 256GB Raspberry Pi SSD for fast, efficient computing even under demanding workloads.

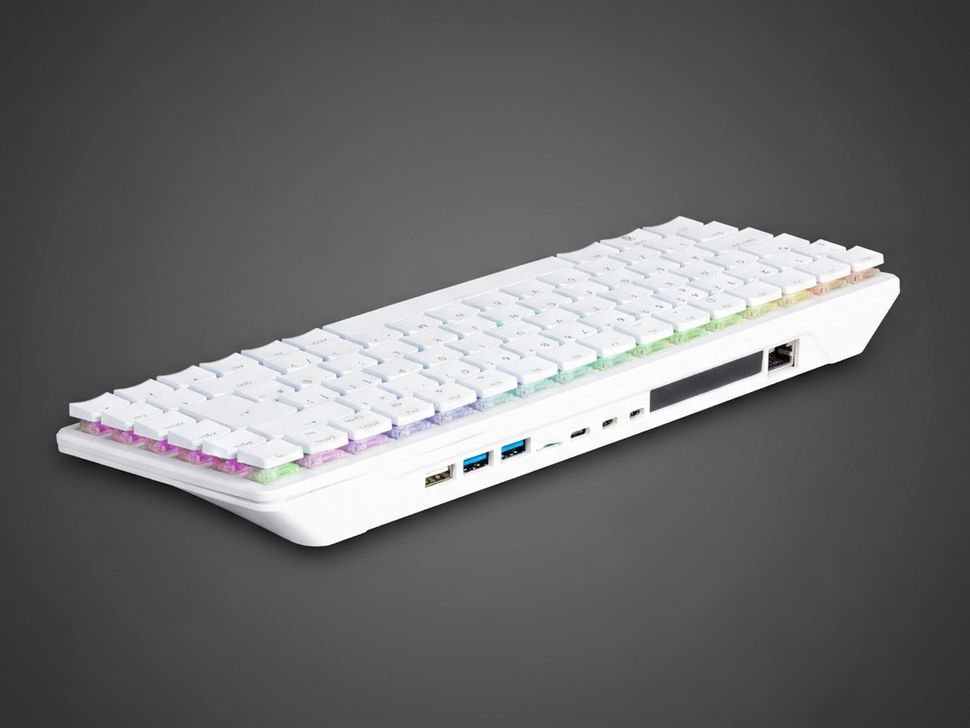

Enjoy stunning visuals on dual 4K displays, powered by OpenGL ES 3.0 graphics and stay connected with dual-band Wi-Fi, Bluetooth 5.0, Gigabit Ethernet, and multiple USB ports.
Technical features and specifications for Raspberry Pi 500+ keyboard computer.
| Processor | 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache |
|---|---|
| Memory | 16GB LPDDR4X-4267 SDRAM |
| Connectivity | Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi®, Bluetooth 5.0, BLE, Gigabit Ethernet, 2 × USB 3.0 ports and 1 × USB 2.0 port |
| GPIO | Horizontal 40-pin GPIO header |
| Display output | 2 × micro HDMI ports (supports up to dual 4Kp60) |
| Multimedia | H.265 (4Kp60 decode); OpenGL ES 3.0 graphics |
| Storage | 256GB Raspberry Pi SSD pre-installed with Raspberry Pi OS; supports M.2 NVMe SSDs up to 2280 (22mm × 80mm) form factor; microSD card slot for operating system and data storage |
| Keyboard | 84-, 85- or 88-key mechanical keyboard (depending on regional variant), Gateron KS-33 Blue low-profile switches |
| Power | 5V DC via USB connector |
| Operating temperature | 0°C to +50°C |
| Dimensions | 312 mm × 123.06 mm × 35.76 mm |
| Production lifetime | Raspberry Pi 500+ will remain in production until at least January 2035 |
