The Compute Module 5 IO Board is an accessory designed to expand the capabilities of the Raspberry Pi Compute Module 5 (CM5).
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
The Compute Module 5 IO Board is an accessory designed to expand the capabilities of the Raspberry Pi Compute Module 5 (CM5).
This CM5 IO Board provides access to the complete range of peripheral interfaces offered by the Compute Module 5, using standard connectors found on the Raspberry Pi 5 (including full-size HDMI instead of micro HDMI).
This board serves as a development platform, as well as an embeded board for integrating into end products.
Compute Module 5 IO Board physical sepcifications, all units in mm.

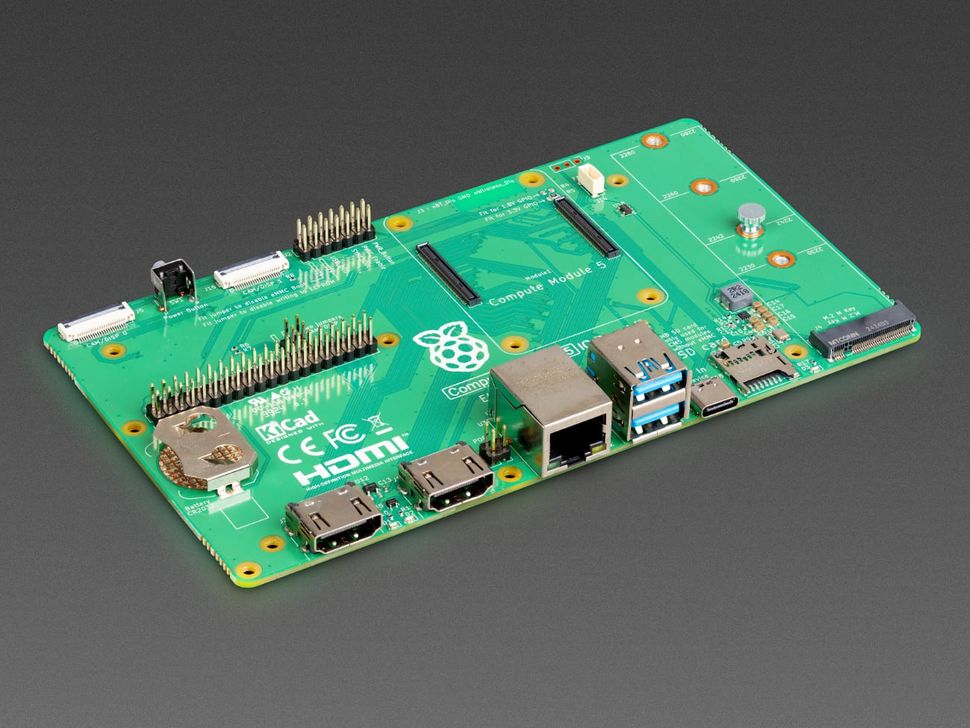

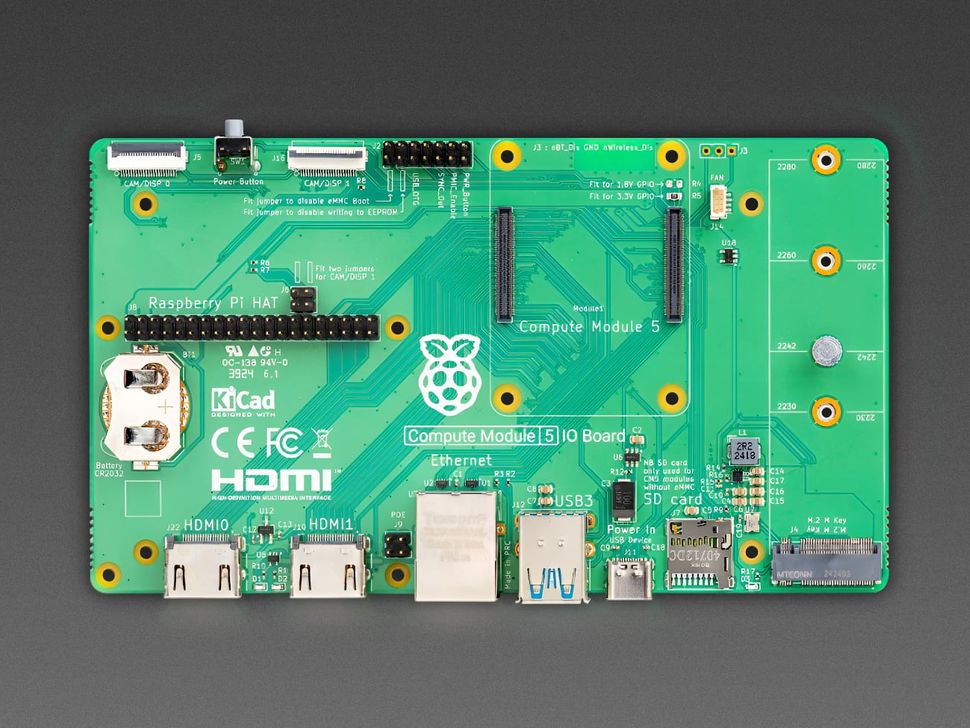

Pinout and specification for Raspberry Pi Compute Module 5 IO Board.
| 0 | CM5 Socket For all variants of Compute Module 4. |
|---|---|
| 1, 2 | HDMI Dual full-size HDMI 2.0 connectors. |
| 3 | PoE Header Power Over Ethernet header for PoE HAT. |
| 4 | Ethernet Gigabit Ethernet socket supporting PoE HAT. |
| 5 | USB On-board USB 3.0 hub with 2x USB 3.0 sockets |
| 6 | USB C Power In Connects to external +5V USB-C PSU |
| 7 | MicroSD Card SD card socket for Compute Module 5 variants without eMMC For use only with CM5 Lite modules. |
| 8 | M.2 M Key M.2 M key PCIe socket |
| 9 | Battery Holder RTC battery socket |
| 10 | GPIO Header 40 Pin GPIO header for accessing the IO pins. |
| 11, 13 | CAM/DISP 0 & CAM/DISP 1 2 × MIPI DSI/CSI-2 FPC connectors (22-pin 0.5 mm pitch cable) |
| 12 | Power Button Power button to wake and shut down Compute Module 5 |
| 15 | Fan Connector 4-pin fan connector with PWM drive and tacho output. |
