Overview
The SpeedyBee Bee25 Frame is a high-performance 2.5-inch cinewhoop drone frame designed for FPV. With a 120mm wheelbase, this frame is built to support advanced aerial maneuvers while maintaining stability. It features a 2mm carbon plate thickness, ensuring strength and durability during flights.
Designed for seamless camera integration, the Bee25 Frame supports 19mm and 20mm camera mounting distances, allowing for compatibility with various FPV cameras. The electronic equipment mounting height is 18mm, providing enough space for internal components. It also includes 25.5x25.5mm stack mounting holes, offering compatibility with common flight controllers and ESCs.
This frame is optimized for O3 Air Unit, Link, TX800, and TXULTRA VTX systems. However, except for the O3 Air Unit, other modules require an additional 3D-printed part for proper installation. It accommodates 2.5-inch propellers and supports 9*9mm motor mounting holes, making it adaptable to a range of FPV drone motors.
Weighing approximately 68±2g, the SpeedyBee Bee25 Frame is lightweight yet robust, striking a balance between agility and endurance. It is recommended to pair with 1404, 1504, or 1505 motors for optimal performance. The suggested KV ratings are 4S (4300-4800KV) and 6S (2350-2900KV), depending on the battery configuration.
For extended flight times and balanced power, it is compatible with 4S 650-1100mAh and 6S 650-850mAh batteries.
With its integrated protection ring, efficient airflow cooling system, and modular build for easy maintenance, the SpeedyBee Bee25 Frame is an excellent choice for FPV drone pilots to have a reliable and customizable cinewhoop setup.
Specification
Technical specifications for SpeedyBee Bee25 Frame
| Specification | Details |
|---|---|
| Product Name | SpeedyBee Bee25 Frame |
| Wheelbase | 120mm |
| Carbon Plate Thickness | 2mm |
| Camera Mounting Distance | 19/20mm |
| Mounting Height of Electronic Equipment | 18mm |
| Stack Mounting Holes | 25.5*25.5mm |
| Compatible VTX | O3 Air Unit / Link / TX800 / TXULTRA (Except for O3, other modules require additional 3D printed part.) |
| Propeller Size | 2.5 inch |
| Motor Mounting Holes | 9*9mm |
| Weight | 68±2g |
| Recommended Motor | 1404 / 1504 / 1505 |
| Recommended KV | 4S 4300-4800KV 6S 2350-2900KV |
| Recommended Battery | 4S 650-1100mAh 6S 650-850mAh |
 |
|

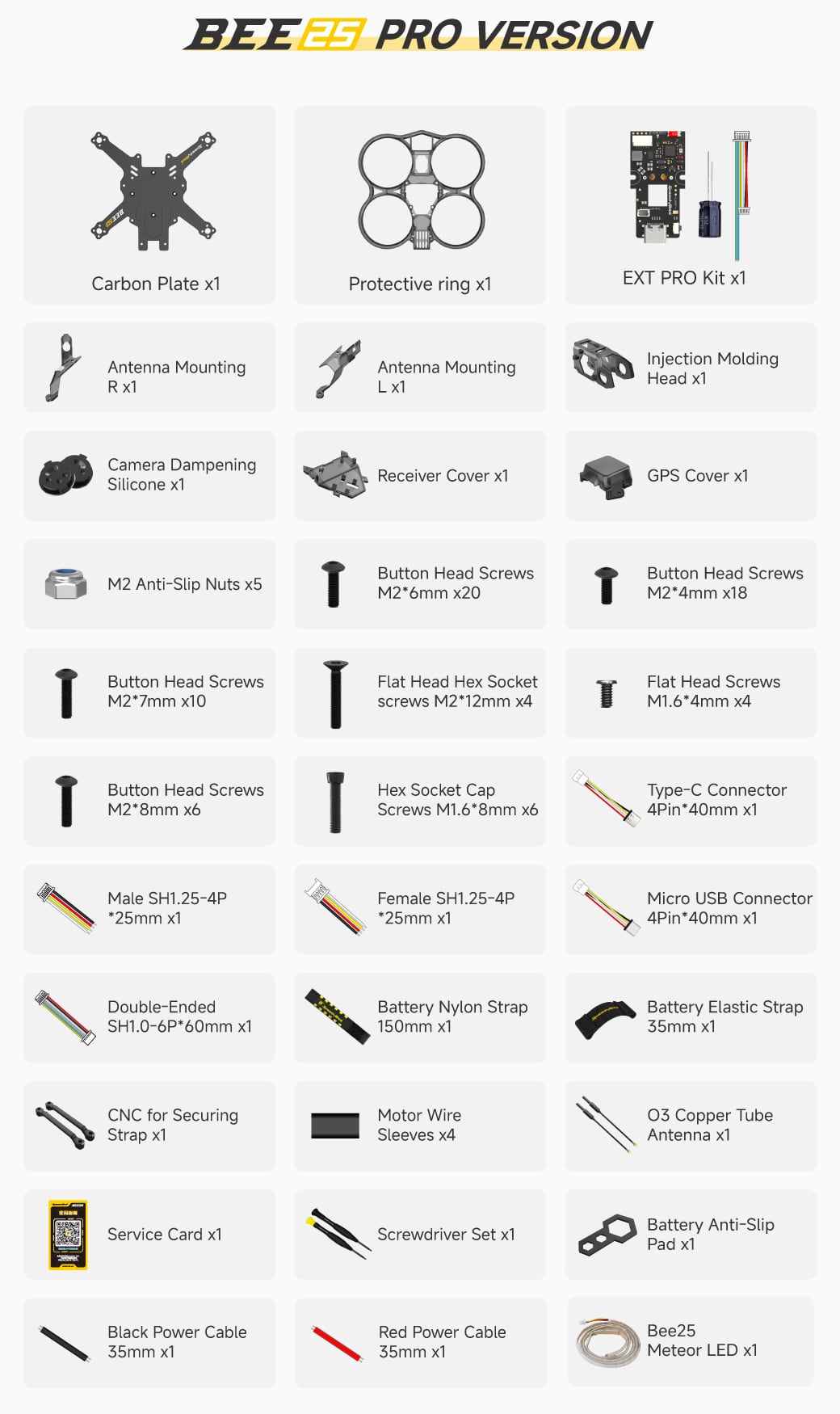

What's in the Box?
List of items included in the box as per model.
