SKU: TH1337

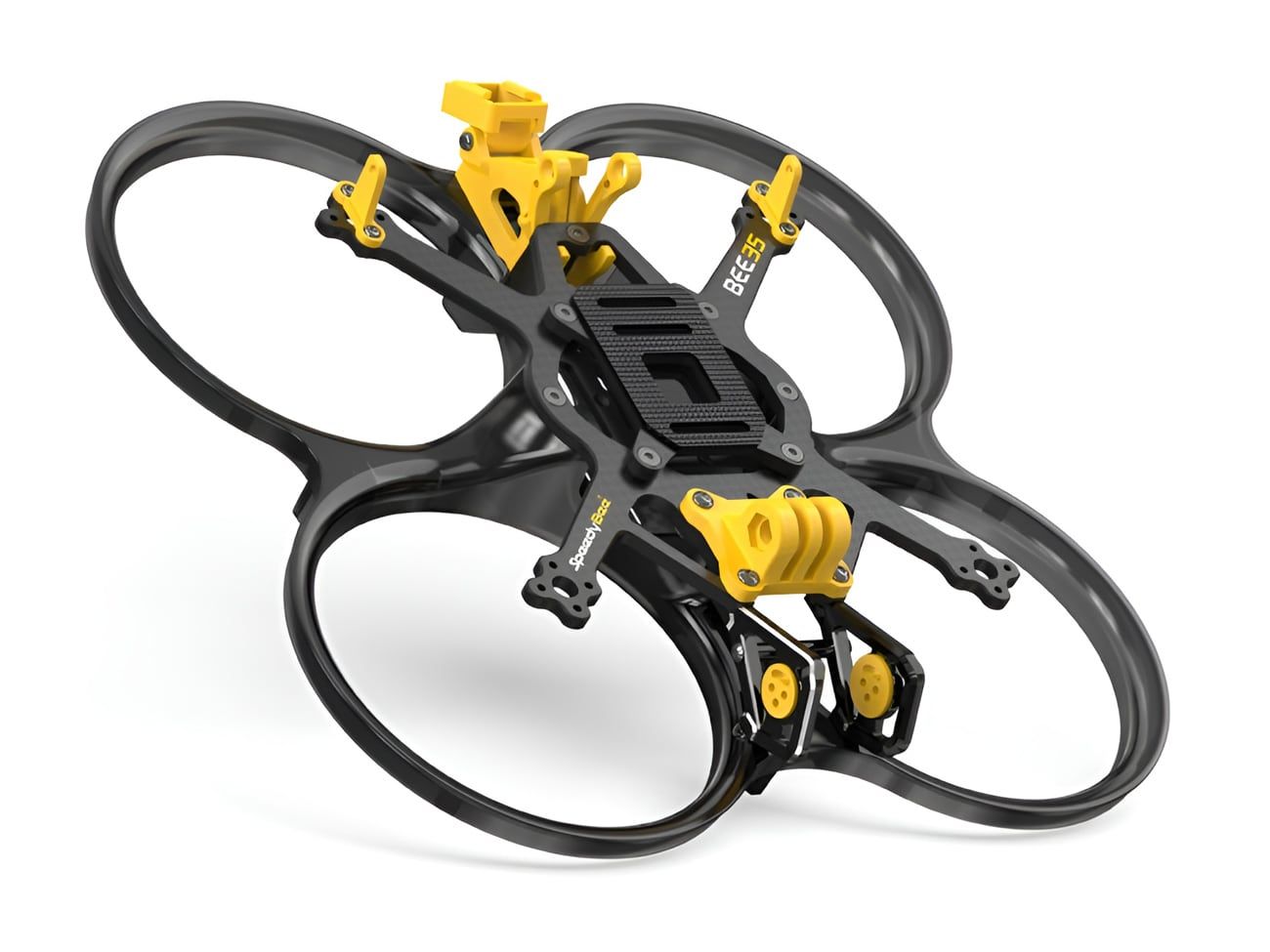

The SpeedyBee Bee35 3.5-inch Frame is a high-performance cinewhoop frame designed to meet the needs of FPV flying with durability, stability, and flexibility. Featuring an aerospace-grade aluminum front plate, the frame ensures superior protection for the camera lens and incorporates silicone damping material to minimize vibrations, delivering smooth and stable footage without the "jelly" effect.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
The SpeedyBee Bee35 3.5-inch Frame is a high-performance cinewhoop frame designed to meet the needs of FPV flying with durability, stability, and flexibility. Featuring an aerospace-grade aluminum front plate, the frame ensures superior protection for the camera lens and incorporates silicone damping material to minimize vibrations, delivering smooth and stable footage without the "jelly" effect.
The Bee35 supports a wide range of flight controllers with mounting patterns supporting 20x20mm, 25.5x25.5mm, and 30.5x30.5mm, making it compatible with various flight stacks and AIO boards. It offers flexible battery mounting options, allowing both horizontal and vertical strap alignments for secure and balanced attachment. The frame also features durable injection-molded protective ducts with built-in grooves for LED strip installation, enabling pilots to customize their drones aesthetically.
The frame has a 153mm wheelbase, with a top plate thickness of 3.5mm and a bottom plate thickness of 2mm. It supports camera mounting distances of 19mm or 20mm and an ESC/motor mounting height of 24mm. The frame accommodates propellers up to 90mm and motors with a 12x12mm mounting pattern. With a lightweight design, it weighs 138g, including 15g for the CNC heat sink and 28g for the camera gimbal. Recommended motors include 1806, 2004, and 2006, with KV ratings of 2500-3500KV for 4S batteries and 1800-2300KV for 6S batteries. It works best with 900mAh to 1500mAh batteries for both 4S and 6S configurations.
The SpeedyBee Bee35 3.5-inch Frame is perfect for pilots looking to build a robust cinewhoop capable of delivering exceptional flight performance and stunning aerial footage.
Technical specifications for SpeedyBee Bee35 3.5 inch Frame.
| Specification | Details |
|---|---|
| Wheelbase | 153mm |
| Top Plate Thickness | 3.5mm |
| Bottom Plate Thickness | 2mm |
| Camera Mounting Distance | 19/20mm |
| ESC/Motor Mounting Height | 24mm |
| Flight Stack Mounting Holes | 20 x 20mm 25.5 x 25.5mm 30.5 x 30.5mm |
| VTX Mounting Holes | 20 x 20mm 25.5 x 25.5mm |
| Propeller Size | 90mm |
| Recommended Motor | 1806/ 2004/ 2006 |
| Recommended KV | 4S/2500-3500KV 6S/1800-2300KV |
| Recommended Battery | 900-1500mAh 4S/6S |
| Motor Mounting Holes | 12 x 12mm |
| Frame Weight | 138g |
| CNC Heat Sink Weight | 15g |
| Camera Gimbal Weight | 28g |
 |
|
List of items included in the box as per model.
