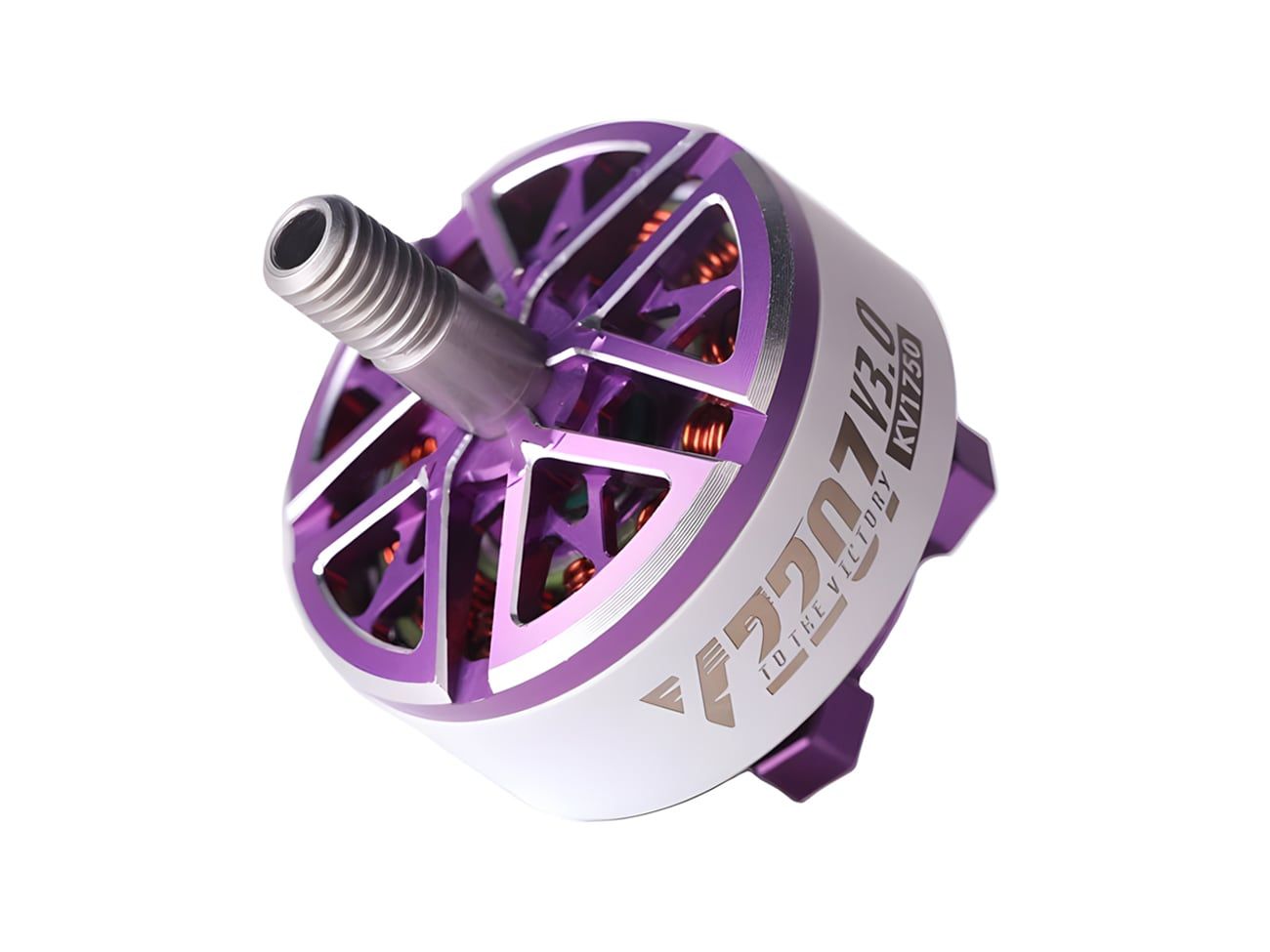

T-Motor Velox V2207 V3 FPV Brushless Motor

Overview

The T-MOTOR V2207 Velox V3 FPV Brushless Motor is designed for 5-inch high-performance racing and freestyle drones. With a robust 12N14P configuration and a 2207 stator size, this motor delivers excellent power efficiency, durability, and smooth performance.

It features a 4mm inner shaft diameter and a 5mm outer shaft diameter, ensuring reliable strength under high-speed operations.

The motor is available in multiple KV variants to offer different flight styles:

• 1500KV (supports 8S LiPo)
  Ideal for long-range efficiency with a max power of 1915.1W and a peak current of 33.3A.
• 1750KV (supports 6S LiPo)
  Balanced for racing and freestyle, with a max power of 814.3W and a peak current of 34.6A.
• 1950KV (supports 6S LiPo)
  Offers higher RPM and a max power of 1050.5W, with a peak current of 45.0A.
• 2050KV (supports 6S LiPo)
  Designed for aggressive freestyle flying, providing 1153.4W max power and a peak current of 49.5A.
• 2550KV (supports 4S LiPo)
  Optimized for extreme agility and fast response, with a max power of 642.5W and a peak current of 41.8A.

Each motor comes with 20AWG 150mm leads, making it easy to integrate into various drone builds. The weight varies slightly across models, ranging from 34.6g to 37.3g (including cables).

The idle current at 10V remains efficient, varying from 0.9A to 2.25A depending on the KV rating.

What's in the Box?

Package includes following items

Specification

Tehnical specifications T-Motor Velox V2207 V3 Brushless Motors.

Specification	1500KV	1750KV	1950KV	2050KV	2550KV
Configuration	12N14P	12N14P	12N14P	12N14P	12N14P
Stator Size	2207	2207	2207	2207	2207
Shaft Diameter (IN/OUT)	IN: 4mm OUT: 5mm	IN: 4mm OUT: 5mm	IN: 4mm OUT: 5mm	IN: 4mm OUT: 5mm	IN: 4mm OUT: 5mm
Lead	20# 150mm	20# 150mm	20# 150mm	20# 150mm	20# 150mm
Weight (Incl. Cable)	34.6g	37.3g	37.1g	36.8g	36.5g
Rated Voltage (Lipo)	8S	6S	6S	6S	4S
Idle Current (10V)	0.9A	1.2A	1.32A	1.66A	2.25A
Max. Power (60s)	1915.1W	814.3W	1050.5W	1153.4W	642.5W
Peak Current (60s)	33.3A	34.6A	45.0A	49.5A	41.8A
