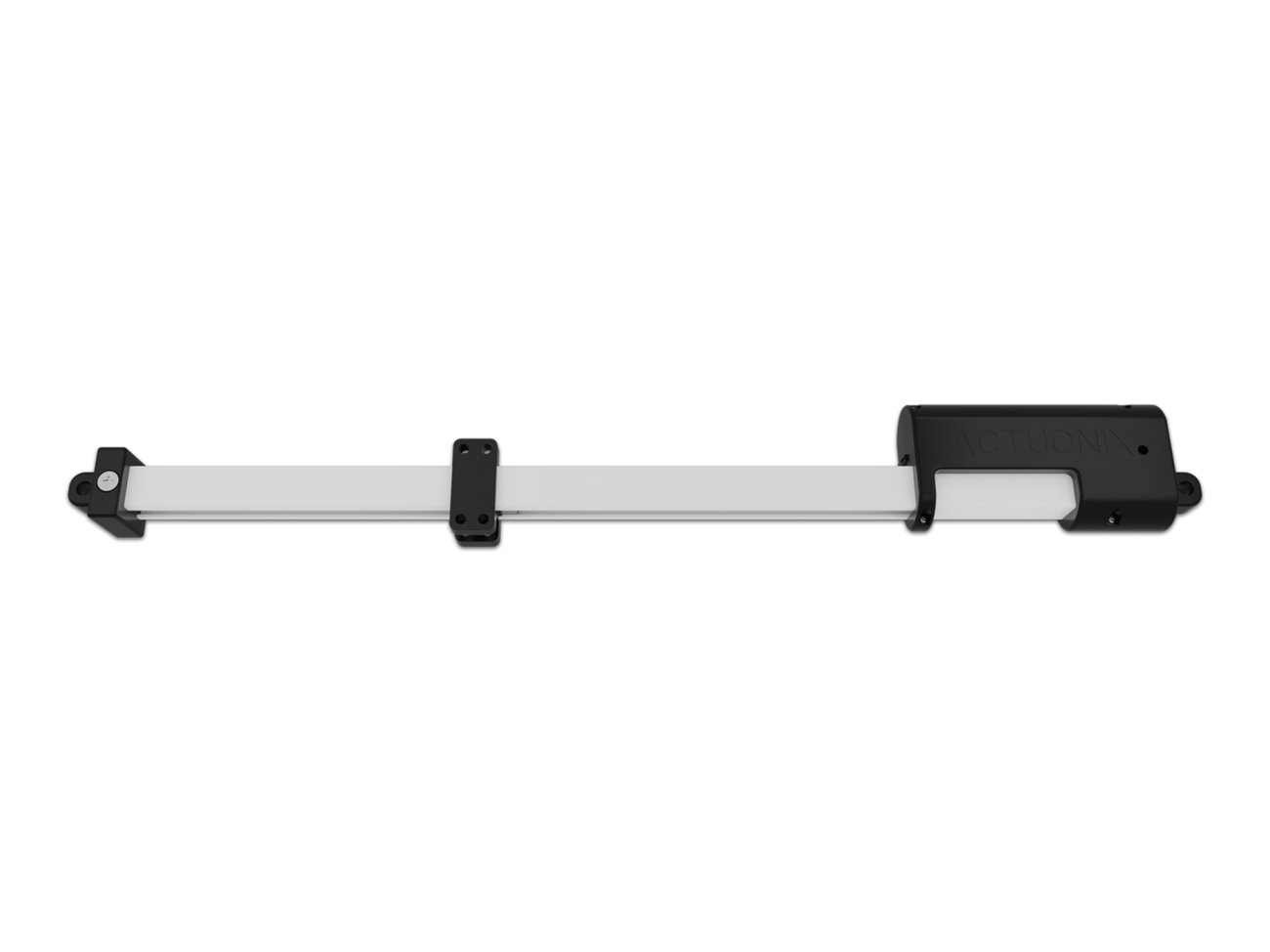

T16-S Mini Track Actuator with Limit Switches 300mm 64:1 12 volts
SKU: TH0007
Backorder₹9,533.22
₹8,079.00 (Ex. of GST)
SKU: TH0011

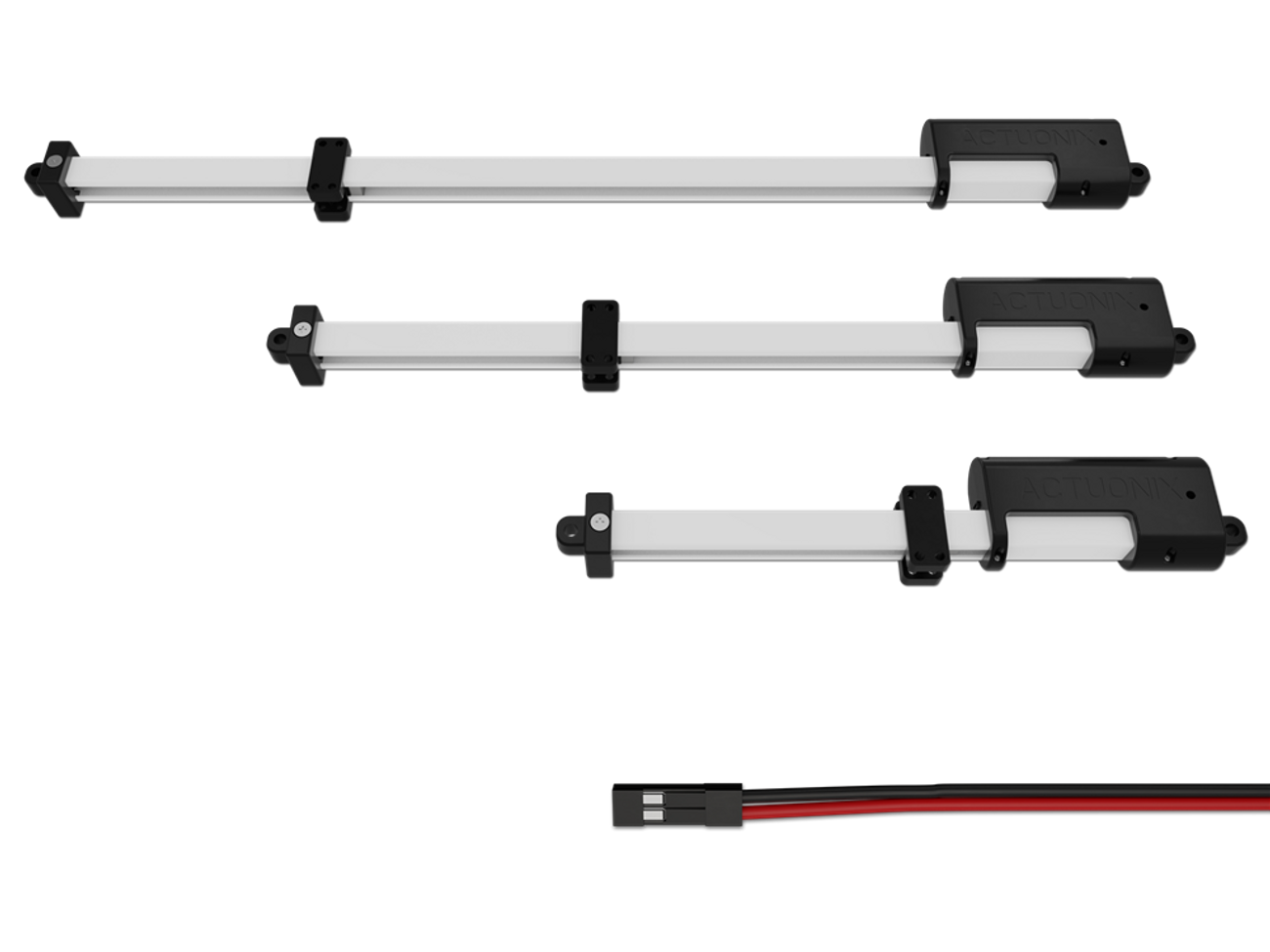

Actuonix Motion Devices unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear stepper actuators are a superior alternative to designing your own push/pull mechanisms. The T16 stepper actuators are complete, self-contained linear motion devices. Several stroke length options allow these to fit a wide variety of applications. The T16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations.
| Qty | Price | Save |
|---|---|---|
| 2 - 4 | ₹9,247.22 | 3% |
| 5 - 9 | ₹9,056.56 | 5% |
| 10+ | ₹8,770.56 | 8% |
Actuonix Motion Devices unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear stepper actuators are a superior alternative to designing your own push/pull mechanisms. The T16 stepper actuators are complete, self-contained linear motion devices. Several stroke length options allow these to fit a wide variety of applications. The T16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations.
The T16 is designed to push or pull a load along its full stroke length. The speed of travel is determined by the load and mount angle (See the Load Curves). Actuator speed can be reduced by lowering the drive voltage. When power is removed the actuator will hold its position, unless the applied load exceeds the back drive force. Repeated stalling or stalling for more than a few seconds will shorten the life of the actuator significantly. Actuators should be tested in each specific application to determine their effective life under those loading conditions and environment.

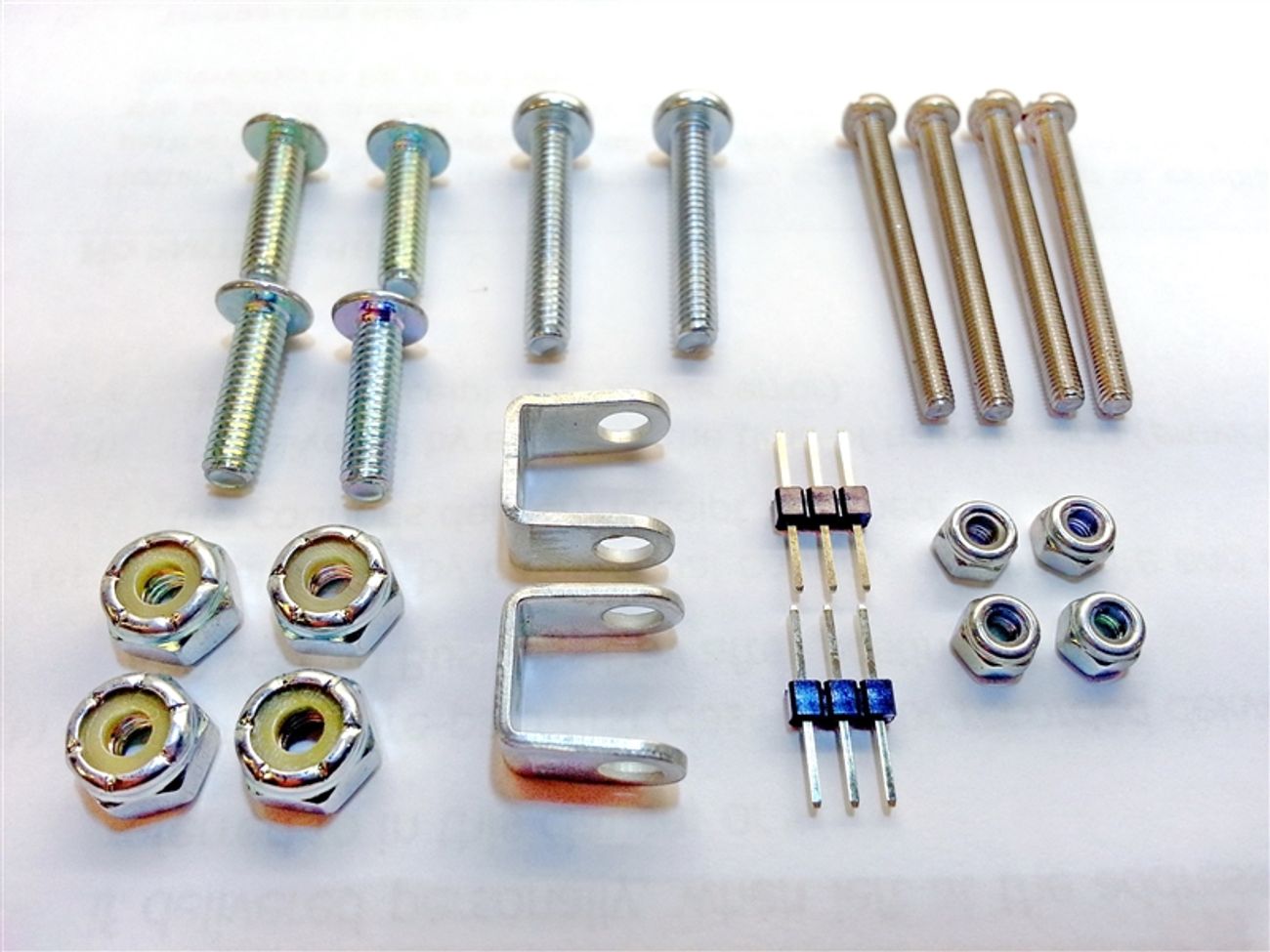

Whats included in the box?
Actuator specification
Actuonix Motion Devices build micro linear actuators and linear servos. Based in Victoria, BC, Canada, they provide innovative and economical micro motion solutions for the growing needs of several markets including robotics, aerospace, automotive, medical and radio control. Actuonix is a leading manufacturer and innovator in the micro motion marketplace. They offer the most affordable, high quality micro linear actuators.
Know more about Actuonix
Logo and Trademark belong to Actuonix
