SKU: TH1881
Designed for makers, small businesses, and anyone who prefers accuracy, consistency, and real cutting capability.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
Designed for makers, small businesses, and anyone who prefers accuracy, consistency, and real cutting capability.
Powered by a true 10W optical diode laser and engineered with a rigid aluminum frame, it delivers clean engravings, confident cuts, and dependable performance—project after project.
Create more. Faster. Cleaner.
Because accuracy isn’t optional—it’s essential.

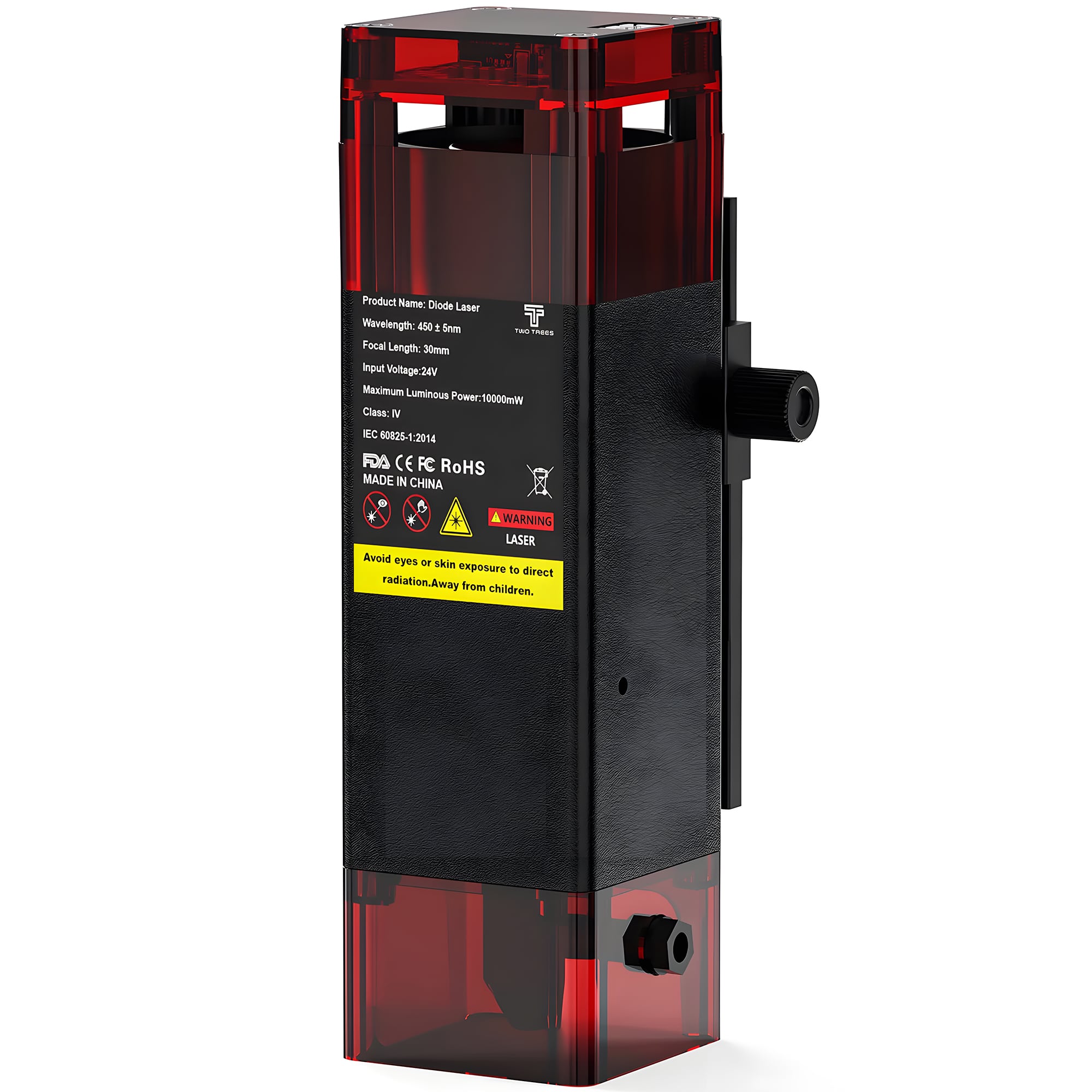

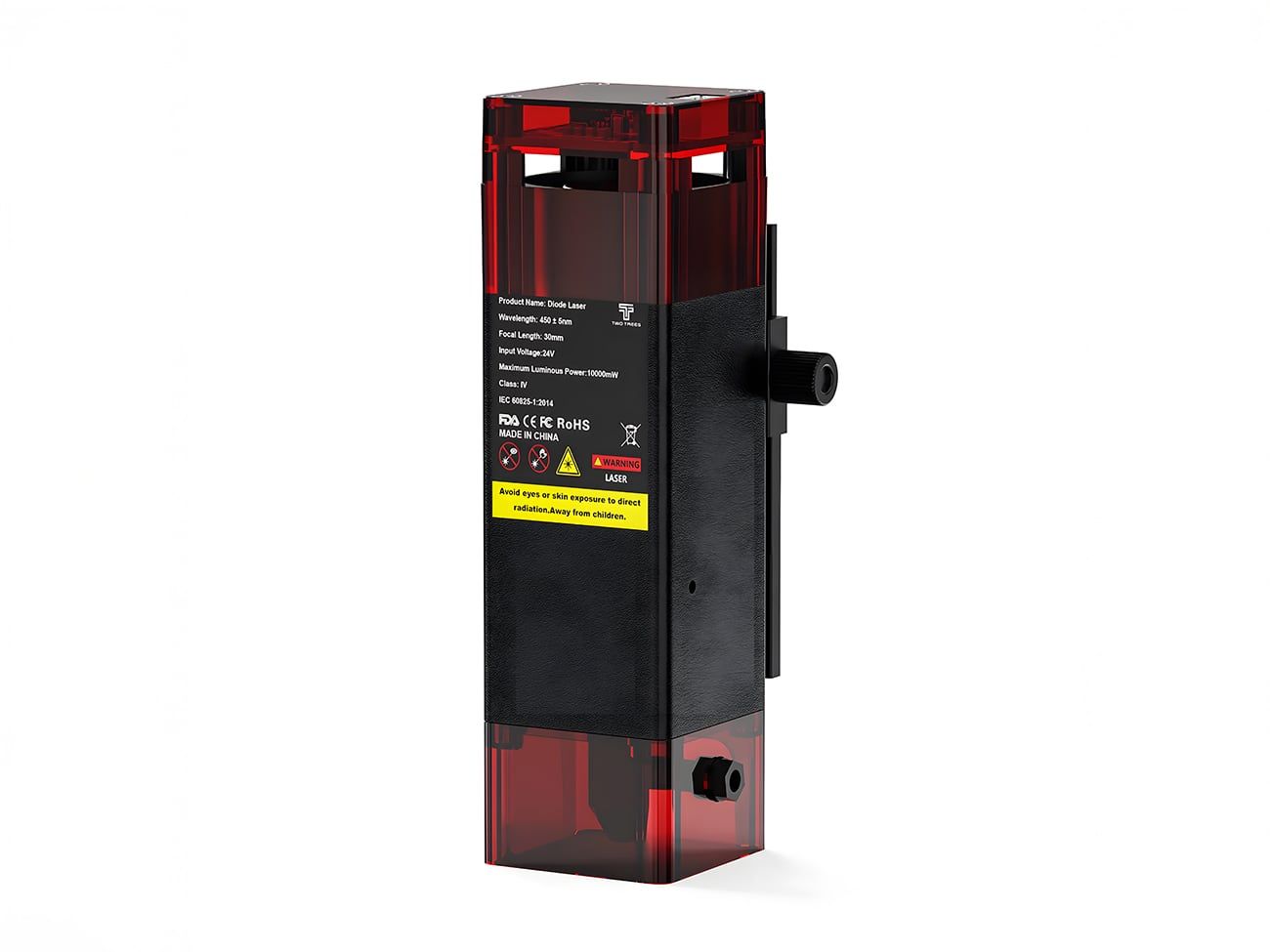

Using LD+FAC+C-Lens compression spot technology.
10W Diode Laser Power.
Connects with Computer via USB
Connects with Wifi & Bluetooth
Supports MicroSD Card
Compatible with Windows PC, Mac & Mobile devices
High-Power Laser. Clean Cuts. Sharp Details.
The TTS-10 Pro uses multi-lens compressed laser shaping combined with LD + FAC + C-Lens technology to produce a refined laser spot as small as 0.069 mm.
The result is higher contrast, finer lines, and noticeably sharper engravings—even on complex artwork.

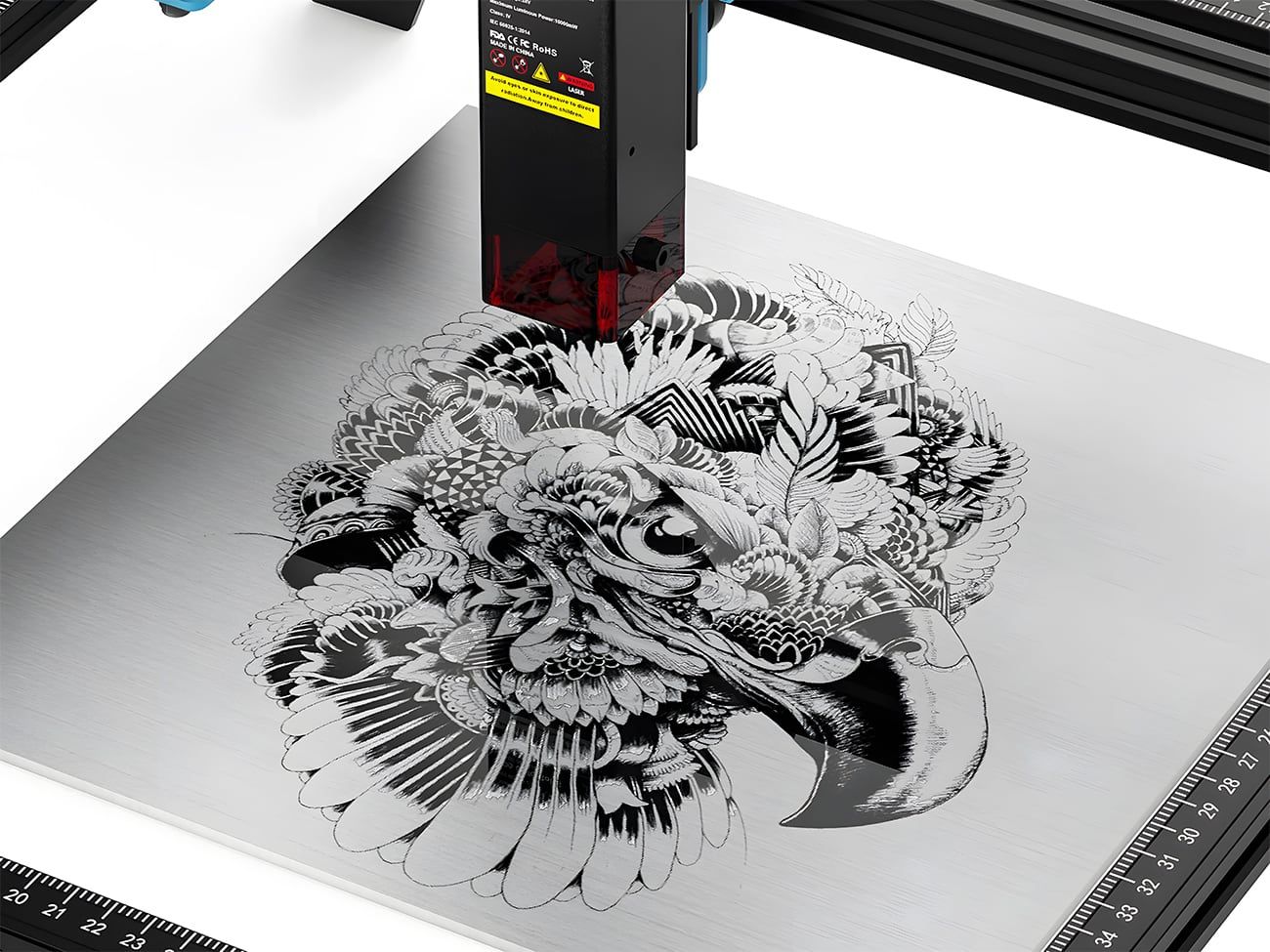

Crisp Lines. Consistent Depth.
Fine text remains readable. Edges stay sharp. Engravings look professional—every time.
Because details define quality.
Up your laser engraving game with these addons.
Extend the X and Y axes, from 300 × 300 mm to a generous 600 × 600 mm.

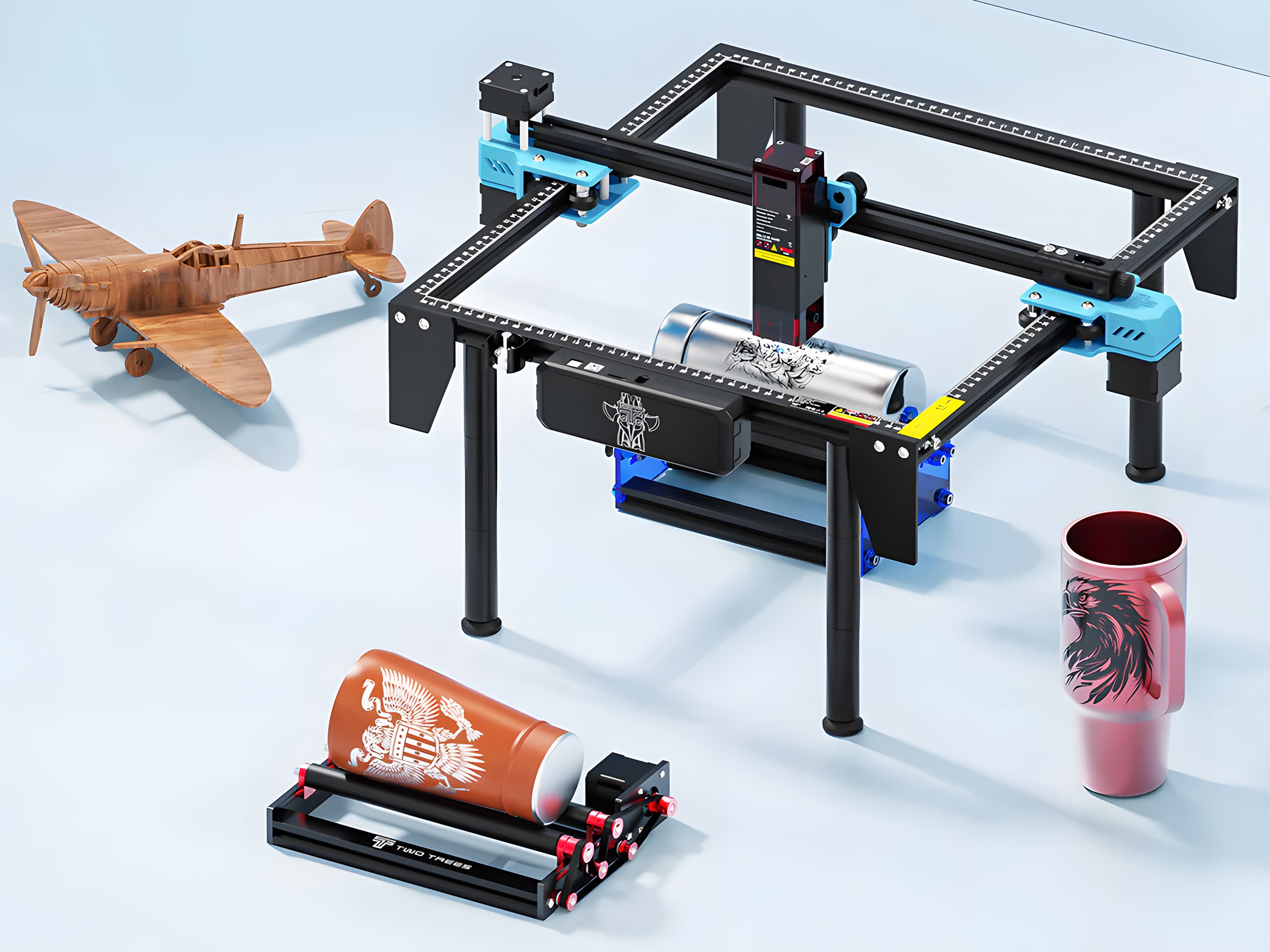

With a rotating axis, it can engrave small,medium, and large cylinders 360°.
Technical details for TTS-10 Pro
| Aluminum + Injection Molded Parts Main Body Material |

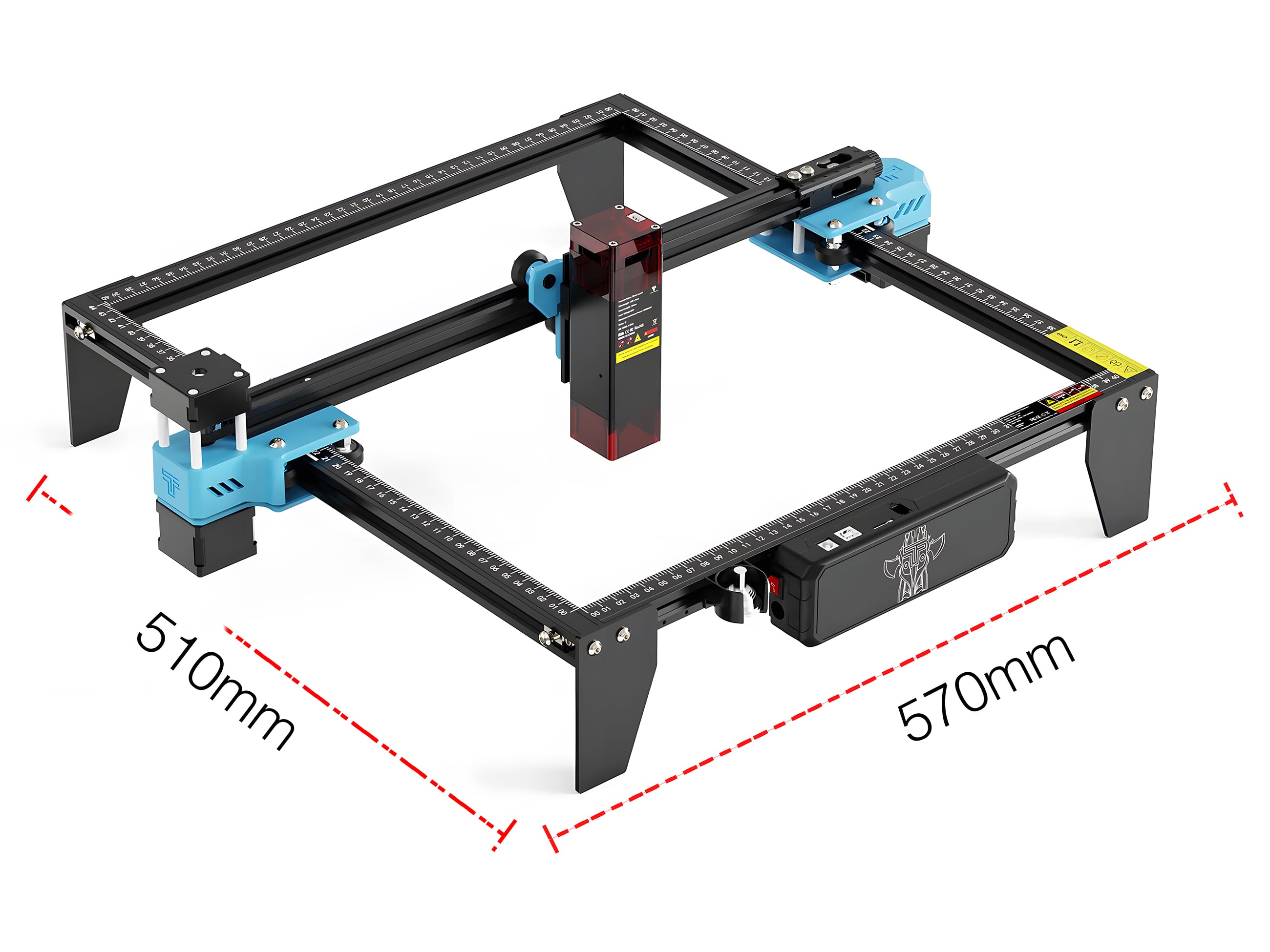

570 × 510 × 150 mm Machine Dimensions |
| 3.2 kg Machine Weight |
3.89 kg Gross Weight |
| 510 × 180 × 180 mm Packaging Dimensions |
300 × 300 mm Engraving Area |
| 10 W Laser Power |
55 W Overall Power |
| 30000 mm/min Engraving Speed |
100 ±0.05 mm Engraving Accuracy |
| 0.069 × 0.157 mm Spot Size |
Wood, Plastic, Paper, Leather, Stainless Steel Supported Materials |
| 100–240V AC, 50/60 Hz Input Voltage |
DC 24V / 4A Output Voltage |
List of compatible materials for TTS-10 Pro.
| Material | TTS-55 Pro (40W Electrical / 5.5W Optical) | TTS-10 Pro (80W Electrical / 10W Optical) | ||
|---|---|---|---|---|
| Engraving | Cutting | Engraving | Cutting | |
| Basswood Board | 5mm | 8mm | ||
| Acrylic (Black) | 3mm | 5mm | ||
| Leather | 2mm | 4mm | ||
| Density Board | 1mm | |||
| Bamboo | 3mm | 5mm | ||
| Leaf | ||||
| Soft Magnetic Sheet | 1.5mm | |||
| Food | ||||
| Paper Products | ||||
| Glass (with Colored Paper) | ||||
| Ceramics (Color Paper) | ||||
| PVC / PVB / ABS / Plastic | 2mm | |||
| Rubber Stamp | ||||
| Alumina | ||||
| Stainless Steel | Vague | |||
| Lacquered Metal | Vague | |||
| Cloth | ||||
| Silicone | ||||
Assembly & Installtion videos.
Step by step assembly process.
Step by step installation process.
Step by step installation process.
