Wireless RF Remote Control

Overview

Actuonix's 12V DC wireless RF remote control kit is perfect for remotely controlling linear actuators. This kit is plug and play with our -S series actuators (non stepper) including the PQ12-S (with cable adapter) and is the quickest way to turn your actuator into a remote control actuator. It comes with two-2 button remote controls (up, down) and remote receiver. This wireless remote control kit is very small in size and easy to install and operate. Just connect the receiver to power, plug your "S" series (non-stepper) actuator into the receiver cable and push the remote buttons to operate. This product is perfect for home, hobby or automotive use where wireless DC control is required. Remotes have approx 100M range. Package includes receiver + 2 remotes. These linear actuator controller kits are FCC, CE and RoHS compliant.

Note: This remote control will only work with our 12vdc "S" series limit switched actuators

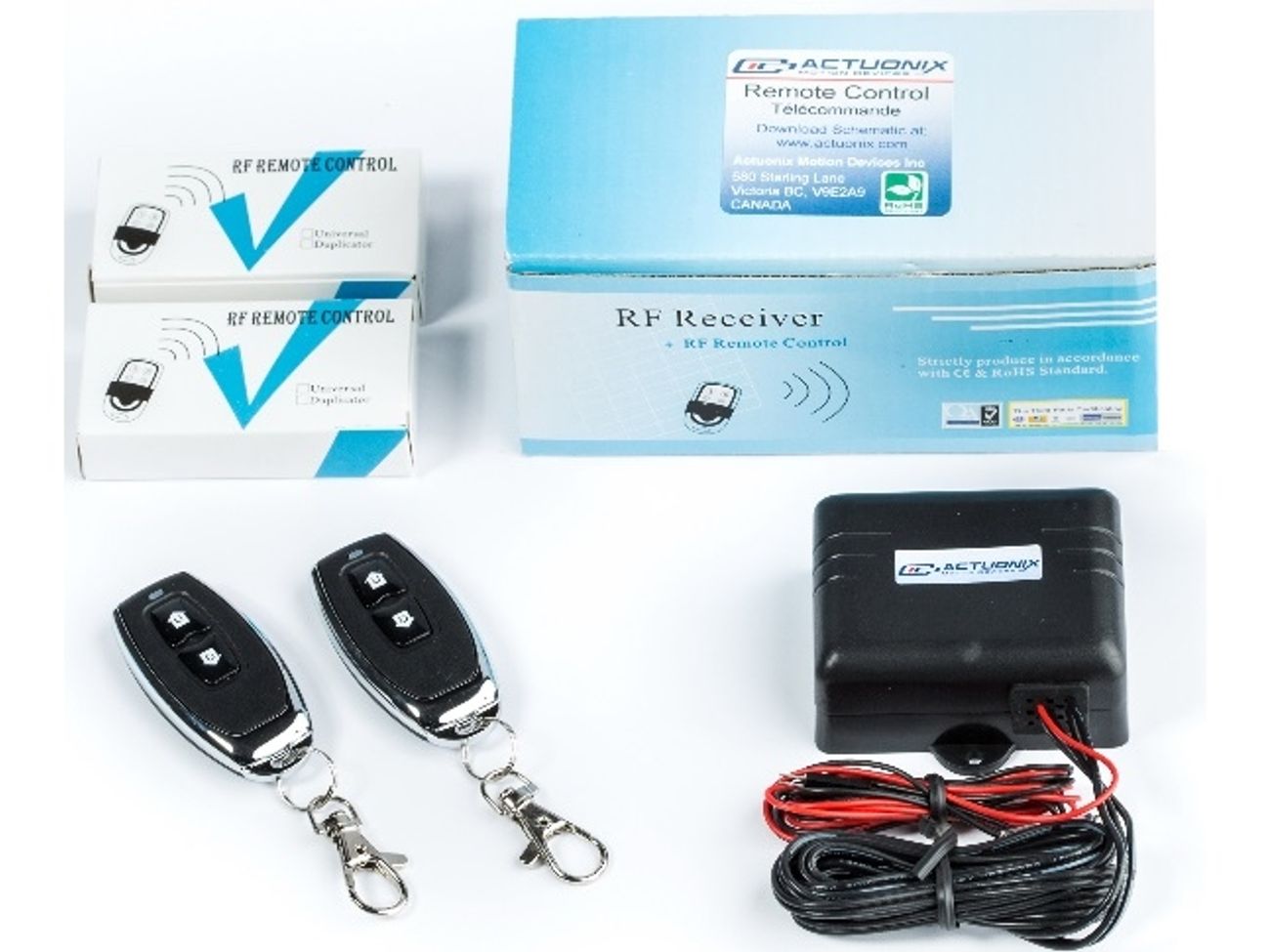

What's in the Box?

Whats included in the box?

• Remote Receiver Unit
• 2 x Button Remote

Downloads

• Remote Control Datasheet

Specifications

Actuator specification

• Manufacturer Part Number
  Remote_Control
• Input Voltage
  12VDC (8V min. 14V max.)
• Switched Current
  6 Amps. Max
• Standby Current
  50mA
• Range
  100 meters
• Compatible Actuators
  L12, L16, P16, T16 –S 12 Volt
