SKU: TH2146

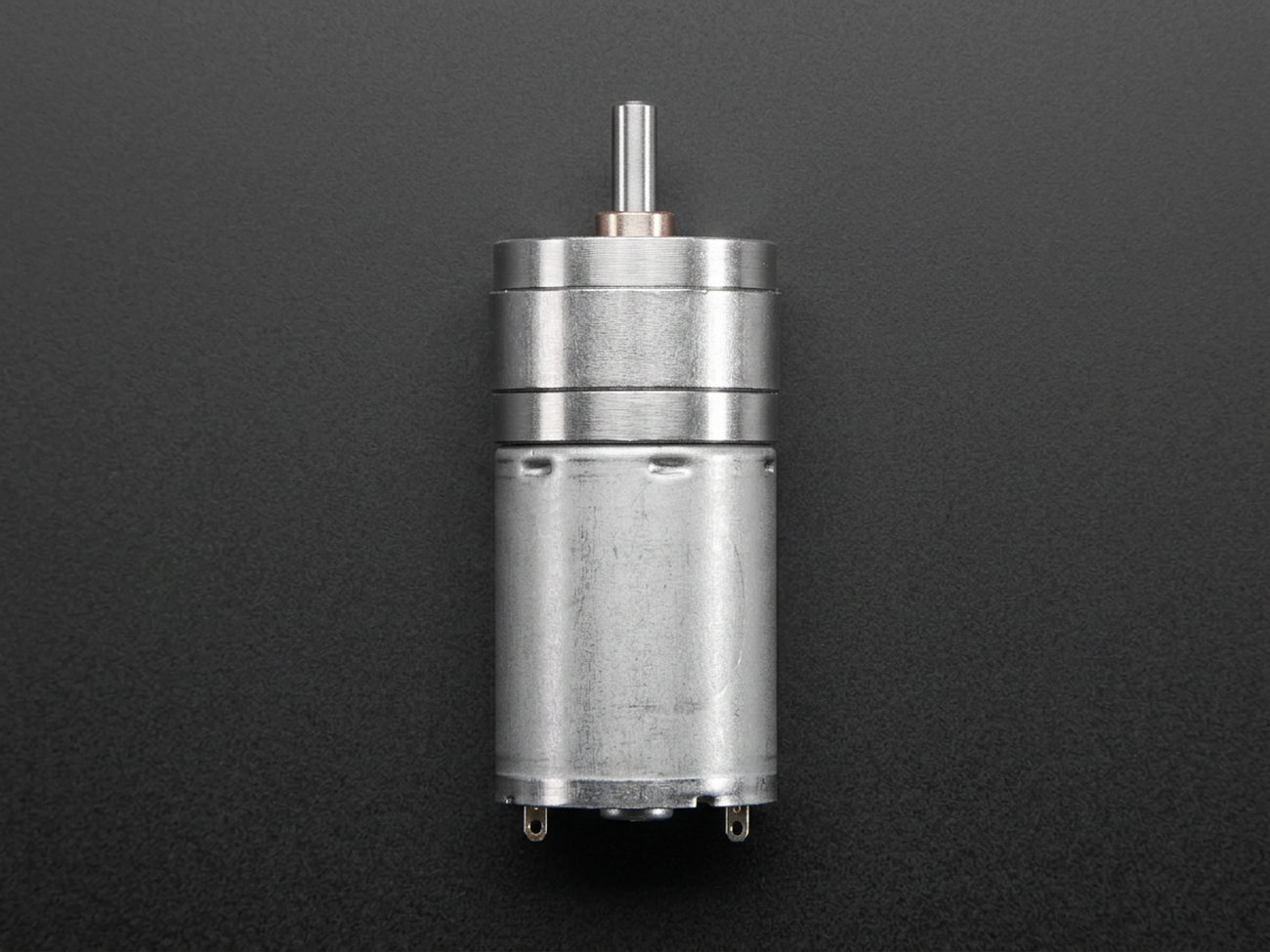

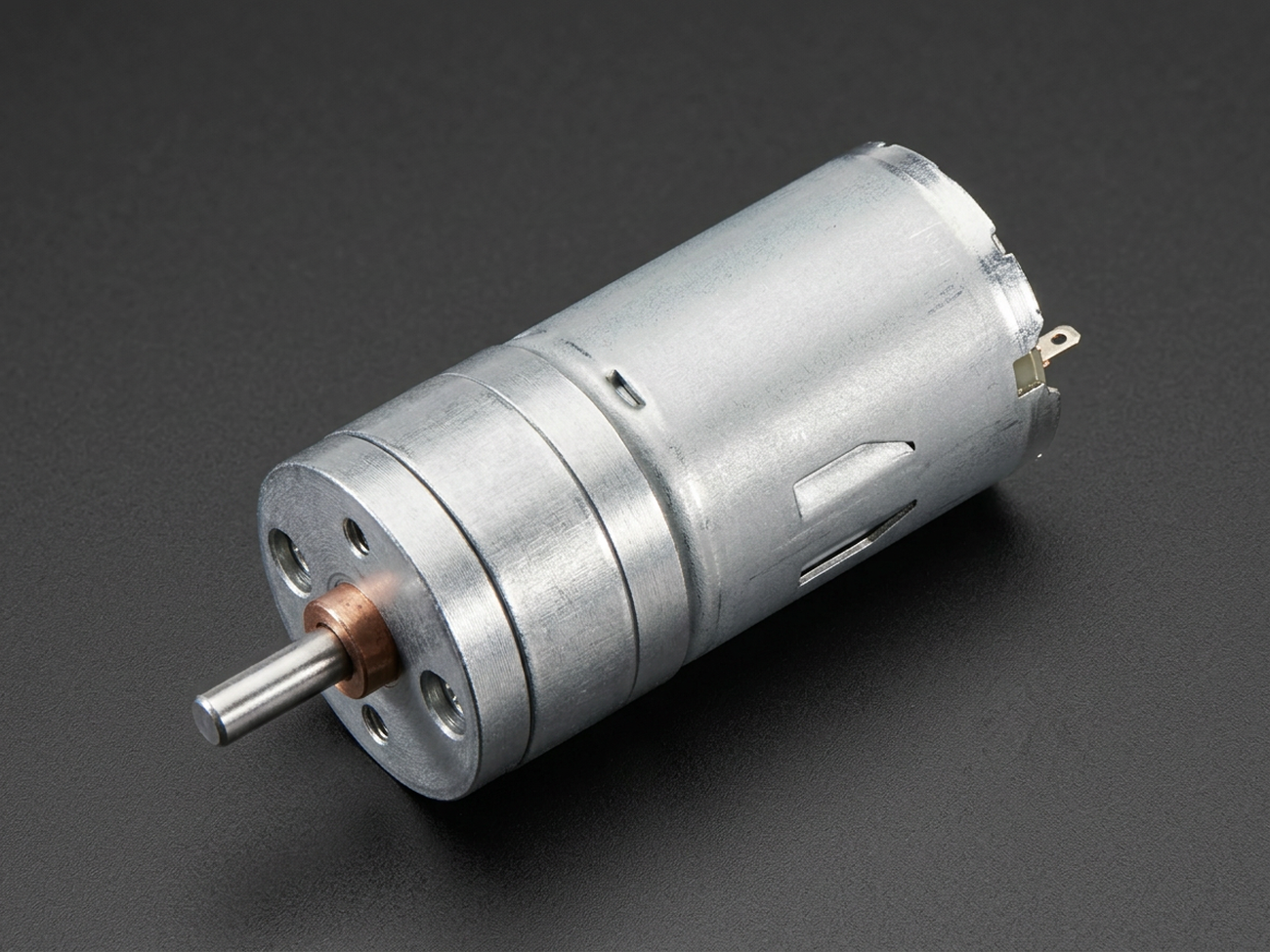

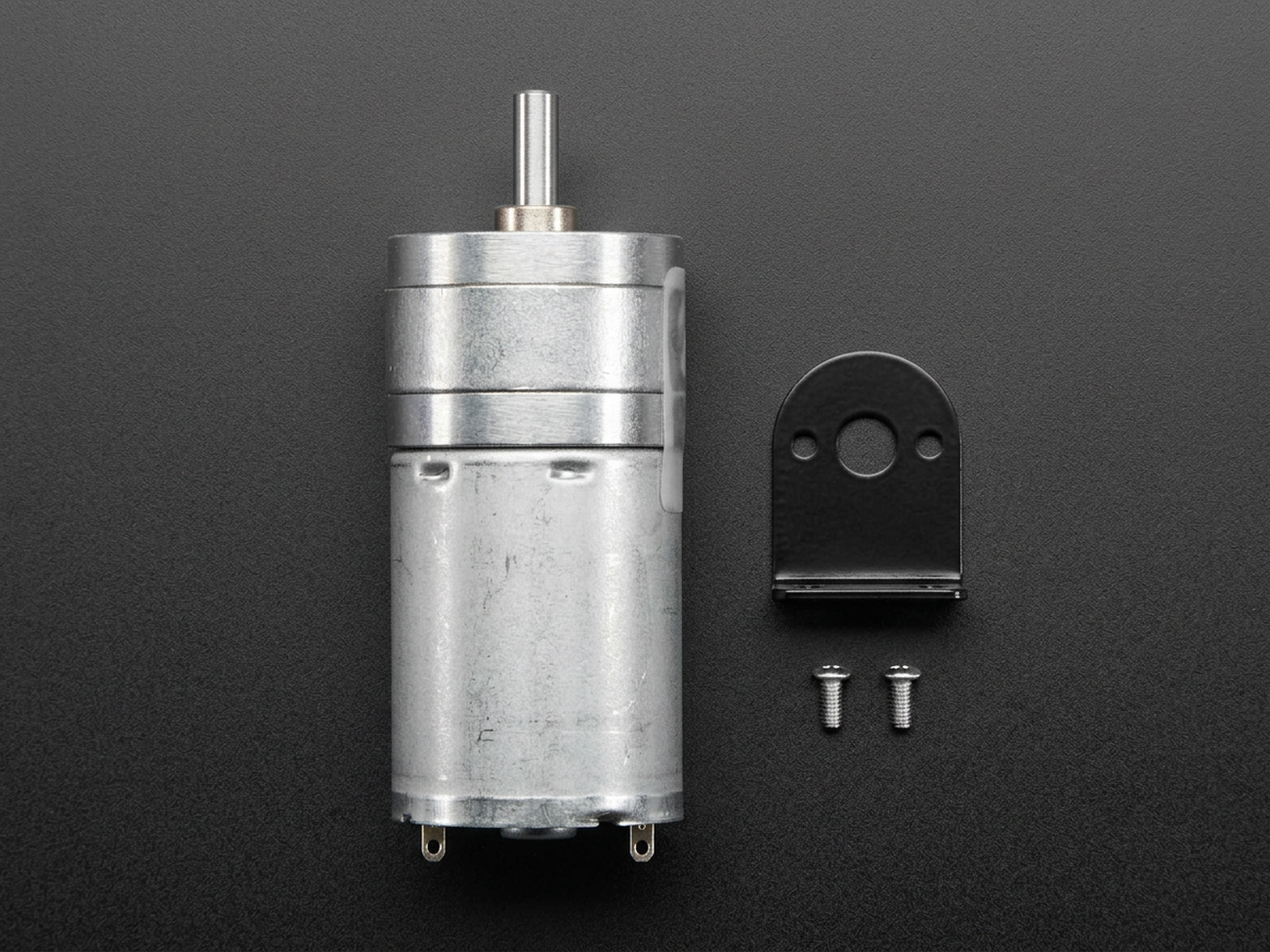

The 12V 620 RPM Brushed DC Geared Motor - GA25 Medium Power is a compact motor for robotics, automation, conveyors, and DIY motion-control systems. With its built-in 9.6:1 gearbox, it delivers a rated speed of 625 RPM and improved torque for reliable medium-power performance.
| Qty | Price | Save |
|---|---|---|
| 4 - 9 | ₹543.51 | 6% |
| 10 - 24 | ₹531.94 | 8% |
| 25+ | ₹520.38 | 10% |
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
12V 620 RPM Brushed DC Geared Motor - GA25 Medium Power is a compact and dependable motor for robotics, automation, conveyors, and DIY motion-control projects. With its built-in gearbox, it delivers a balanced combination of speed, torque, and stable performance, making it a practical choice for medium-duty applications.
Running on 12V DC, this GA25 geared motor offers a rated speed of around 625 RPM with a 9.6:1 reduction ratio for improved torque output. Its 25mm gearbox size, simple brushed DC operation, and support for PWM speed control and reverse rotation make it easy to integrate into custom machines, mobile robots, and electromechanical systems.
If you need a compact 12V geared motor that is easy to use, efficient, and suitable for precise rotational movement, this motor is a solid option for both prototyping and production-oriented builds.
Technical details for 12V 620 RPM Brushed DC Geared Motor - GA25 Medium Power.
| Specification | Details |
|---|---|
| Operating Voltage | 12V DC |
| Motor Type | Brushed DC Motor |
| No-load Speed | 620 RPM |
| Rated Speed | 625 RPM |
| Reduction Ratio | 9.6:1 |
| Rated Torque | 0.3 kgf.cm |
| Stall Torque | 1.2 kgf.cm |
| Rated Current | 0.5A |
| Stall Current | 1.5A |
| Rated Power | 6W |

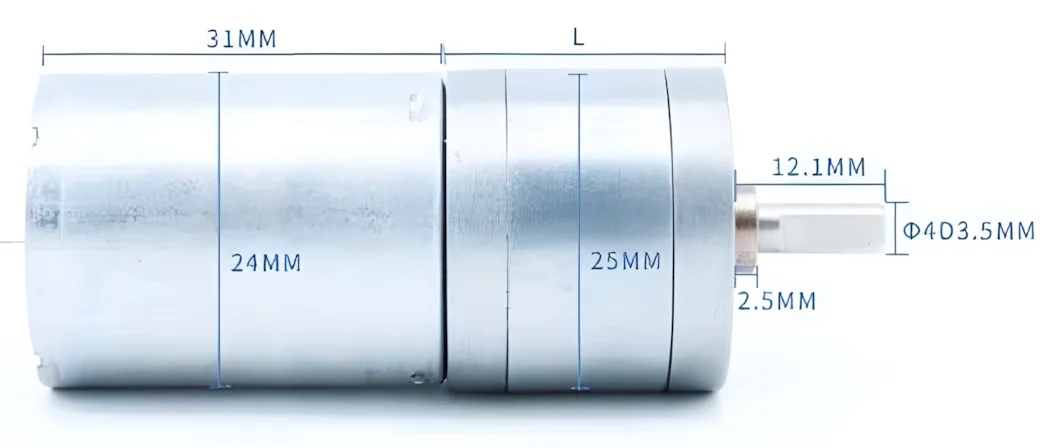

| Model Size | Gearbox 25mm, Motor 31mm |
| Warranty Period | 3 months |
