SKU: TH2144
Compact 24V brushed DC geared motor with 425 RPM no-load speed, 18.8:1 gearbox, 1.3 Kg.cm rated torque, and forward/reverse support for robotics, automation, and small machinery.
| Qty | Price | Save |
|---|---|---|
| 4 - 9 | ₹1,497.42 | 6% |
| 10 - 24 | ₹1,465.56 | 8% |
| 25+ | ₹1,433.70 | 10% |
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.

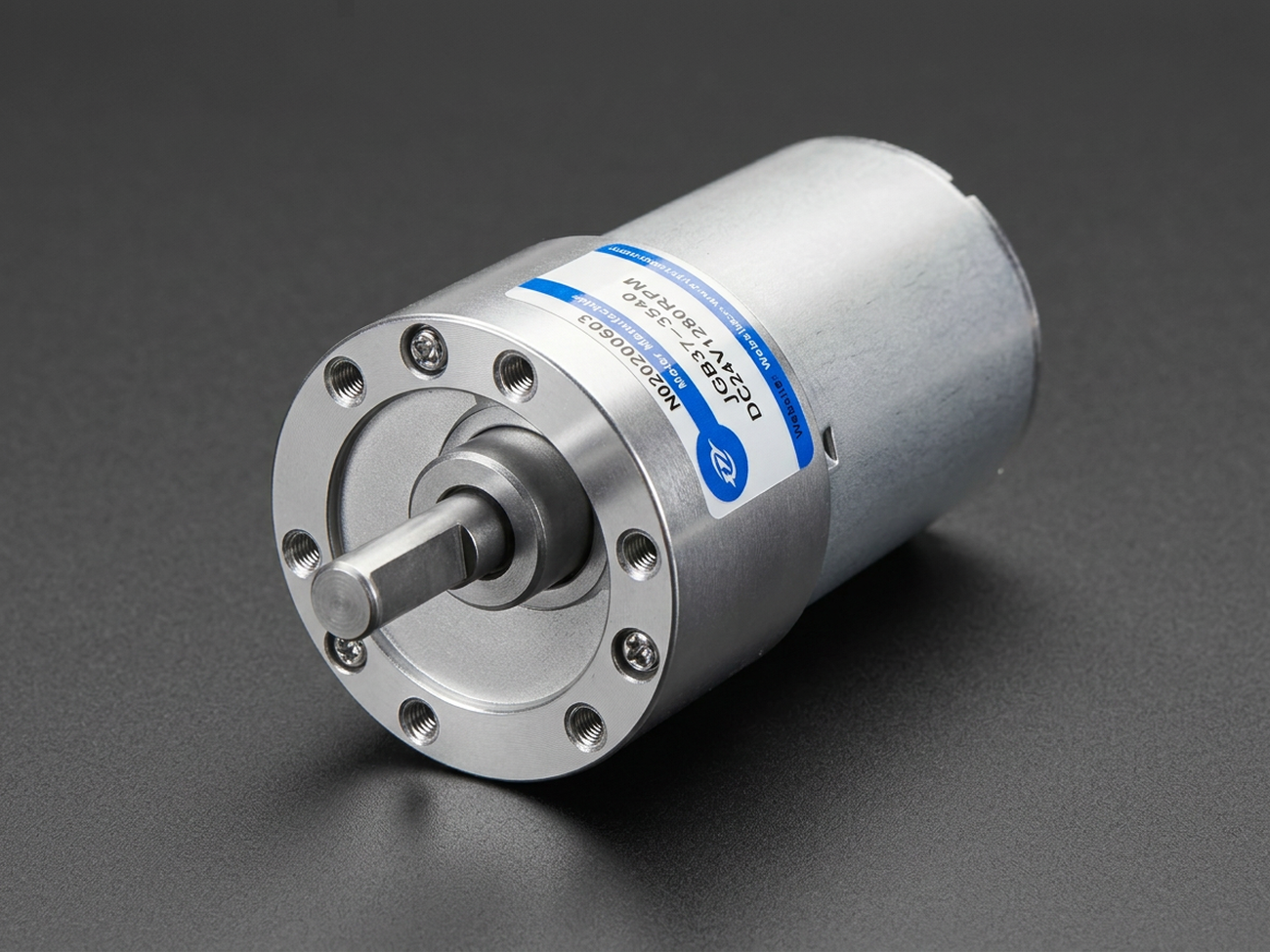

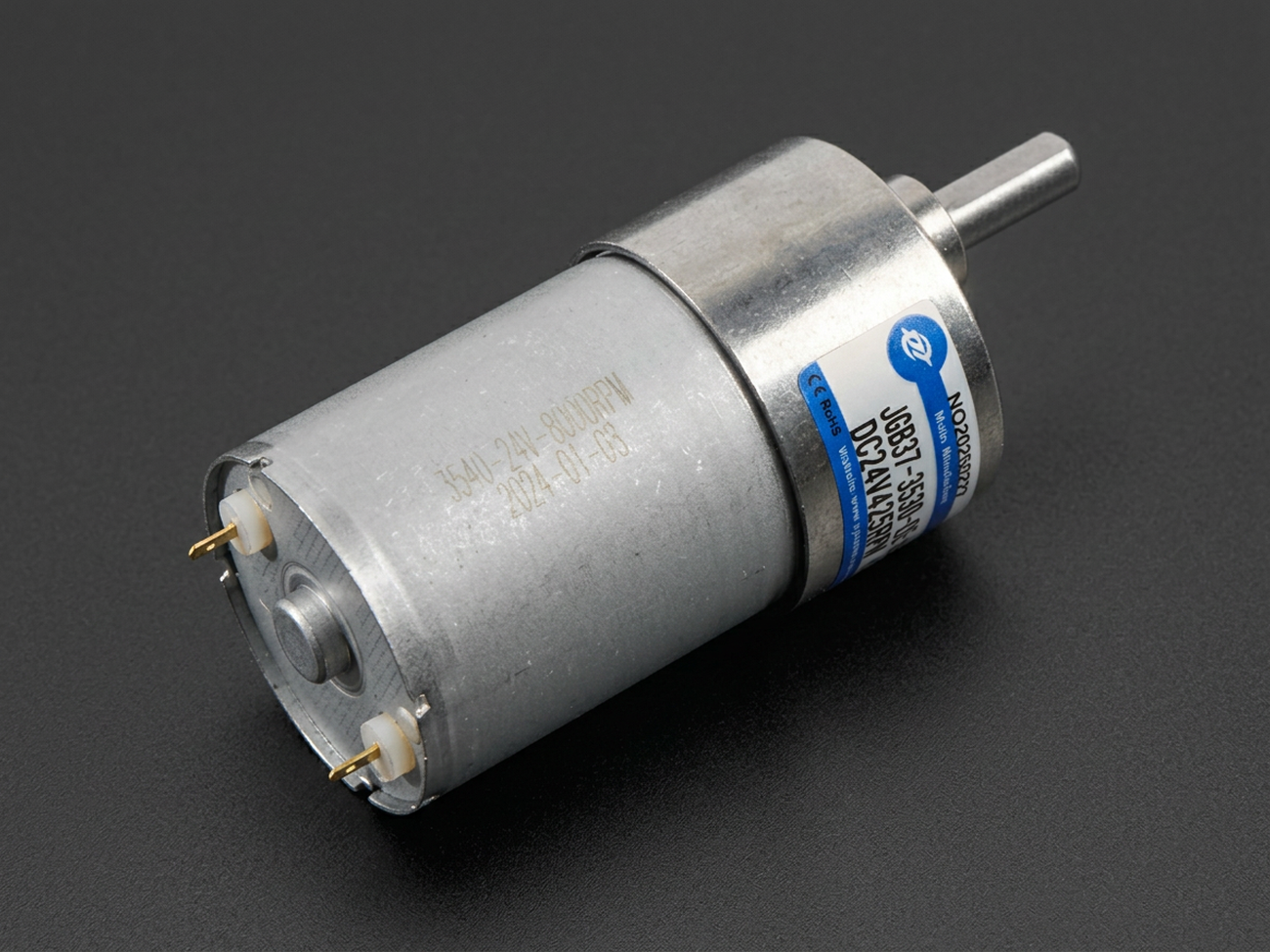

The JGB37-3540 is a compact 24V brushed DC geared motor designed for DIY, industrial, and robotics applications that need a practical balance of speed, torque, and compact size. It supports forward and reverse rotation, making it suitable for electric locks, automatic equipment, smart robots, and small machinery.
An integrated 18.8 reduction gearbox increases torque output while helping keep the overall motor assembly compact. This makes it easier to integrate into space-constrained projects where a medium-power high-torque motor is needed.
At 24V, the motor delivers a no-load speed of 425 RPM ±10% with 0.06A no-load current. Under rated load, it runs at 347 RPM ±10% with 1.3 Kg.cm torque, 0.8A current, and 19.20W power, while stall performance is specified at 6.5 Kg.cm torque and 3.1A current.
Technical details for 24V 425 RPM Brushed DC Geared Motor - Medium Power High Torque.
| Specification | Details |
|---|---|
| Model | JGB37-3540 |
| Type | Micro motor |
| Motor Type | Brushed DC geared motor |
| Commutation | Brush |
| Power Supply Mode | Direct current |
| Rated Voltage | 24V DC |
| Operating Voltage | 12V or 24V DC |
| Reduction Ratio | 18.8 |
| Revolutions | 9 - 1280 |
| Gearbox Length | 22mm |
| Shaft Diameter | Middle 6mm |
| Reverse | Support positive reverse |
| Efficiency | IE 2 |
| Protect Feature | Explosion-proof |
| No-load Speed | 425 RPM ±10% at 24V |
| No-load Current | 0.06A |
| Rated Load Speed | 347 RPM ±10% |
| Rated Load Current | 0.8A |
| Rated Torque | 1.3 Kg.cm |
| Rated Load Power | 19.20W |
| Stall Torque | 6.5 Kg.cm |
| Stall Current | 3.1A |
