SKU: TH2148
Compact 6V N30 micro metal gearmotor with 10:1 gearbox, 1000 RPM no-load speed, and D-shaped 3mm shaft. Ideal for line-following robots and other fast compact motion projects.
| Qty | Price | Save |
|---|---|---|
| 4 - 9 | ₹708.78 | 6% |
| 10 - 24 | ₹693.70 | 8% |
| 25+ | ₹678.62 | 10% |
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.

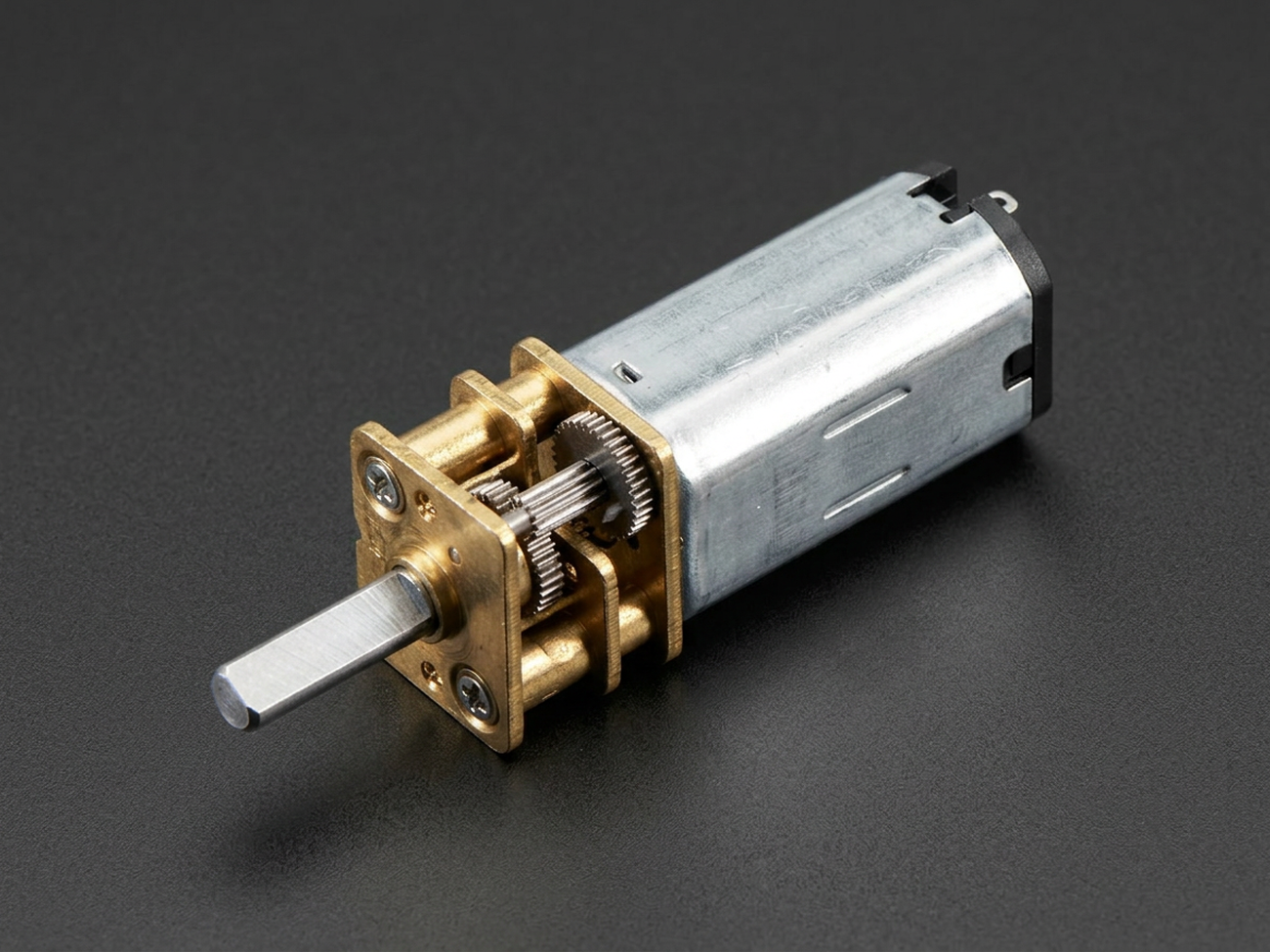

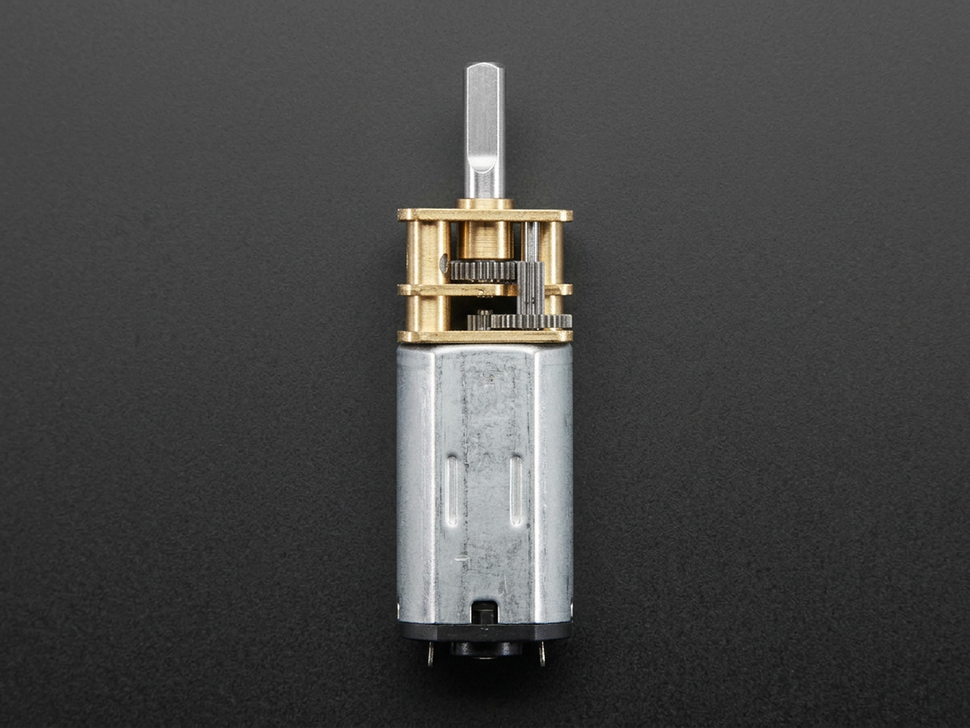

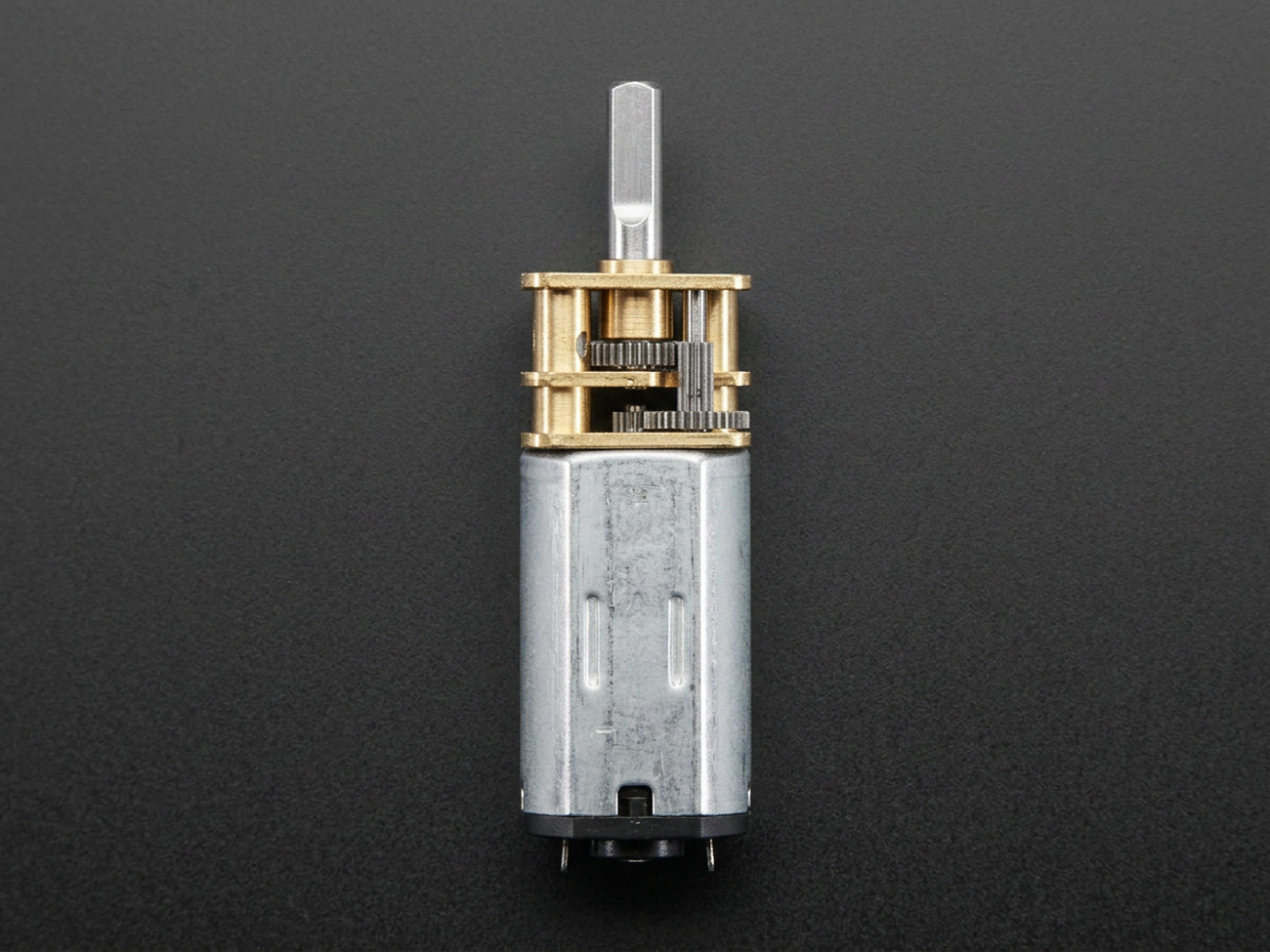

The 6V 1000 RPM DC Micro Metal Gear Motor is a compact N30 brushed permanent magnet gearmotor designed for applications that need high rotational speed in a very small footprint. This 12SG N30VA 10 6V variant combines a precious metal brush DC motor with a durable metal spur gearbox and a 1/10 reduction ratio.
It is especially well suited for line-following robots, fast miniature drivetrains, and compact motion projects where quick response and easy integration matter. Since this N30 micro metal gearmotor series shares common physical dimensions across different gear ratios, it is also convenient for makers who may want to swap ratios later without redesigning the mounting layout.
The motor runs on 6V DC, offers 1000 RPM no-load speed, and supports reversible operation by changing supply polarity. Its D-shaped 3mm output shaft makes it suitable for compatible wheels, hubs, and couplers used in robotics and precision hobby builds.
Technical details for 6V 1000 RPM DC Micro Metal Gear Motor - High Speed.
| Specification | Details |
|---|---|
| Model | 12SG-N30VA-10 |
| Motor Type | Brushed permanent magnet DC motor |
| Operating Voltage | 6V DC |
| Reduction Ratio | 1/10 |
| No-load Speed | 1000 RPM |
| No-load Current | 25 mA |
| Rated Speed | 780 RPM |
| Rated Current | 100 mA |
| Rated Torque | 16 g.cm |
| Power | 0.13 W |
| Stall Torque | 56 g.cm |
| Stall Current | 350 mA |

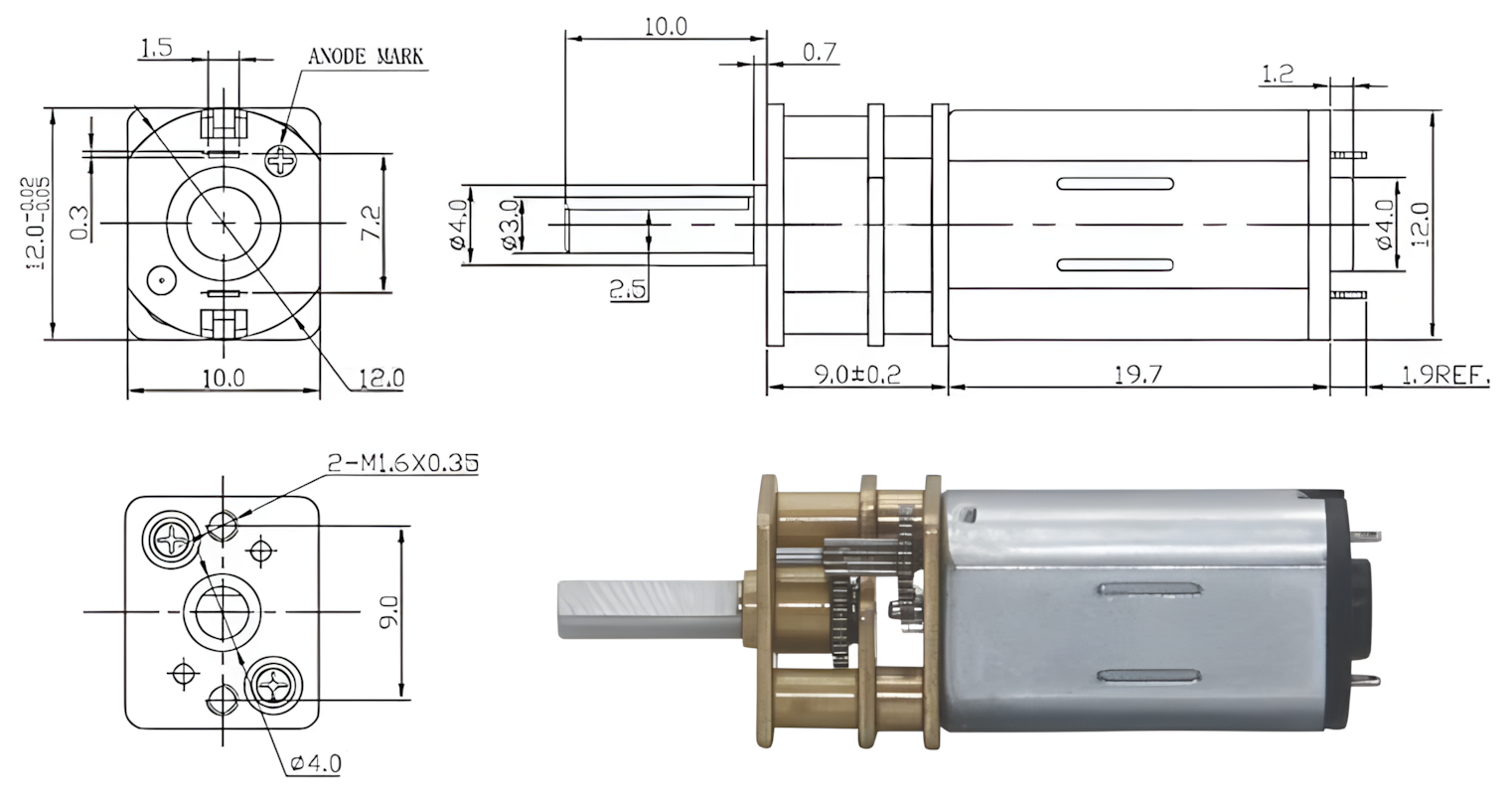

| Motor Dimensions | 10mm x 12mm x 19.7mm |
| Gearbox Dimensions | 10mm x 12mm x 9mm |
| Shaft Dimensions | D-shaped, 3mm x 10mm |
