SKU: TH1401

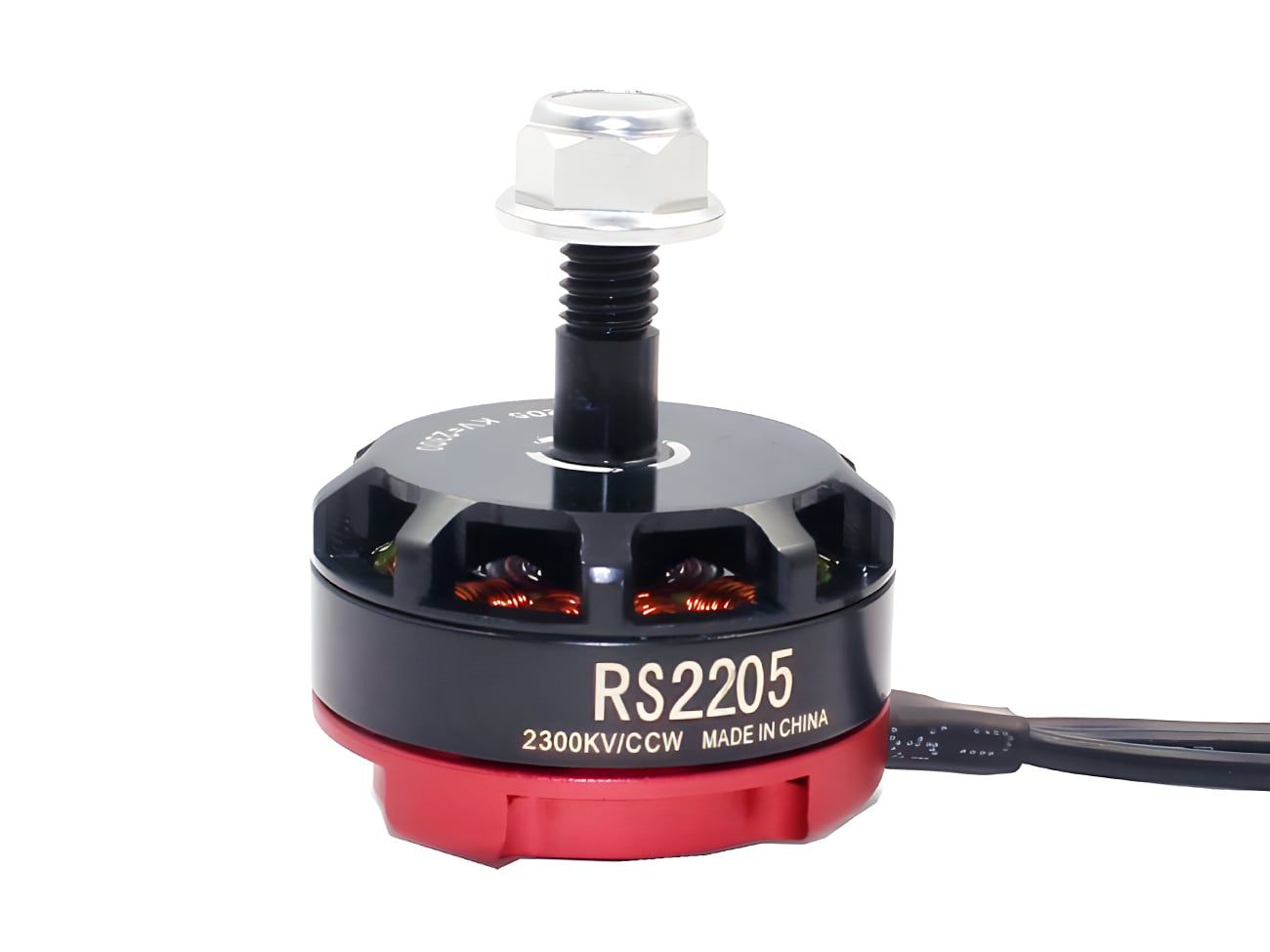

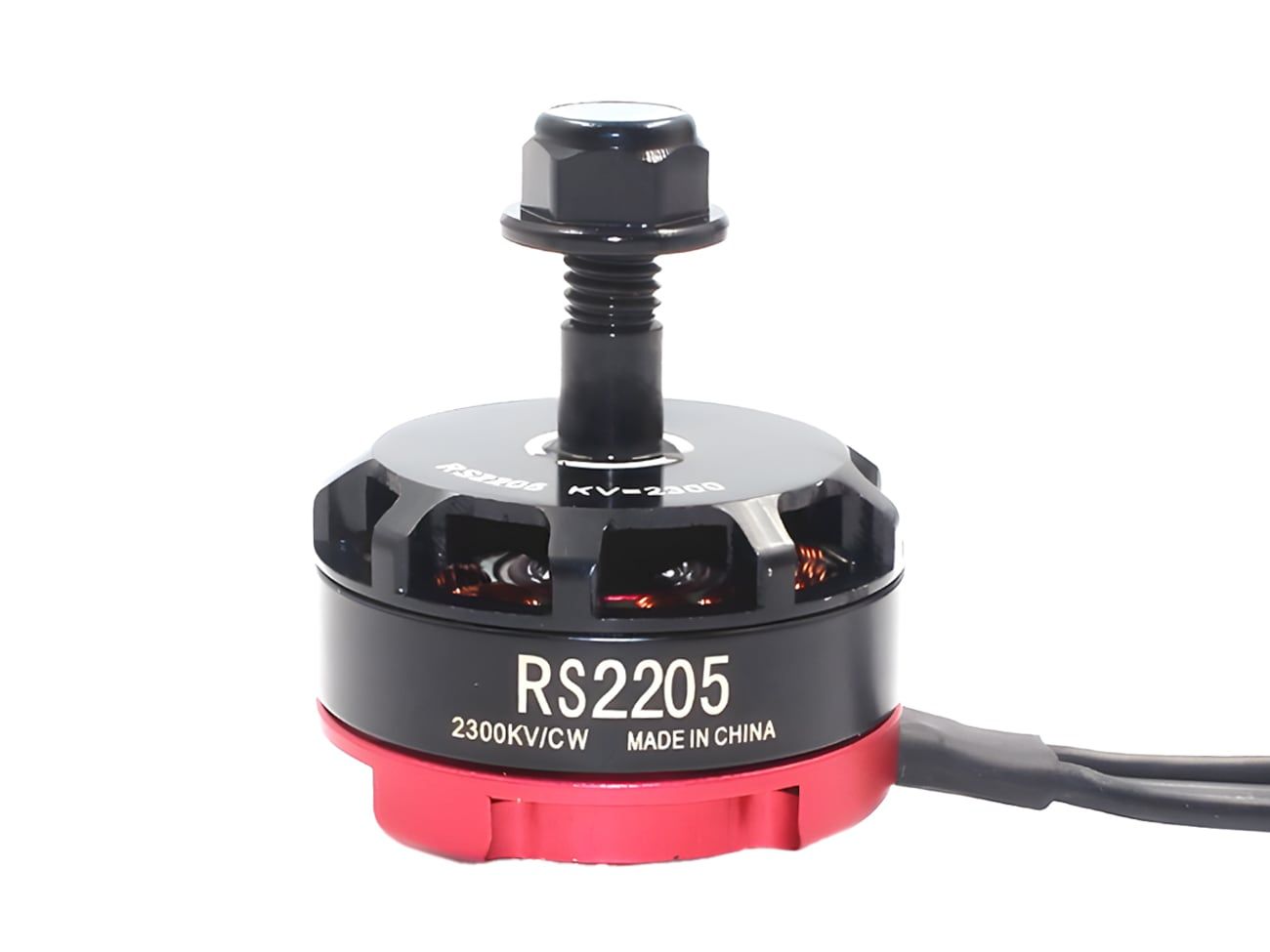

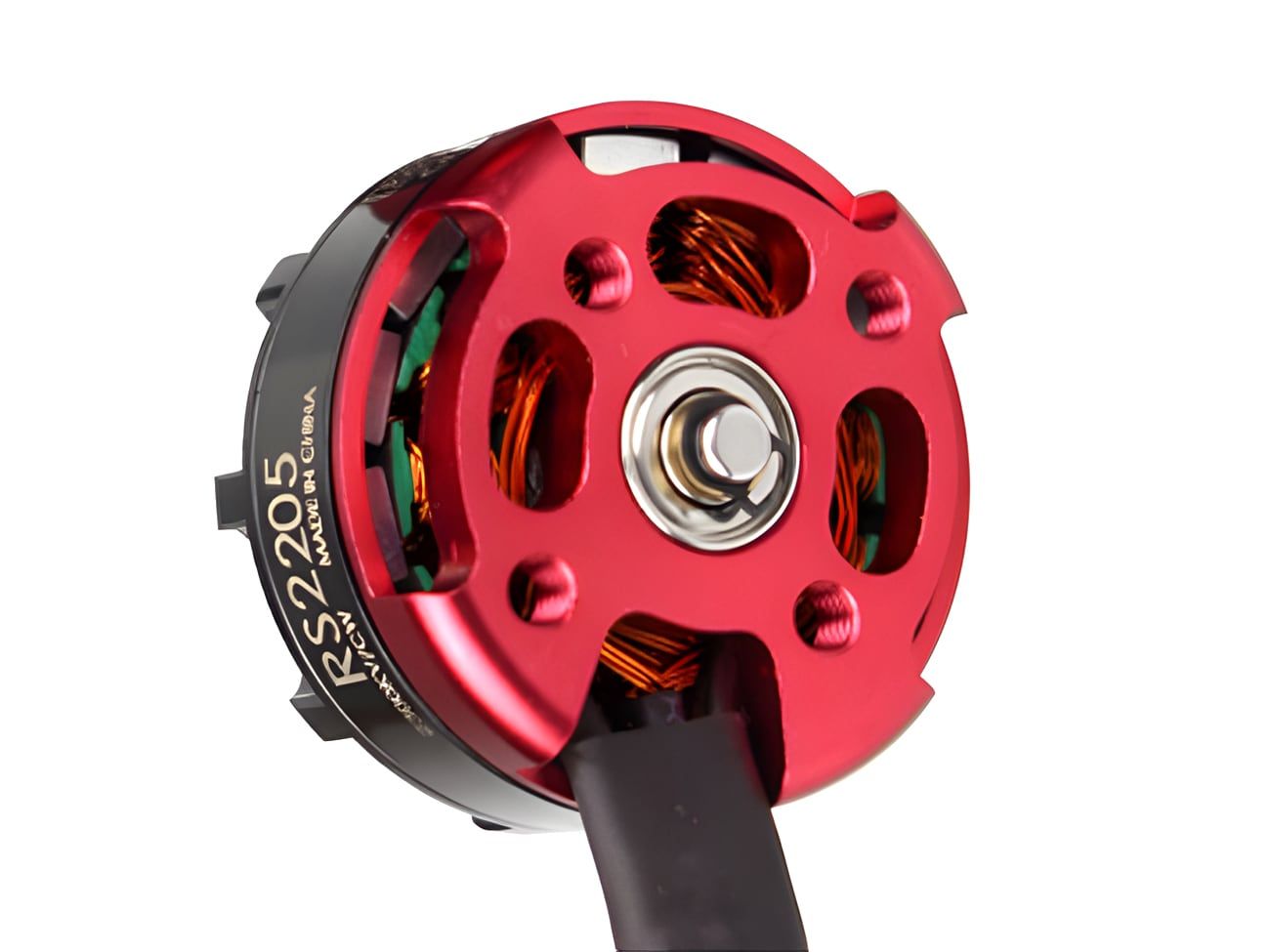

The RS2205 2300KV Brushless Motors CW/CCW are performance motors designed for drone pilots and FPV racers seeking power, efficiency, and reliability. These motors deliver exceptional thrust, smooth operation, and durability, making them ideal for high-speed racing and freestyle flying.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
The RS2205 2300KV Brushless Motors CW/CCW are performance motors designed for drone pilots and FPV racers seeking power, efficiency, and reliability. These motors deliver exceptional thrust, smooth operation, and durability, making them ideal for high-speed racing and freestyle flying.
The motors feature a 2300KV rating, providing powerful and efficient operation, and are built with a 2205-sized stator and N52H magnets for high torque and performance. They measure 27.9mm x 14mm and weigh just 30g (with wires), making them lightweight yet robust. The 5mm shaft diameter and 16mm x 19mm mounting pattern (M3 screws) ensure easy installation and compatibility with most drone frames.
Designed for 2S-4S LiPo batteries (7.4V - 14.8V), these motors can generate up to 1024g of thrust when paired with 4S batteries and 5045 propellers.
The package includes one clockwise (CW) motor, one counterclockwise (CCW) motor, two lock nuts (CW/CCW), and four mounting screws, providing everything you need for a balanced and efficient drone setup.
Package includes the following items.
| Item | Quantity |
|---|---|
| RS2205 Brushless Motor - CW or CCW | 1 |
| Mounting Screws | 4 |
Technical specification for RS2205 Brushless Motor.
| Specification | Details |
|---|---|
| KV Rating | 2300KV |
| Motor Dimensions | 27.9mm x 14mm |
| Weight | 30g (with wires) |
| Shaft Diameter | 5mm |
| Input Voltage | 2S-4S LiPo (7.4V - 14.8V) |
| Max Thrust | Up to 1024g (with 4S and 5045 propellers) |
| Mounting Pattern | 16mm x 19mm (M3 screws) |
| Bearings | Japanese NSK bearings |
| Stator | 2205-sized stator with N52H magnets |
| Wiring | Pre-soldered 20AWG silicone wires |
