T16-P Mini Track Actuator with Feedback 300mm 256:1 12 volts

Overview

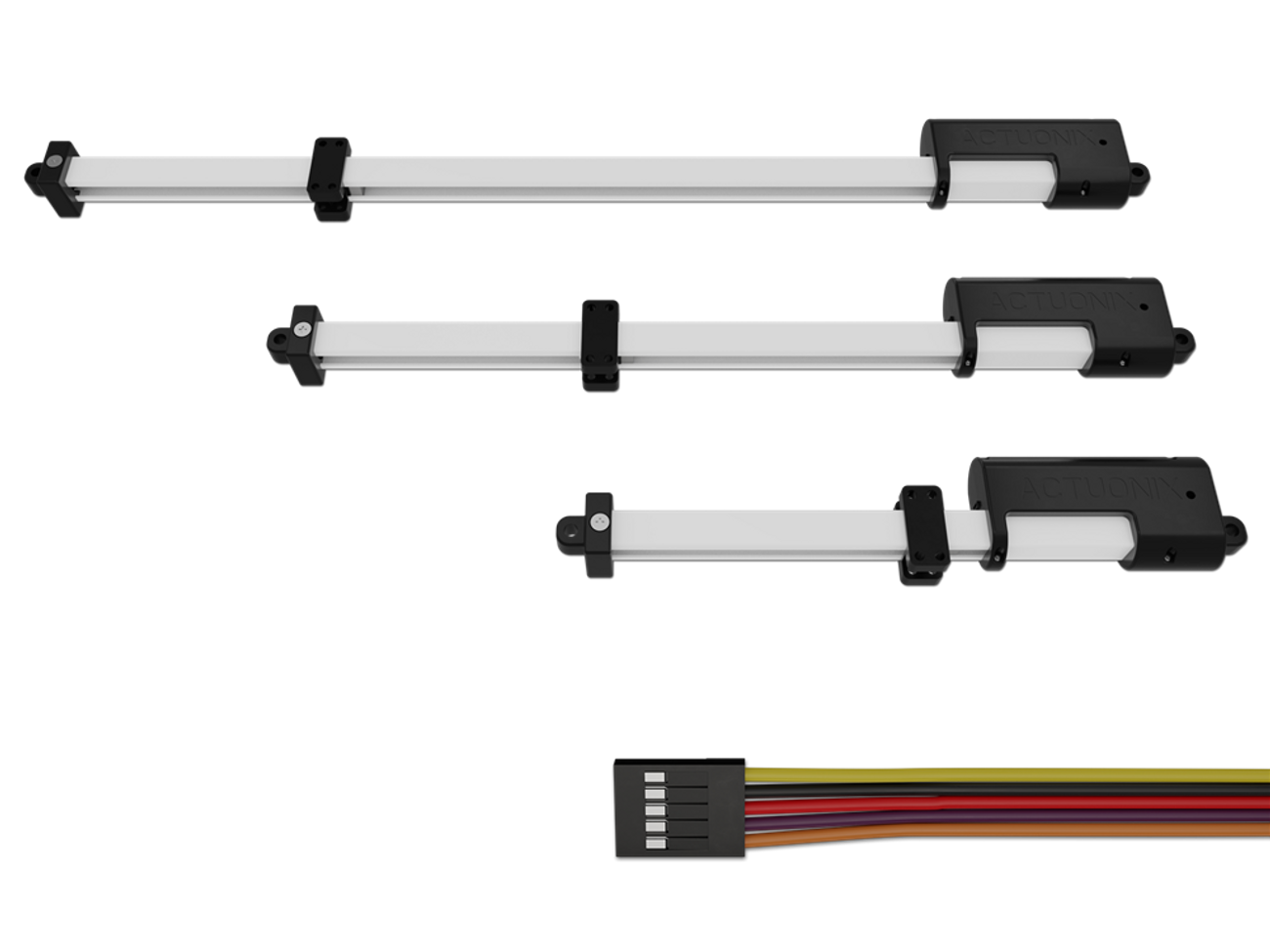

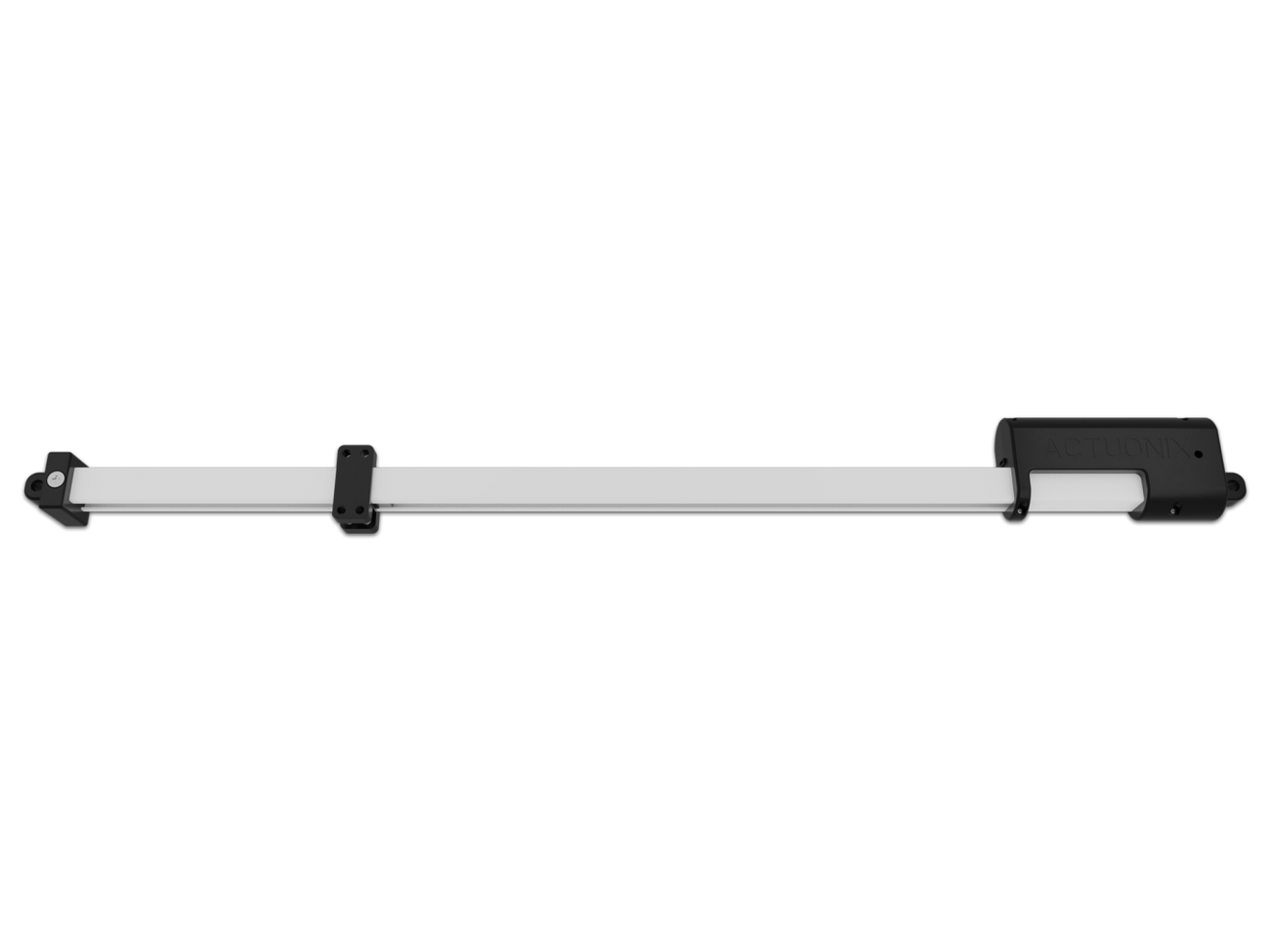

Actuonix Motion Devices unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear stepper actuators are a superior alternative to designing your own push/pull mechanisms. The P8 stepper actuators are complete, self-contained linear motion devices. Several stroke length options allow these to fit a wide variety of applications. The T16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations.

The T16 is designed to push or pull a load along its full stroke length. The speed of travel is determined by the load and mount angle (See the Load Curves). Actuator speed can be reduced by lowering the drive voltage. When power is removed the actuator will hold its position, unless the applied load exceeds the back drive force. Repeated stalling or stalling for more than a few seconds will shorten the life of the actuator significantly. Actuators should be tested in each specific application to determine their effective life under those loading conditions and environment.

Whats in the Box?

Whats included in the box?

• T16 Mini Track Actuator with Feedback

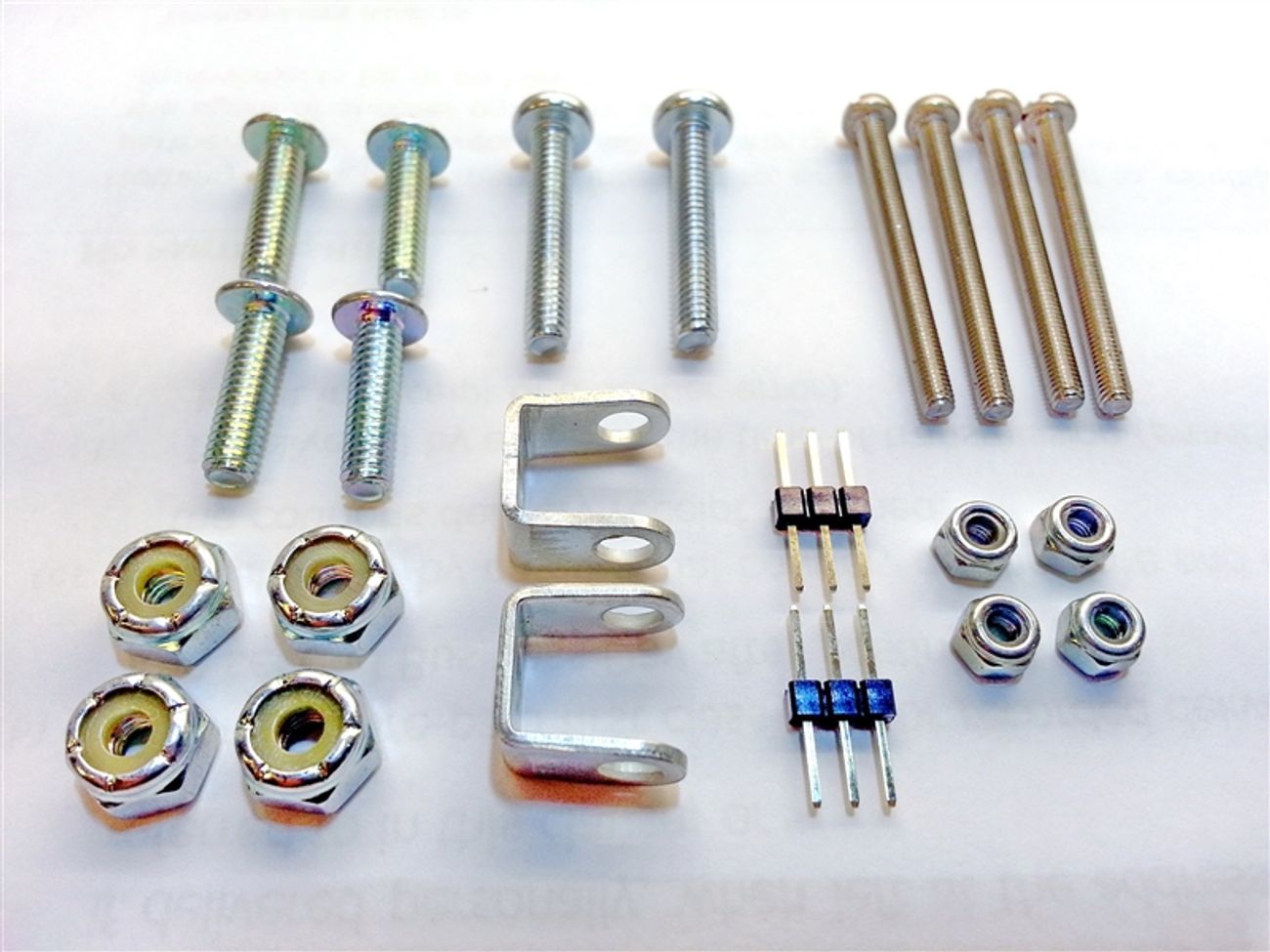

• Mounting Screws and Nuts, etc.

Downloads

• T16 Datasheet
• T16 3D Model (STP)
• T16 3D Model (IGES)

SPECIFICATION

Actuator specification

• Manufacturer Part Number
  T16-300-256-12-P
• Peak Power Point
  250N @2.5mm/s
• Peak Efficiency Point
  150N @3.4mm/s
• Max Speed (no load)
  4.8mm/s
• Max Force (lifted)
  300N
• Back Drive Force (static)
  >500N
• Mass
  160g
• Repeatability (-P&LAC)
  +/-1.2mm
• Closed Length (hole to hole)
  400mm
• Feedback Potentiometer
  34kΩ±50%
• Feedback Linearity
  Less than 2.00%
• Input Voltage
  0-15 VDC. Rated at 12VDC.
• Stall Current
  1000mA @ 12V
• Operating Temperature
  -10°C to +50°C
• Max Duty Cycle
  20%
• Audible Noise
  62dB @ 45cm
• Ingress Protection
  None
• Mechanical Backlash
  0.3mm
• Maximum Static Force
  500N
