SKU: TH1304
The Industrial USB to TTL Converter is a reliable and durable USB to serial communication device, featuring the original CH343G chip for stable data transmission and wide compatibility.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
The Industrial USB to TTL Converter is a reliable and durable USB to serial communication device, featuring the original CH343G chip for stable data transmission and wide compatibility.
It supports data rates from 50bps to 6Mbps and equipped with adjustable TTL voltage levels (3.3V/5V), offers protection with a resettable fuse, ESD protection, and a TVS diode, ensuring safety against over-current, over-voltage, and reverse-connection issues. Also, comes with three LED indicators for power (PWR), transmit (TXD), and receive (RXD) signals, enabling easy monitoring.
It also supports multiple operating systems, including Windows (7/8/8.1/10/11), macOS, Linux, and Android.
Technical specification for Industrial USB TO TTL Converter - CH343G
| Specification | Details |
|---|---|
| Host Port | USB |
| Data Rate | 50bps to 6Mbps |
| Device Port | UART |
| USB Port | Connector: USB-A Protection: Resettable fuse, ESD protection |
| UART Port | Connector: 8-pin fool-proof header Protection: IO protection diode |
| Indicators | PWR: Power indicator, turns red when USB voltage is detected TXD: TX indicator, turns red while the USB port is sending data RXD: RX indicator, turns red while the device port is receiving data |
| Operating System Compatibility | Windows 7/8/8.1/10/11, macOS, Linux, Android |

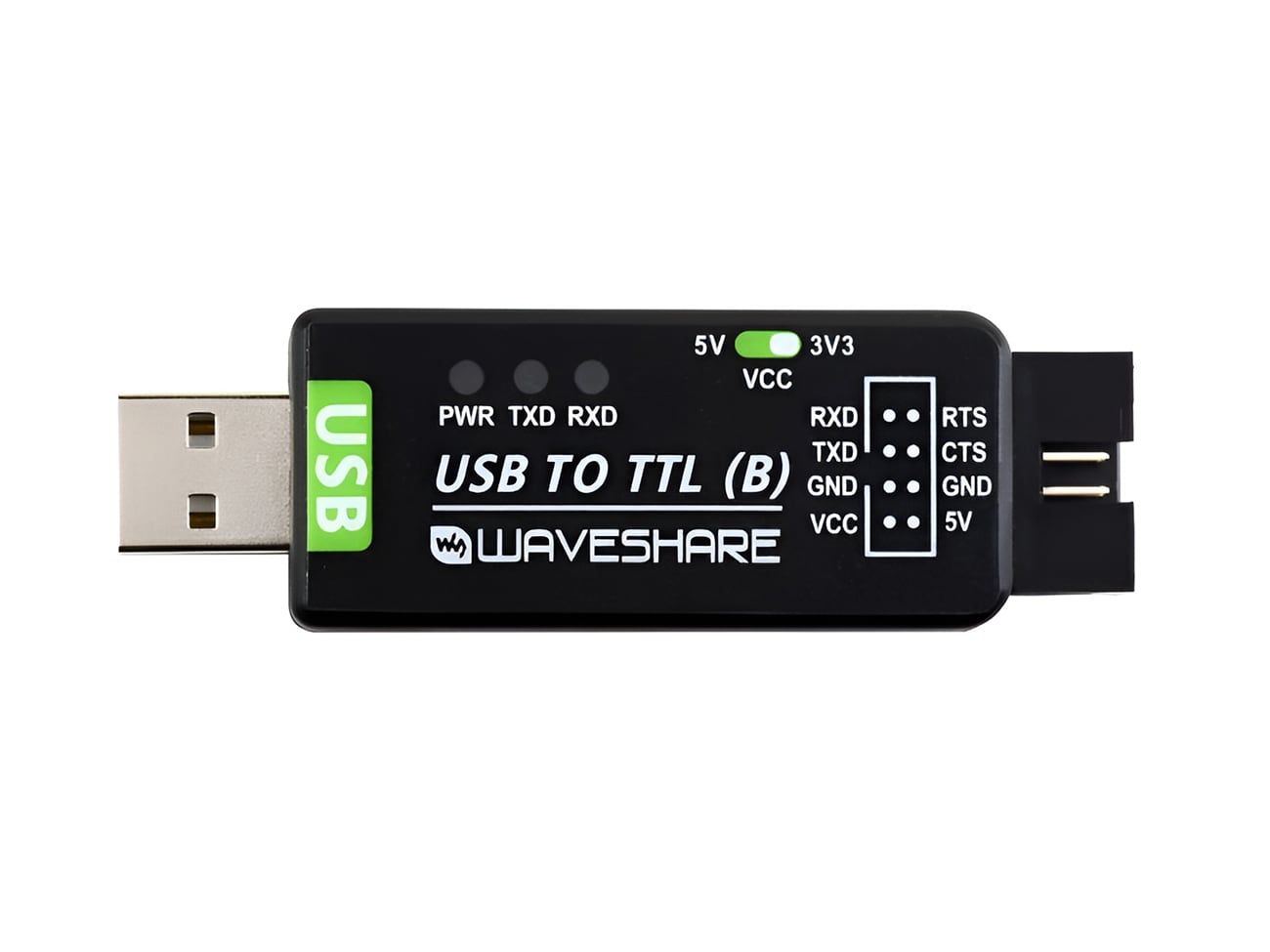

Pinout for Industrial USB TO TTL Converter - CH343G
| Pin | Description |
|---|---|
| VCC | Power output (3.3V/5V, selectable) |
| GND | Ground |
| TXD | Transmit data |
| RXD | Receive data |
| RTS | Request to send |
| CTS | Clear to send |
