SKU: TH1510

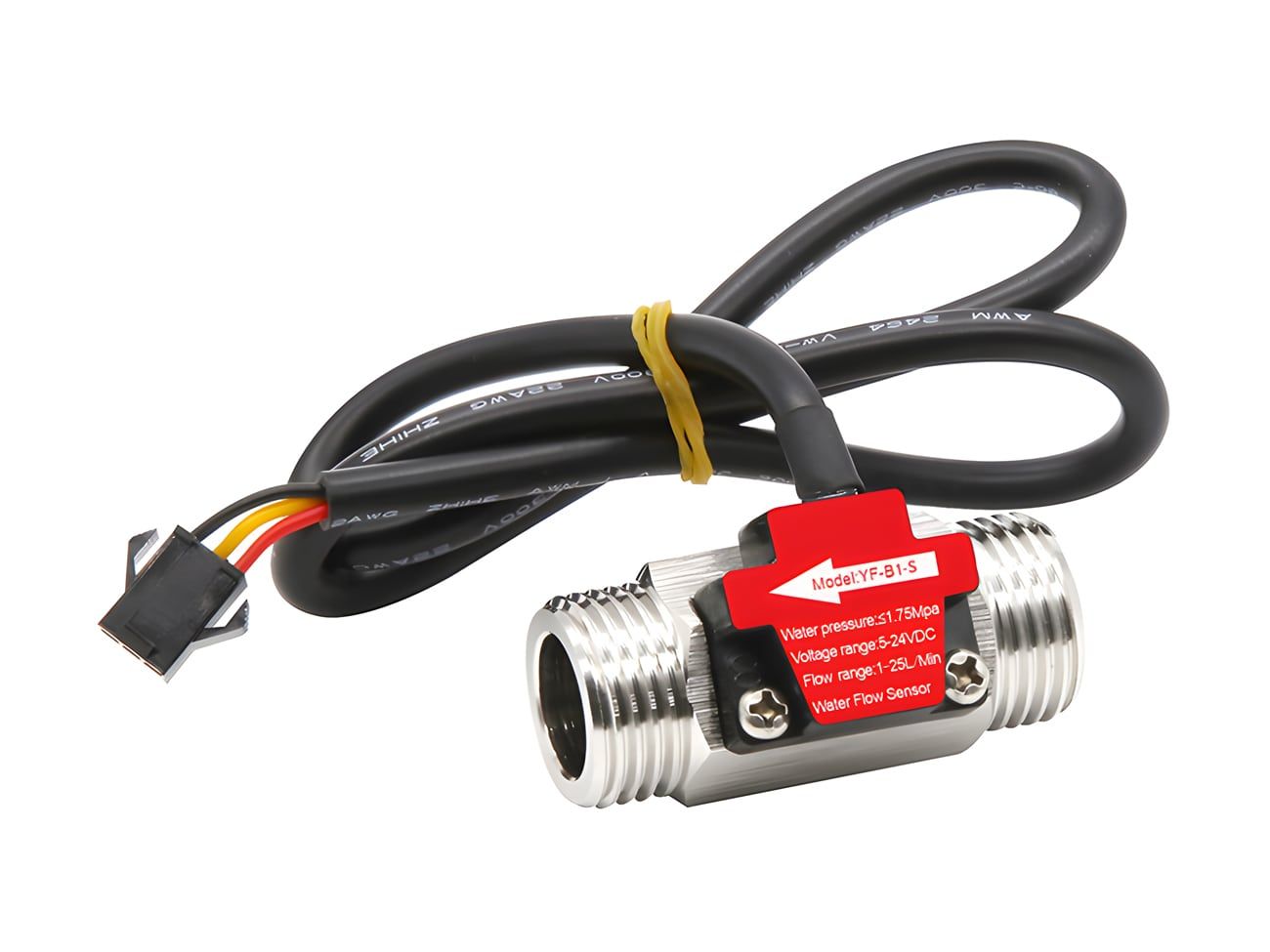

The YF-B1-S Stainless Steel Liquid Flow Sensor (1/2 inch) is a precision-engineered flow measurement device for accurate measuring of liquid flow in pipes. Featuring a robust stainless-steel body and durable internal components, it ensures high corrosion resistance, long lifespan, and stable performance in harsh environments.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
The YF-B1-S Stainless Steel Liquid Flow Sensor (1/2 inch) is a precision-engineered flow measurement device for accurate measuring of liquid flow in pipes. Featuring a robust stainless-steel body and durable internal components, it ensures high corrosion resistance, long lifespan, and stable performance in harsh environments.
This sensor operates on a wide voltage range of 3.5V to 24V DC, generating a pulse signal proportional to the flow rate. With a measurement range of 1–25 L/min (±3%), it’s ideal for applications like water dispensers, industrial control systems, and smart water monitoring. Its G1/2 thread design ensures easy installation, and the compact 66 mm body allows it to fit into tight spaces.
The sensor provides a high-level output signal (>DC 4.5 V) and low-level output (<DC 0.5 V) at 5 V DC input, making it compatible with most microcontrollers, PLCs, and IoT systems. Designed for temperatures up to 80 °C, it maintains accuracy and reliability even under demanding operating conditions.
Technical details for YF-B1-S Stainless Steel Liquid Flow Sensor - 1/2 inch Diameter.
| Specification | Details |
|---|---|
| Model | YF-B1-S |
| Operating Voltage | 3.5 – 24 V DC |
| Flow Range | 1 – 25 L/min ± 3% |
| Pulse Characteristic | Hz = (18 × Q − 3) ± 5% (Q = flow rate in L/min) |
| Maximum Pressure | ≤ 1.75 MPa |
| Pipe Size | G 1/2 inch (4 分) |

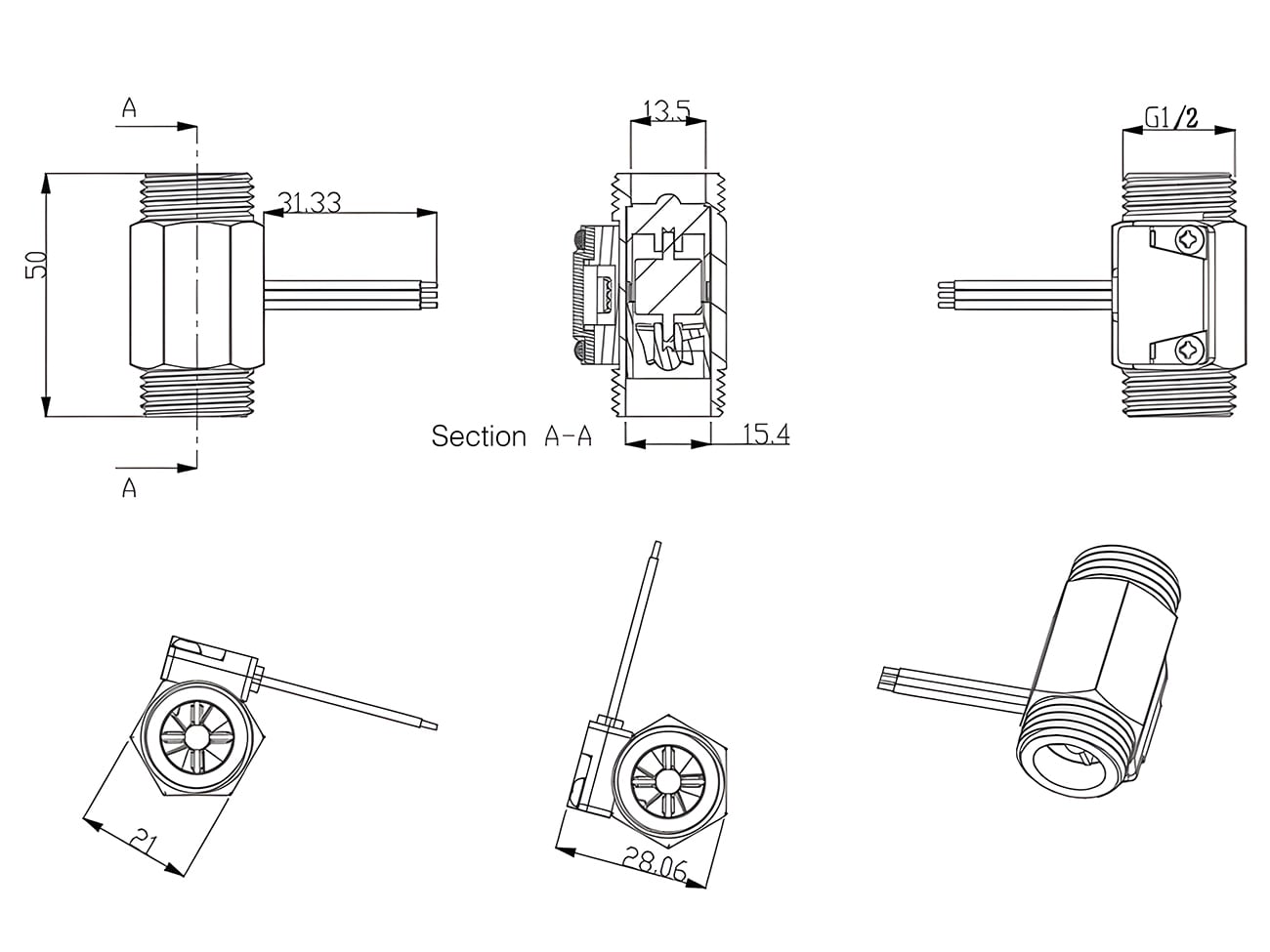

| Inner/Outer Diameter | Inlet Ø15 mm / Outlet Ø13.5 mm / Outer Ø20.5 mm |
| Thread Length | 20 mm |
| Body Length | 50 mm |
| Max Working Current | 15 mA (DC 5 V) |
| Load Capacity | ≤ 10 mA (DC 5 V) |
| Operating Temperature | ≤ 80 °C |
| High-Level Output | > DC 4.5 V (input DC 5 V) |
| Low-Level Output | < DC 0.5 V (input DC 5 V) |
| Storage Temperature / Humidity | −25 ~ 80 °C / 25% ~ 95% RH |
