Cytron MDD10A 5-30V 10A Dual Channel DC Motor Driver
SKU: TH0694
Sold Out₹2,035.50
₹1,725.00 (Ex. of GST)
SKU: TH2157

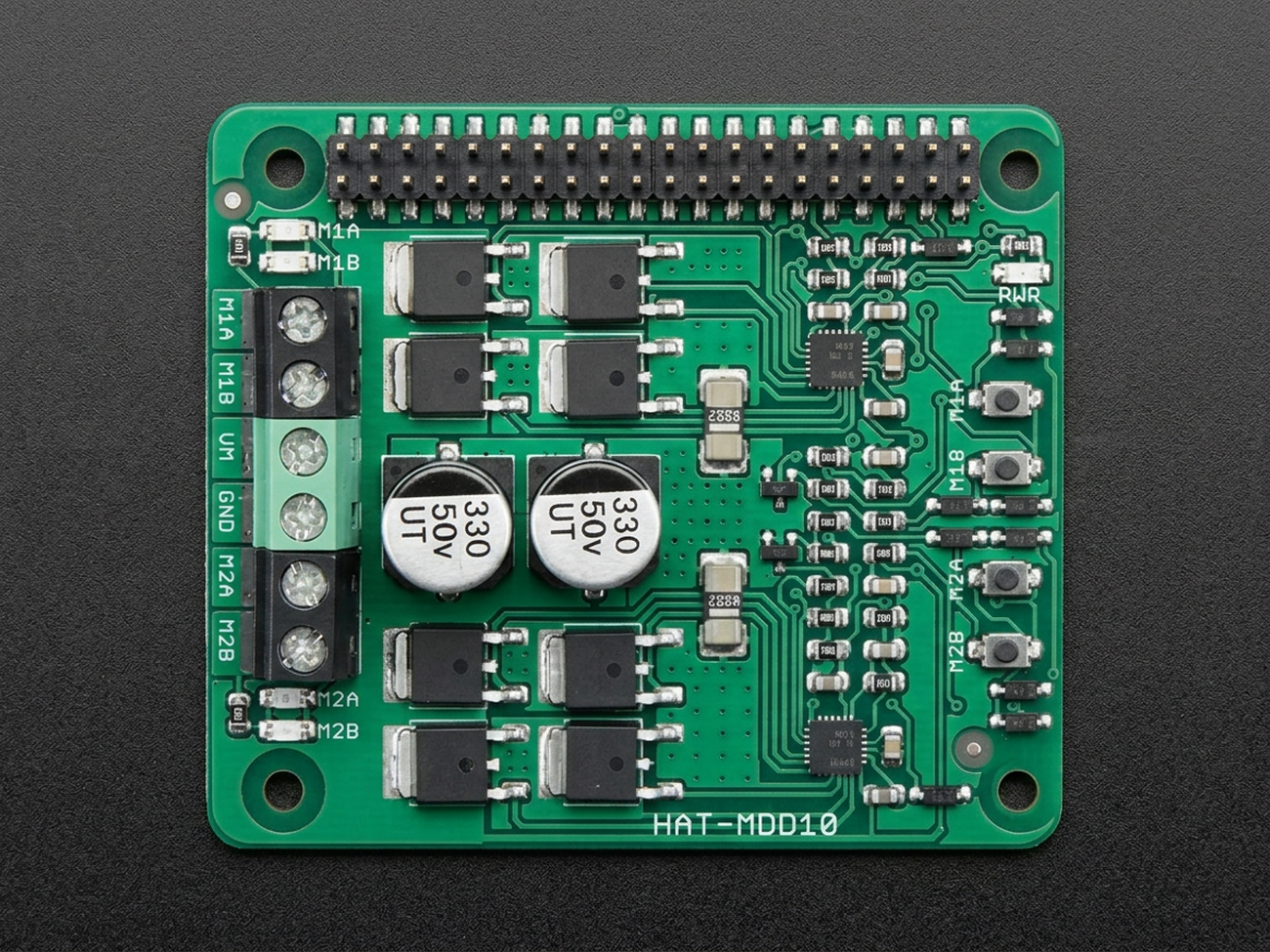

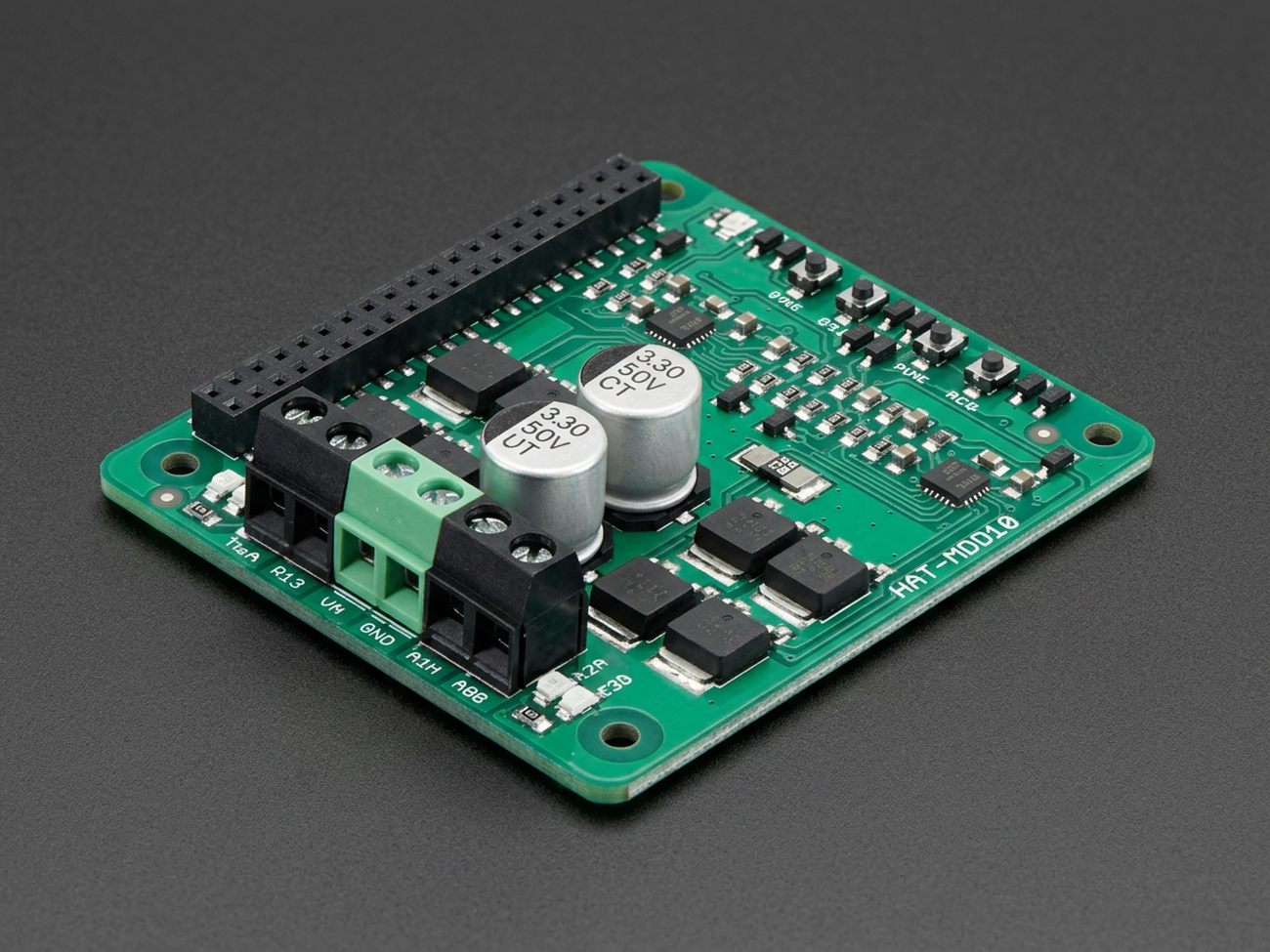

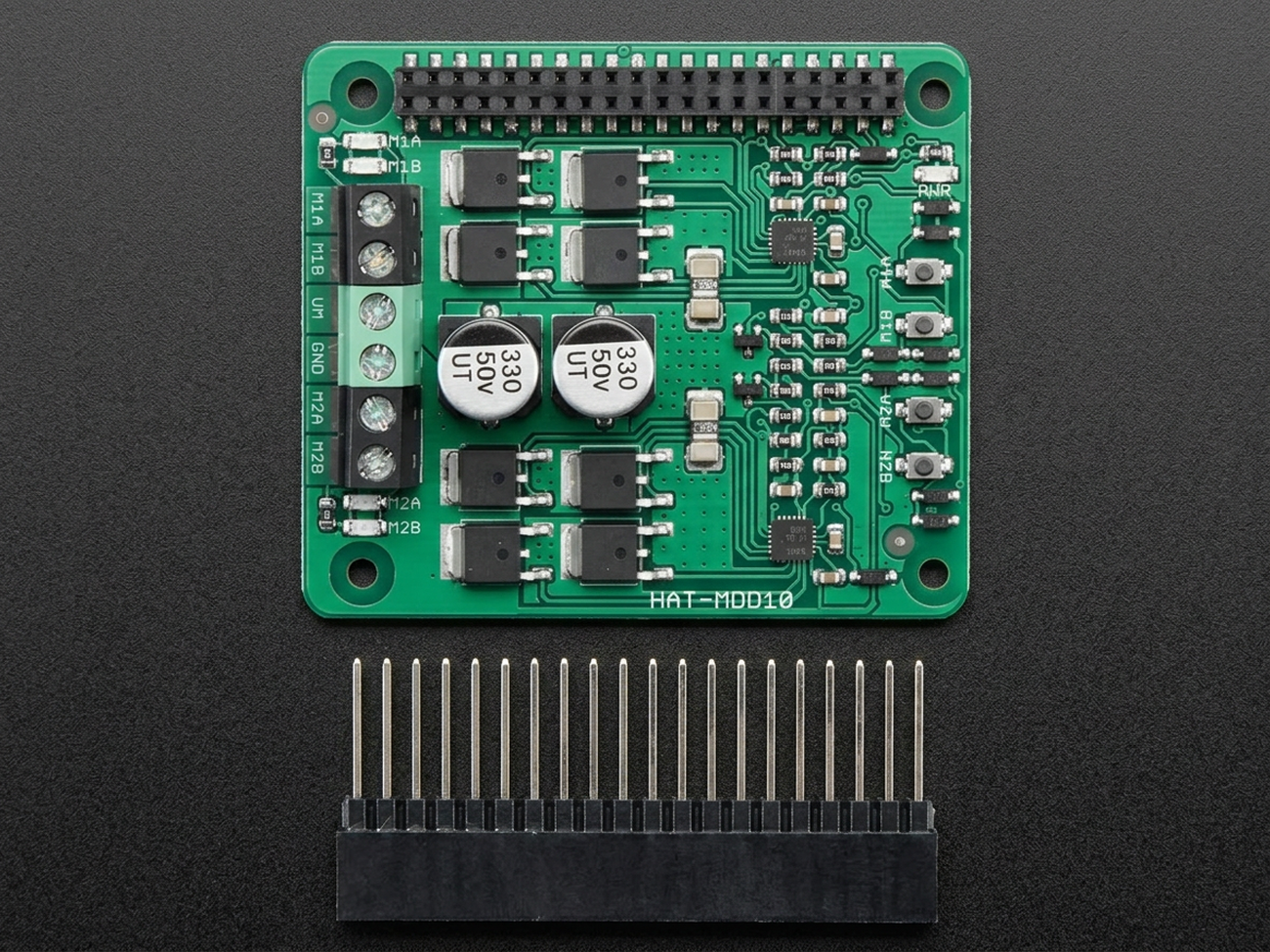

The Cytron HAT-MDD10 is a dual-channel brushed DC motor driver HAT designed for Raspberry Pi projects that need reliable high-current motor control in a compact add-on format. It can drive two bi-directional DC motors with a motor supply range of 6VDC to 24VDC.
The Cytron HAT-MDD10 is a dual-channel brushed DC motor driver HAT designed for Raspberry Pi projects that need reliable high-current motor control in a compact add-on format. It can drive two bi-directional DC motors with a motor supply range of 6VDC to 24VDC.
Each channel supports up to 10A continuous current without a heatsink at 25℃, with 30A peak current for 10 seconds. The board uses a fully NMOS H-Bridge for improved efficiency, supports signed-magnitude PWM speed and direction control, and accepts PWM frequencies up to 20kHz.
Built for practical robotics and automation use, the HAT-MDD10 includes current limiting, automatic overcurrent cut-off at 30A peak, regenerative braking, LED indicators on each channel output, and an onboard test button for manual motor control. It is intended for brushed DC motors only.
Technical details for Cytron 10A Dual-Channel DC Motor Driver HAT for Raspberry Pi.
| Specification | Details |
|---|---|
| Product Type | Dual-channel brushed DC motor driver HAT for Raspberry Pi |
| Motor Channels | 2-channel bi-directional motor driver |
| Motor Voltage Range | 6VDC to 24VDC |
| Continuous Current | 10A per channel without heatsink at 25℃ |
| Peak Current | 30A for 10 seconds |
| PWM Support | Signed-magnitude PWM, up to 20kHz |
| Driver Topology | Fully NMOS H-Bridge |
| Protection | 30A current limiting and automatic overcurrent cut-off |
| Additional Features | Regenerative braking, onboard test button, LED indicator on every channel output |
| Dimensions | 67.5mm x 59mm |

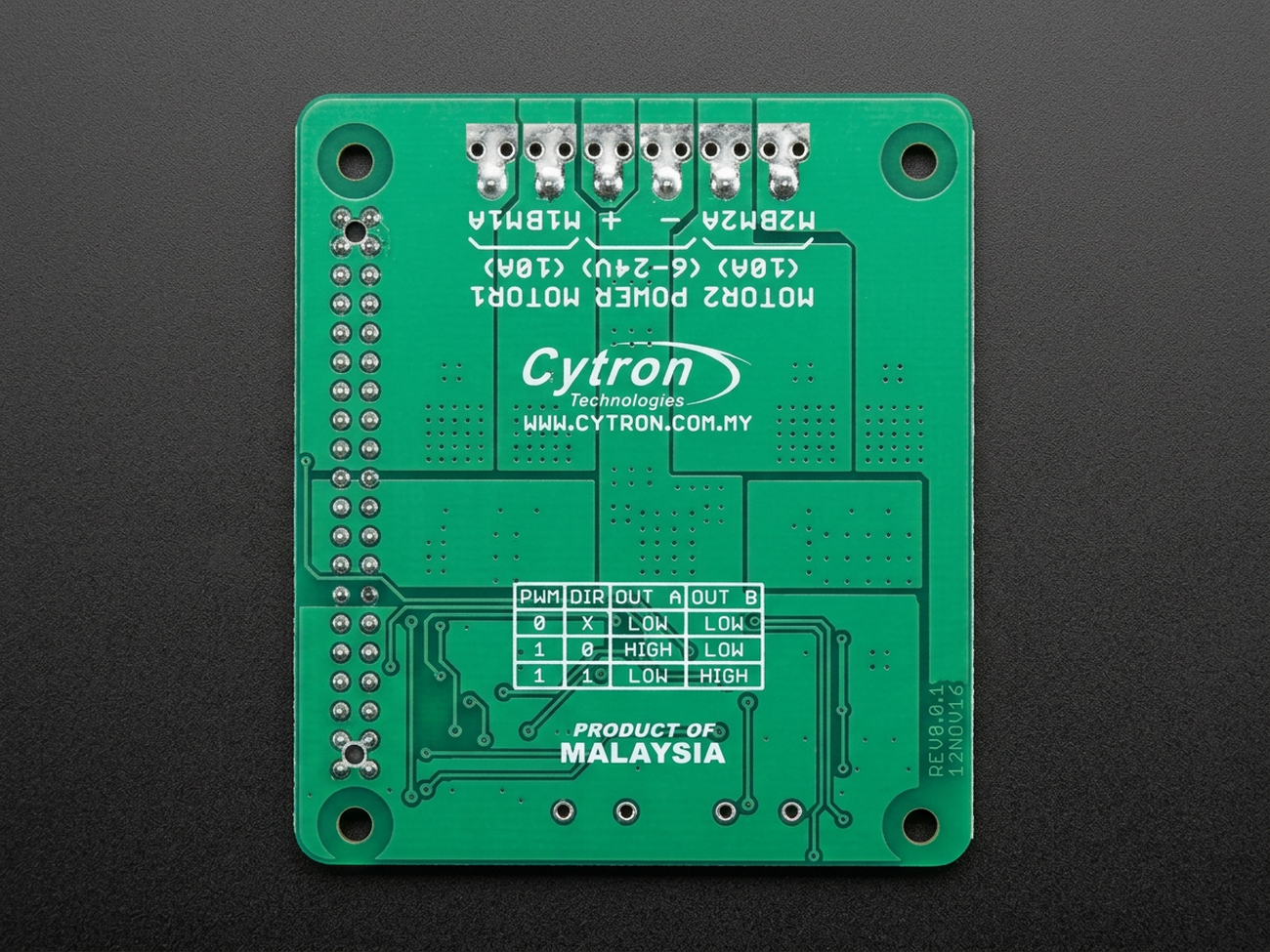

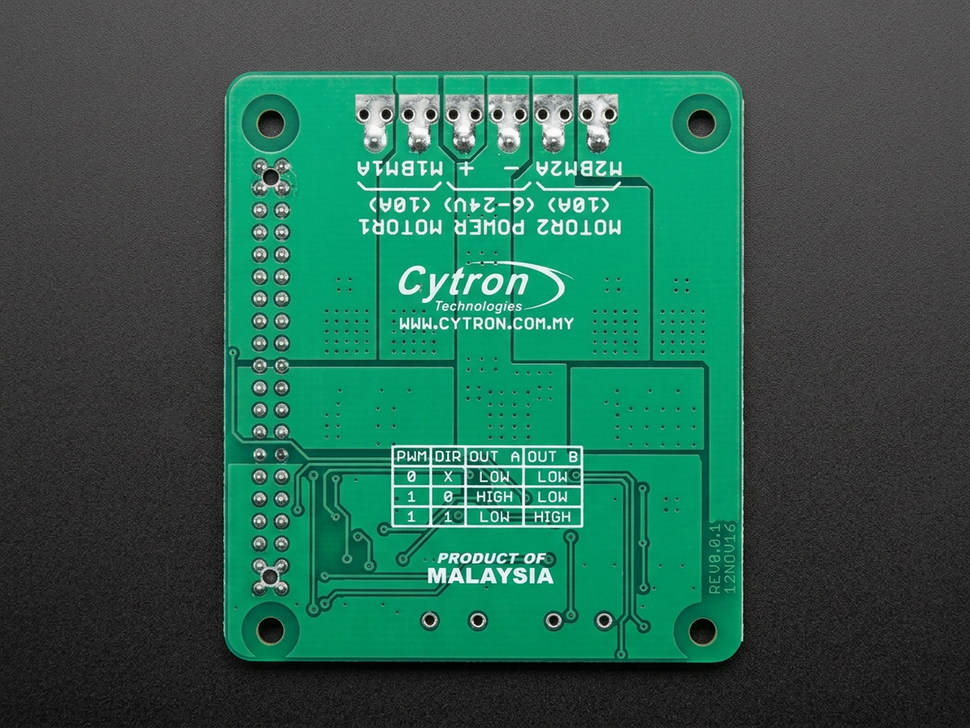

| Pin | Type | Description |
|---|---|---|
| M1A | Motor Output | Motor channel 1 output terminal A |
| M1B | Motor Output | Motor channel 1 output terminal B |
| M2A | Motor Output | Motor channel 2 output terminal A |
| M2B | Motor Output | Motor channel 2 output terminal B |
| VIN | Power Input | Motor power supply input, 6VDC to 24VDC |
| GND | Power | Ground reference for motor power and control |
| Raspberry Pi Header | Control Interface | Raspberry Pi compatible connector for HAT mounting and control signals |
| PWM Input | Control Input | TTL PWM control input for speed control; supports up to 20kHz |
| Direction Input | Control Input | Direction control for signed-magnitude motor operation |
| Test Button | User Interface | Onboard push button for manual motor control testing |
