PCIe To M.2 Adapter Board (D) for Raspberry Pi 5

Overview

The PCIe to M.2 Adapter Board (D), enables seamless integration of NVMe M.2 SSDs. This adapter supports various SSD sizes, including 2230, 2242, 2260, and 2280, making it compatible for different storage needs. It operates with PCIe Gen2 and Gen3 modes, offering a data transfer rate of up to 8Gbps (theoritical) and measured read/write speed upto 800MB/s approximately, ensuring fast and efficient read/write operations. Additionally, the adapter supports booting directly from the connected NVMe SSD, significantly improving system startup times and overall responsiveness.

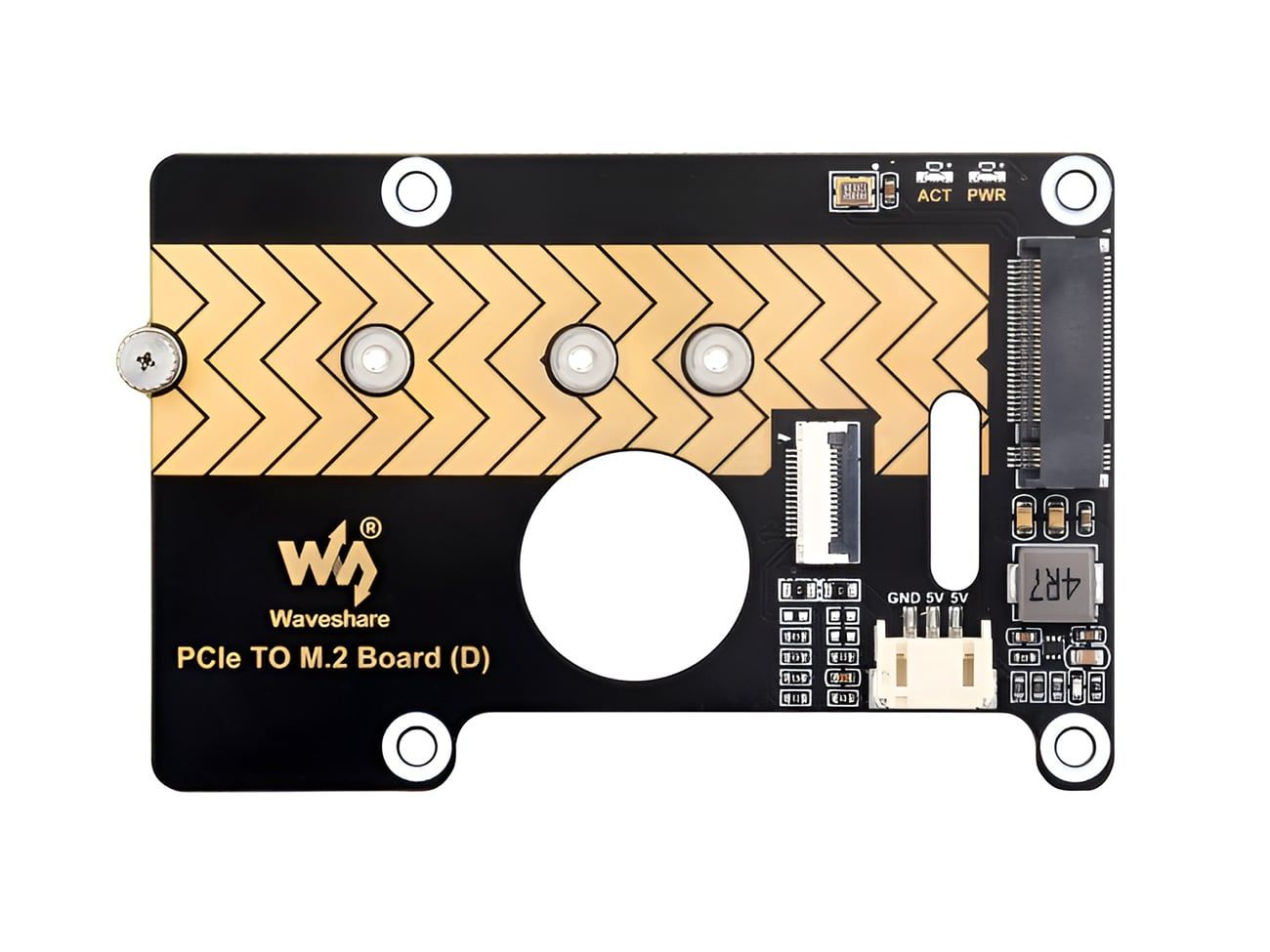

The board features dual power supply options, either via a PCIe cable (default method) or a 3-pin cable for scenarios requiring additional power, ensuring stable operation under varying conditions. Two onboard LED indicators provide real-time feedback on power and activity status.

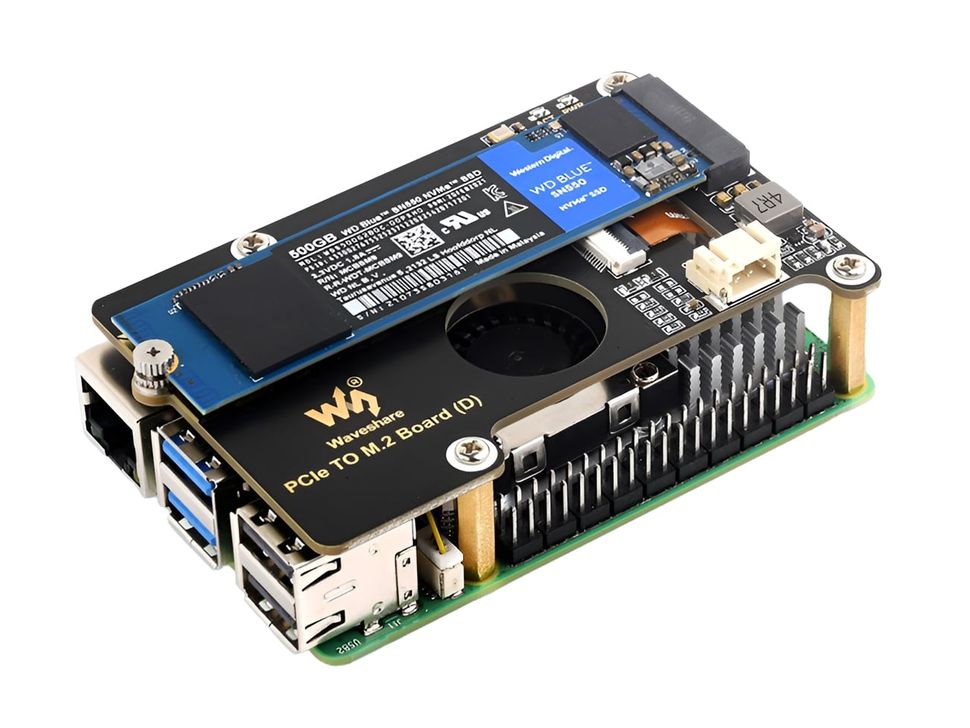

Designed for easy installation, the adapter connects to the Raspberry Pi 5 through a 16-pin PCIe interface and aligns perfectly with the device's form factor for seamless integration.

With its robust specifications and user-friendly features, the PCIe to M.2 Adapter Board (D) is an ideal choice for enhancing storage performance and enabling advanced applications on the Raspberry Pi 5.

What's in the box?

Here's whats included in the box.

1. PCIe TO M.2 Board (D) x1
2. 16P-Cable-40mm x1
3. Standoff pack x1

Specifications

Technical specifications for PCIe To M.2 Adapter Board (D).

Specification	Details
Interface	M.2 M-key slot compatible with NVMe protocol SSDs
Supported SSD Sizes	2230, 2242, 2260, 2280
PCIe Modes	Gen2 and Gen3
Data Transfer Rate	Up to 8Gbps
Power Supply Options	Via PCIe cable (default method) Via 3-pin cable (additional power option)
LED Indicators	Power status LED Activity status LED

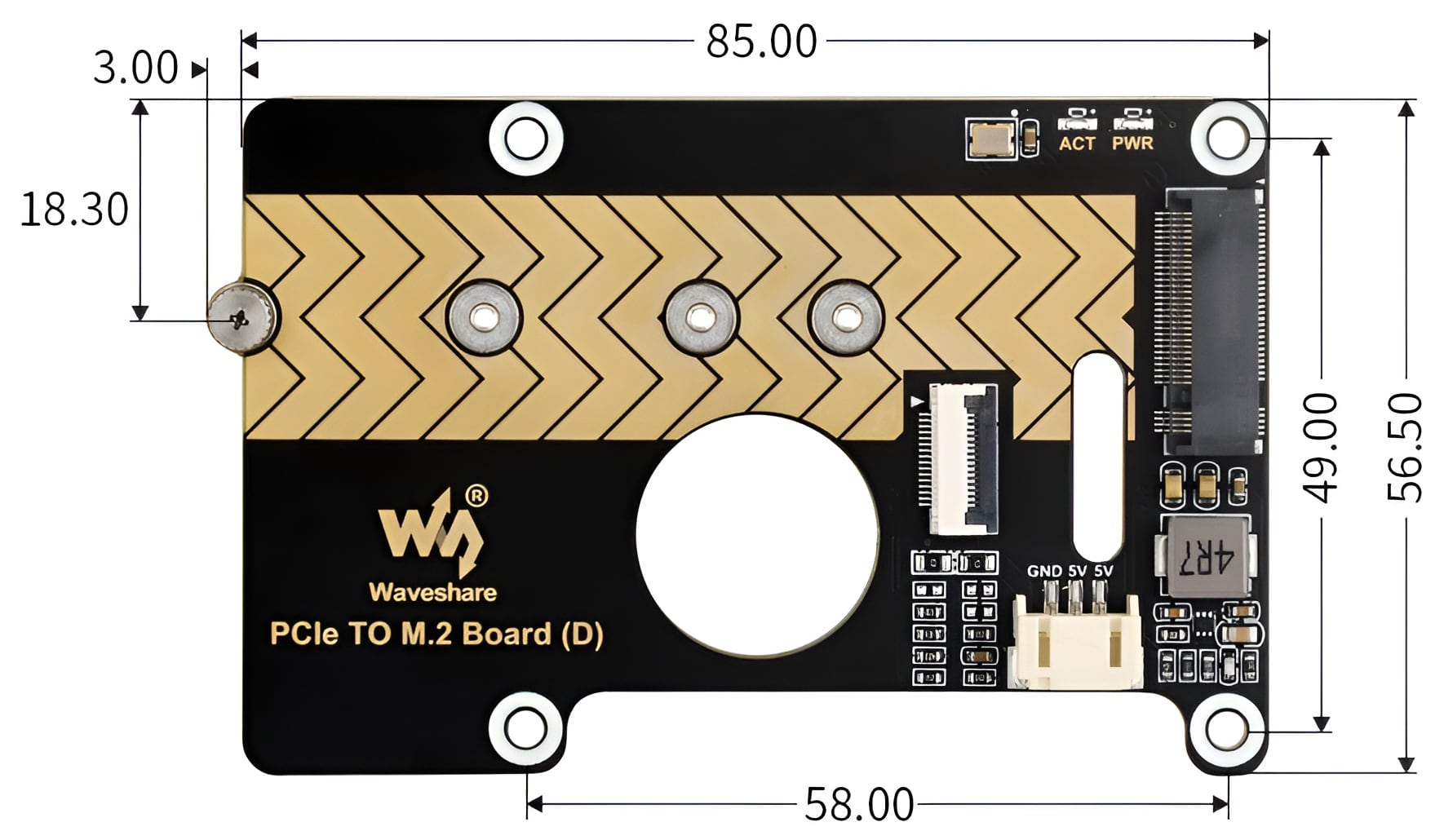

Dimensions	Designed to align with the Raspberry Pi 5 form factor

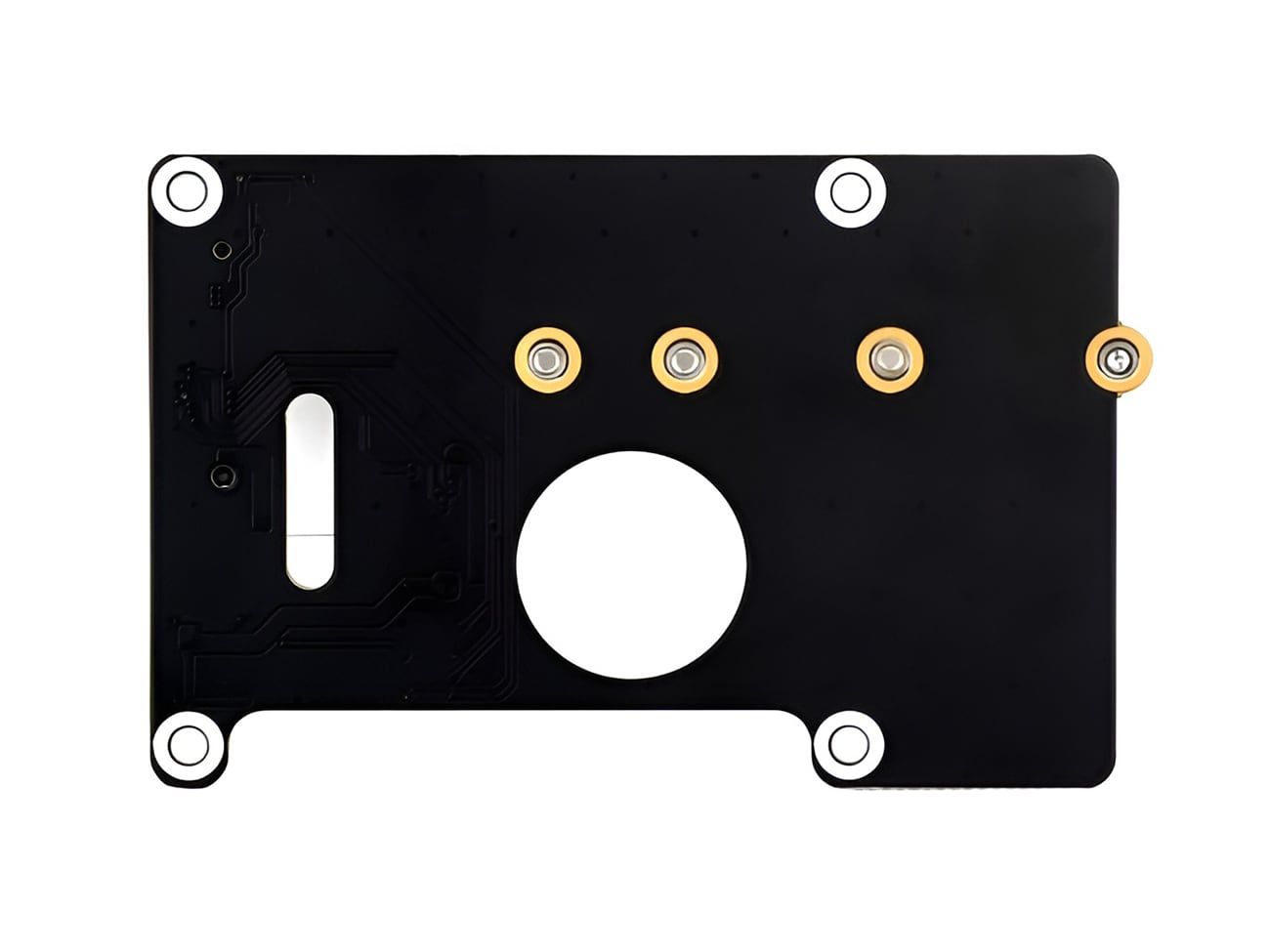

SSD Sizes

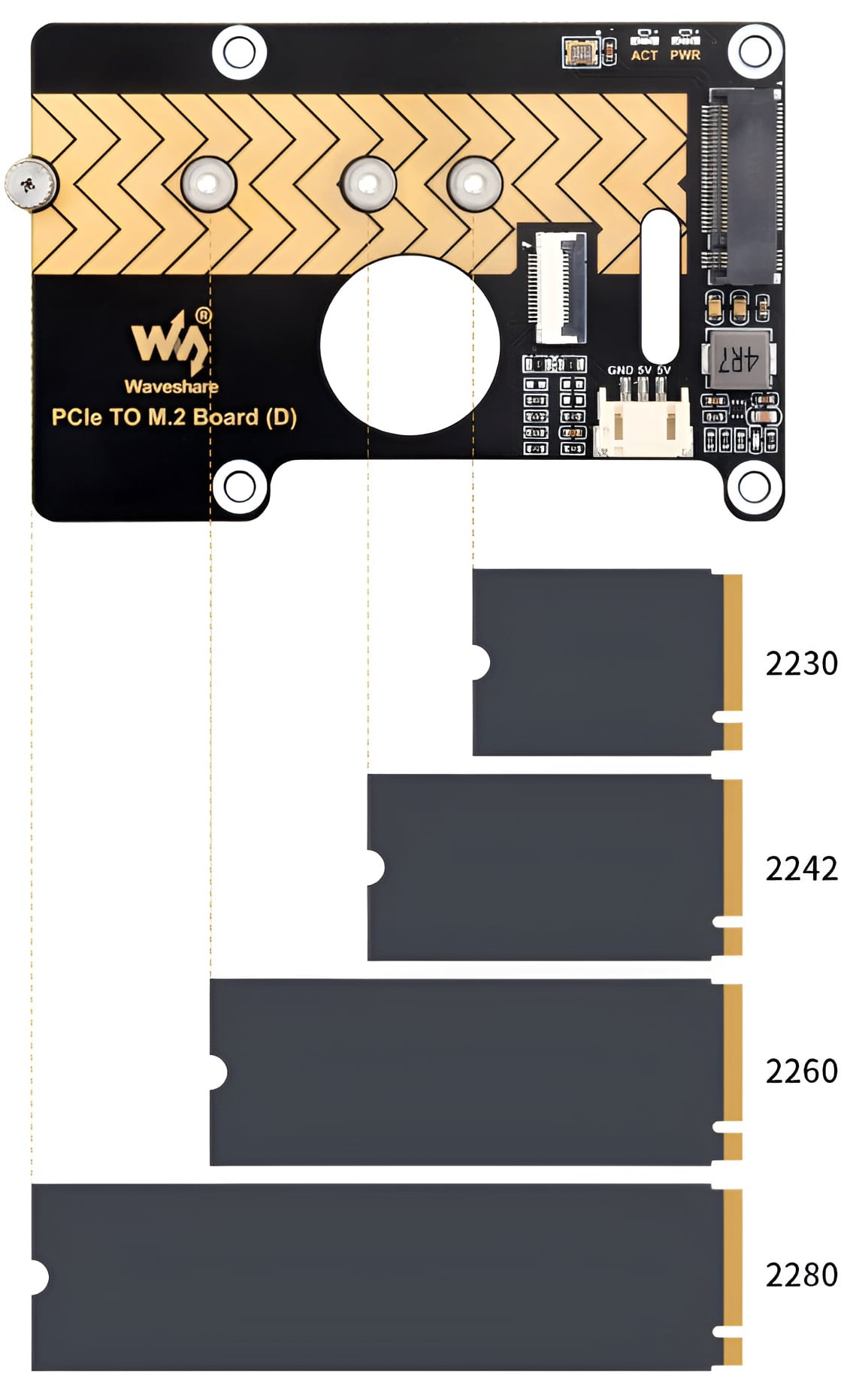

Compatible SSD Sizes for PCIe To M.2 Adapter Board (D)
