SKU: TH1318

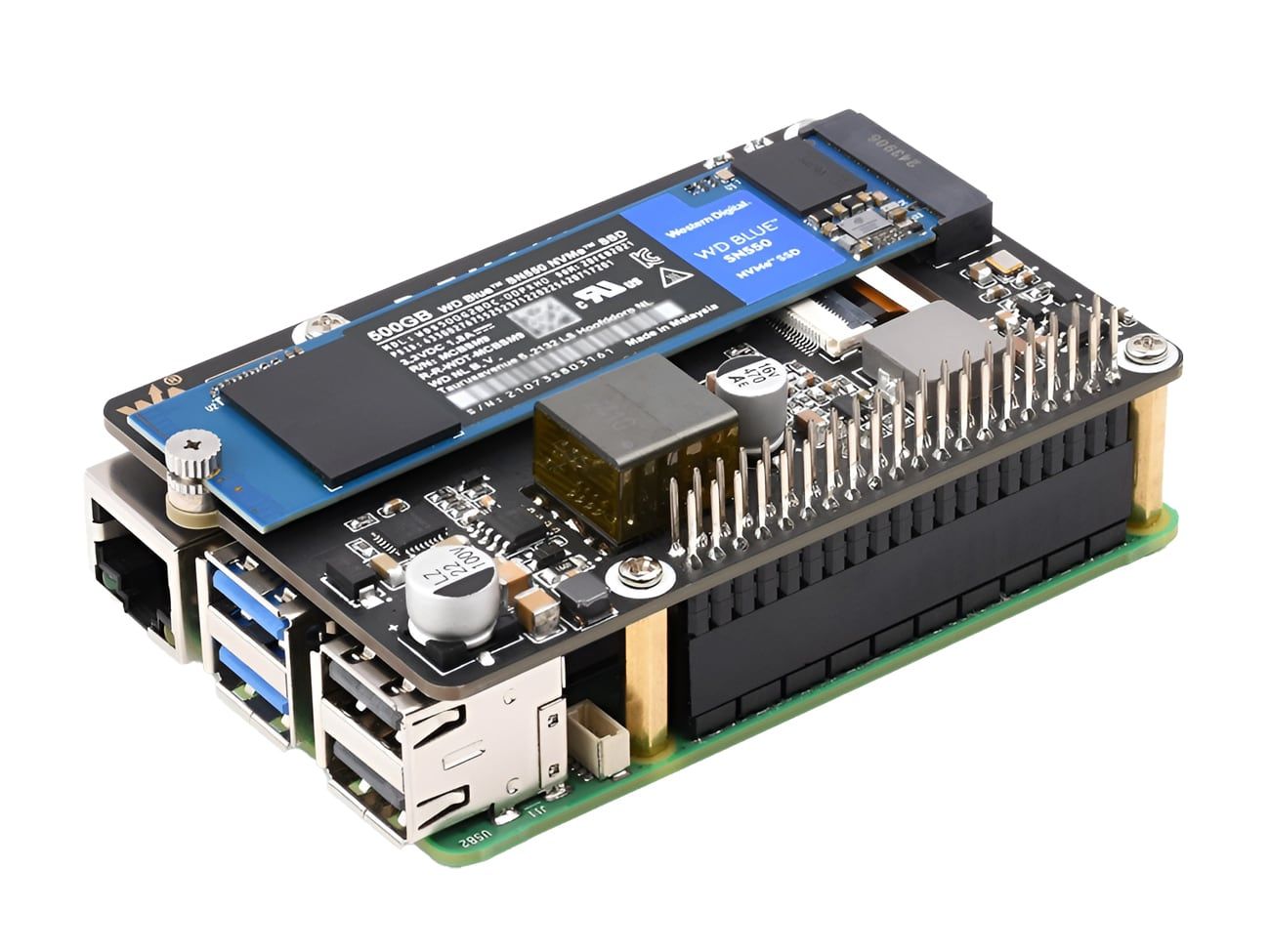

The PCIe to M.2 with PoE HAT (B) for Raspberry Pi 5 is an expansion board designed to combine high-speed data transfer capabilities with efficient power management. This HAT supports NVMe protocol M.2 solid-state drives (SSDs) in sizes 2230, 2242, 2260, and 2280, supports PCIe ×1 Gen2 and Gen3 modes thus offering exceptional read and write performance. Equipped with Power over Ethernet (PoE), it adheres to IEEE 802.3af/at standards, enabling both power and network connectivity through a single Ethernet cable.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
The PCIe to M.2 with PoE HAT (B) for Raspberry Pi 5 is an expansion board designed to combine high-speed data transfer capabilities with efficient power management. This HAT supports NVMe protocol M.2 solid-state drives (SSDs) in sizes 2230, 2242, 2260, and 2280, supports PCIe ×1 Gen2 and Gen3 modes thus offering exceptional read and write performance. Equipped with Power over Ethernet (PoE), it adheres to IEEE 802.3af/at standards, enabling both power and network connectivity through a single Ethernet cable.
The HAT delivers a high power output, with 5V up to 4.5A through the GPIO header and 12V up to 2A via a 2-pin header, ensuring stable power for the Raspberry Pi and connected peripherals. It features a standard Raspberry Pi 40-pin GPIO stackable header, which allows easy integration with additional HATs and expansion boards.
To monitor operational status, the HAT includes dual LED indicators for power (PWR) and activity (ACT).
It measures 85 mm × 56 mm, making it compact and easy to install. It is specifically designed for Raspberry Pi 5 and supports booting from an NVMe SSD for significantly improved system performance.
With its PoE capabilities reducing cable clutter and its support for high-speed NVMe SSDs, this adapter is an excellent choice for projects that require efficient power and data management. Whether for personal use or professional applications, it provides the performance and reliability needed to maximize the potential of the Raspberry Pi 5.
Here's whats included in the box.
Technical specifications for PCIe To M.2 Adapter with PoE HAT (B).
| Specification | Details |
|---|---|
| PoE Input Voltage | 37V to 57V DC |
| Power Output (GPIO Header) | 5V up to 4.5A |
| Power Output (2-Pin Header) | 12V up to 2A |
| Network Standard | IEEE 802.3af/at compliant |
| Supported SSD Sizes | M.2 2230, 2242, 2260, 2280 |
| PCIe Modes | Supports PCIe ×1 Gen2 or Gen3 modes |

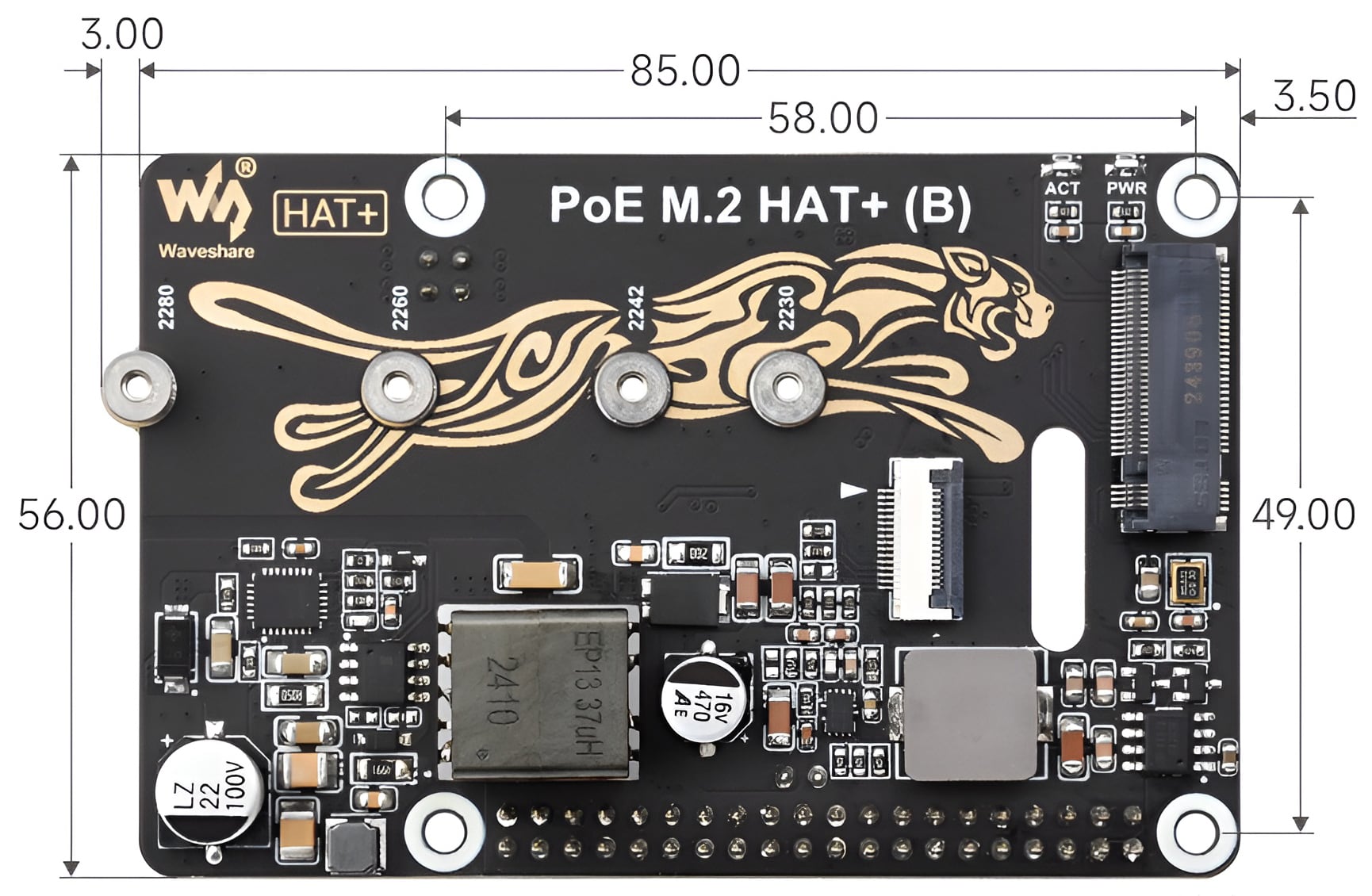

| Dimensions | 85 mm × 56 mm |
 |
|

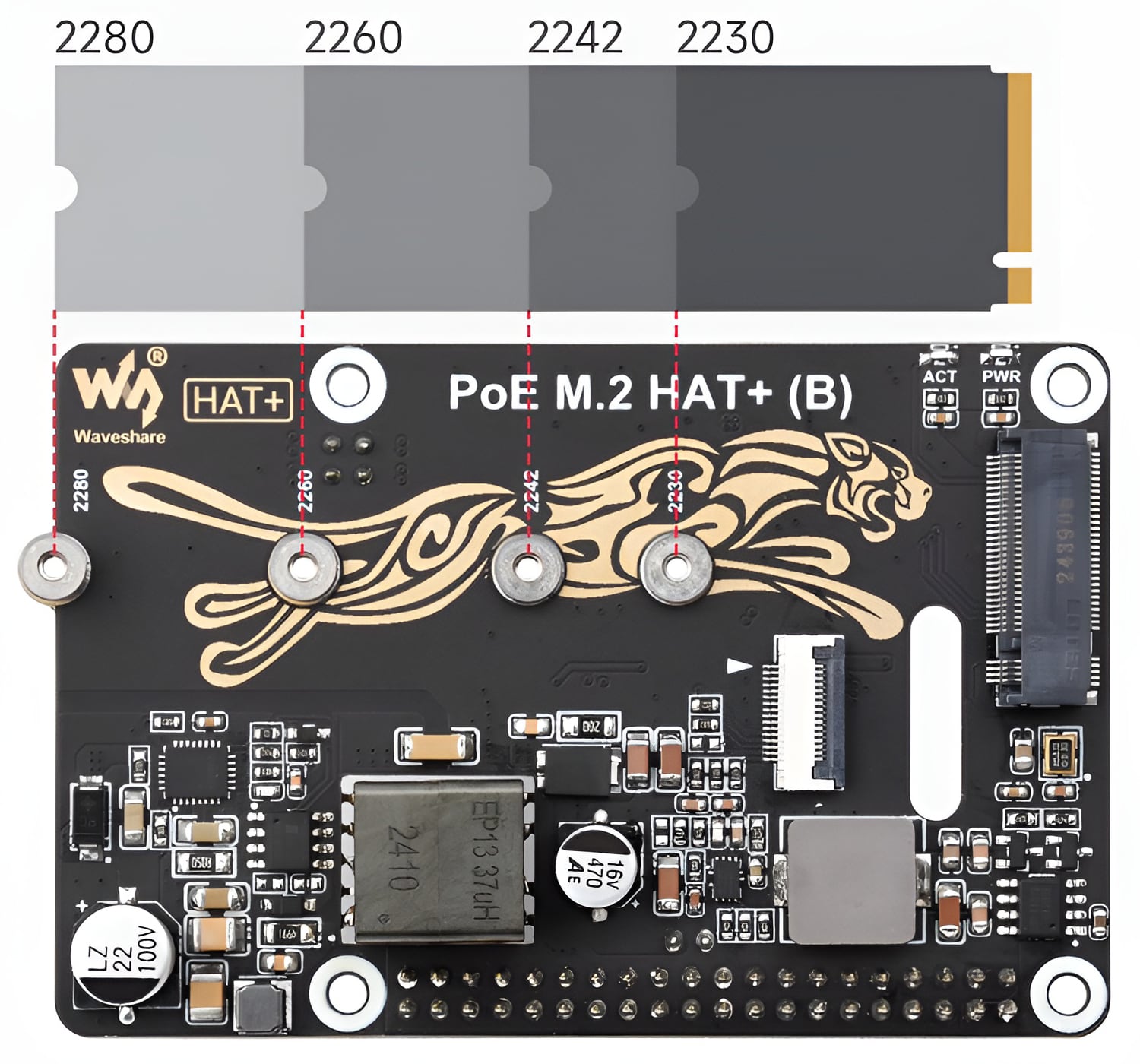

Compatible SSD Sizes for PCIe To M.2 Adapter with PoE HAT (B).
