Overview
The Uninterruptible Power Supply (UPS) HAT (B) is a power management device designed specifically for the Raspberry Pi. This HAT provides uninterrupted power by using an 18650 Li-ion rechargeable battery (not included) as a backup, ensuring stable operation during power outages or fluctuations. It features a USB-C power input with a recommended 5V/3A supply and delivers a consistent 5V output with up to 3A current, making it ideal for various Raspberry Pi applications.

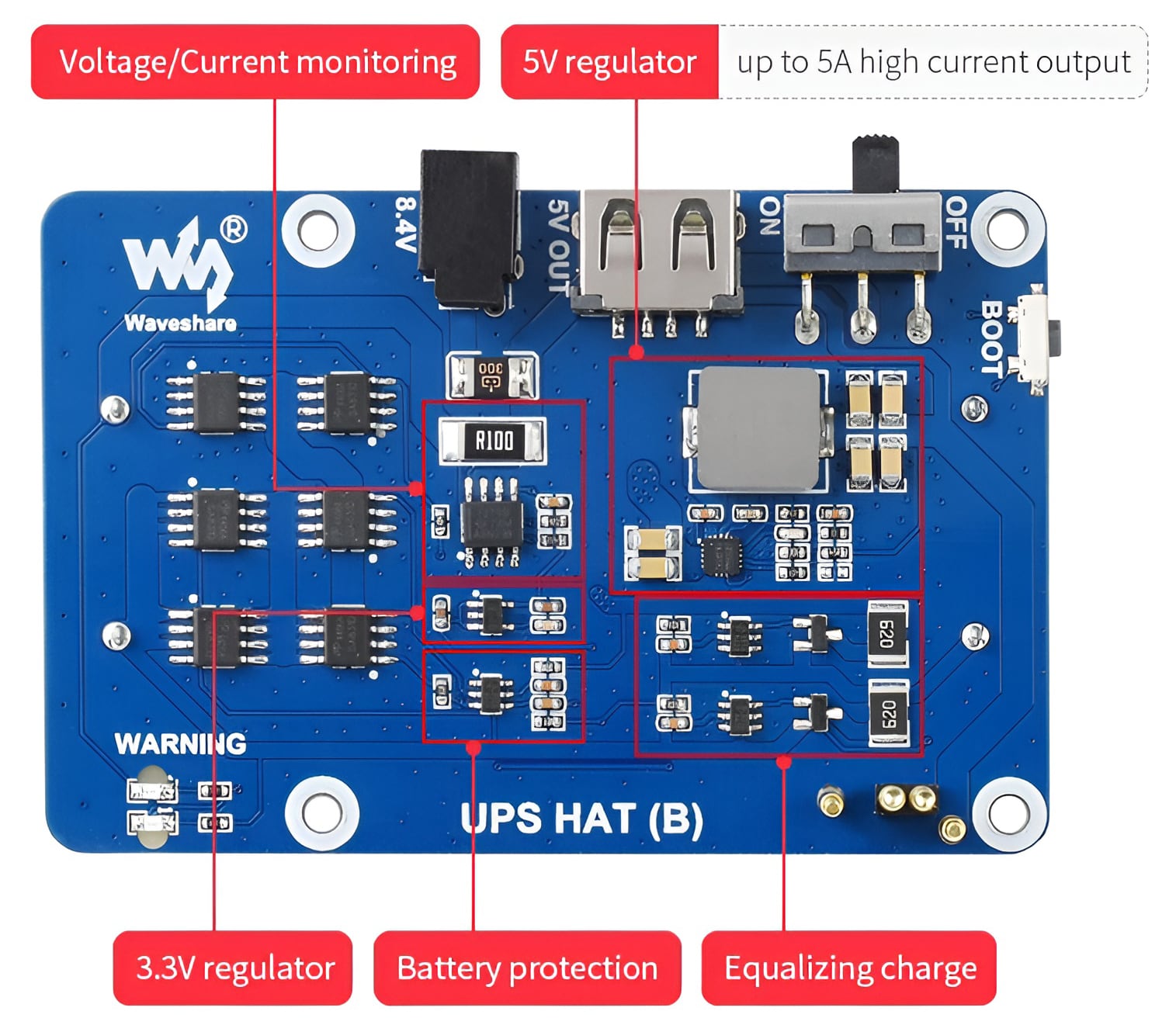

It has advanced protection circuits to prevent overcharge, over-discharge, and overcurrent issues, enhancing the safety and reliability. Real-time battery status can be monitored through onboard LEDs, providing quick and clear indicators of remaining charge.

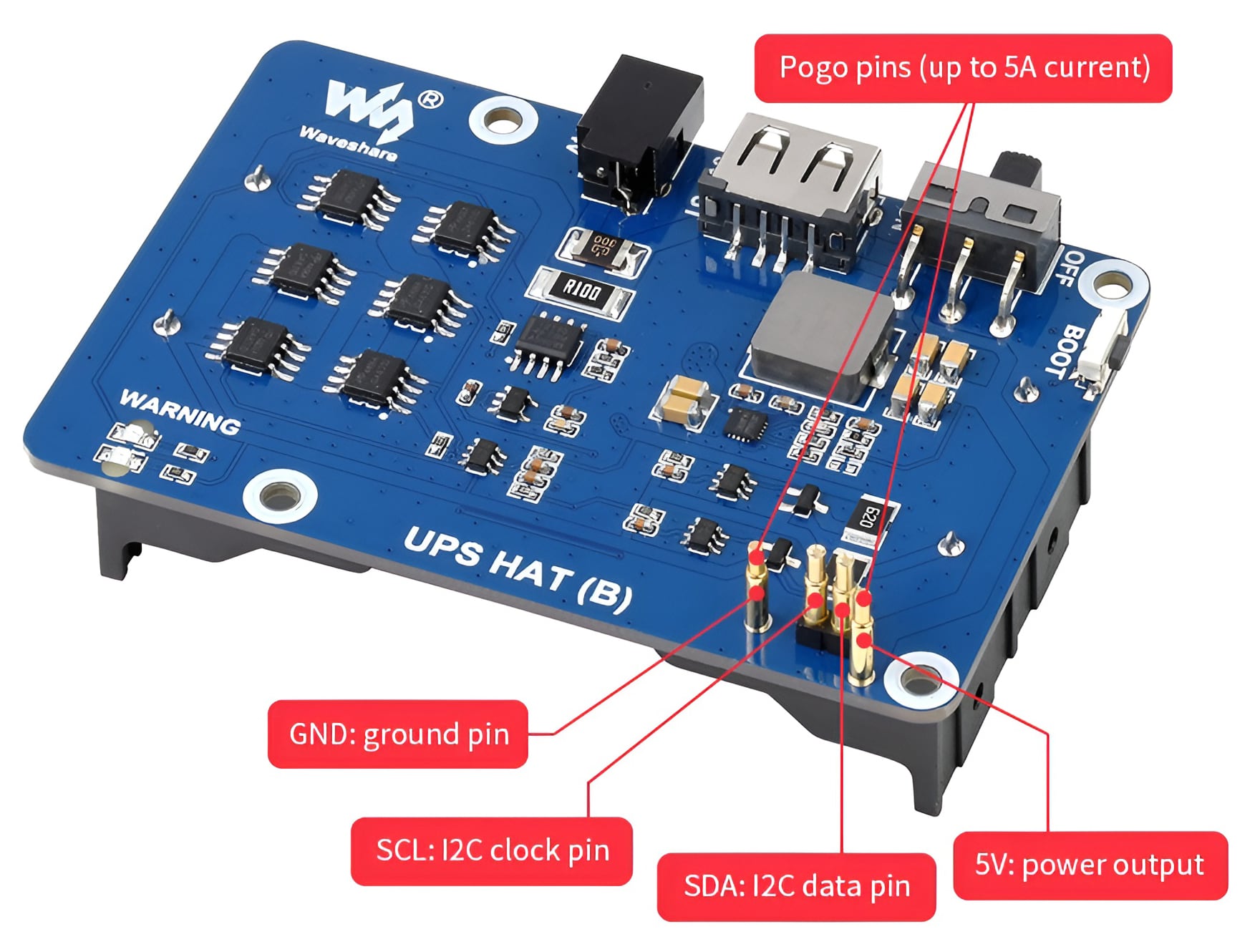

The UPS HAT compact form factor fits and connects seamlessly from the bottom base of the Raspberry Pi using the pogo pins. If your ever need a reliable power backup solution, the UPS Base HAT (B) is a robust accessory that safeguards your Raspberry Pi while extending its uptime.
Specifications
Technical specifications for UPS Base HAT (B) for Raspberry Pi, Supports 18650 Li-Ion Battery.
| Specifications | Details |
|---|---|
| Battery Type | 18650 Li-ion battery (not included) |
| Power Input | USB-C connector (5V/3A recommended) |
| Output Voltage | 5V |
| Output Current | Up to 3A |
| Battery Protection | Overcharge, Over-discharge, Overcurrent |
| Indicators | Battery level LEDs |
| Compatibility | Compatible with Raspberry Pi 5 / 4B / 3B+, etc. |
| Dimensions | 85 mm x 56 mm |

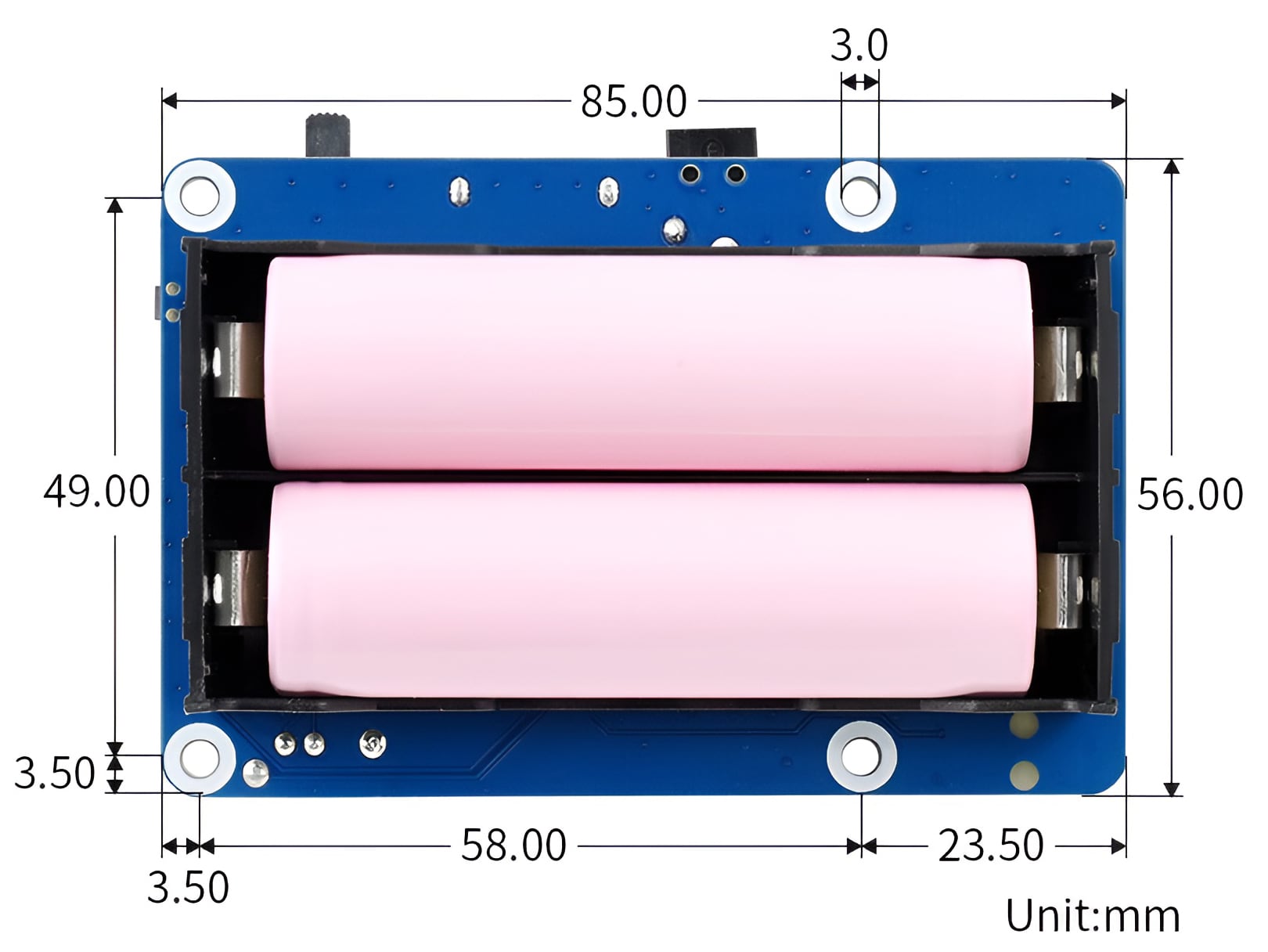

Dimensions
Dimensions for UPS HAT (B) for Raspberry Pi.
