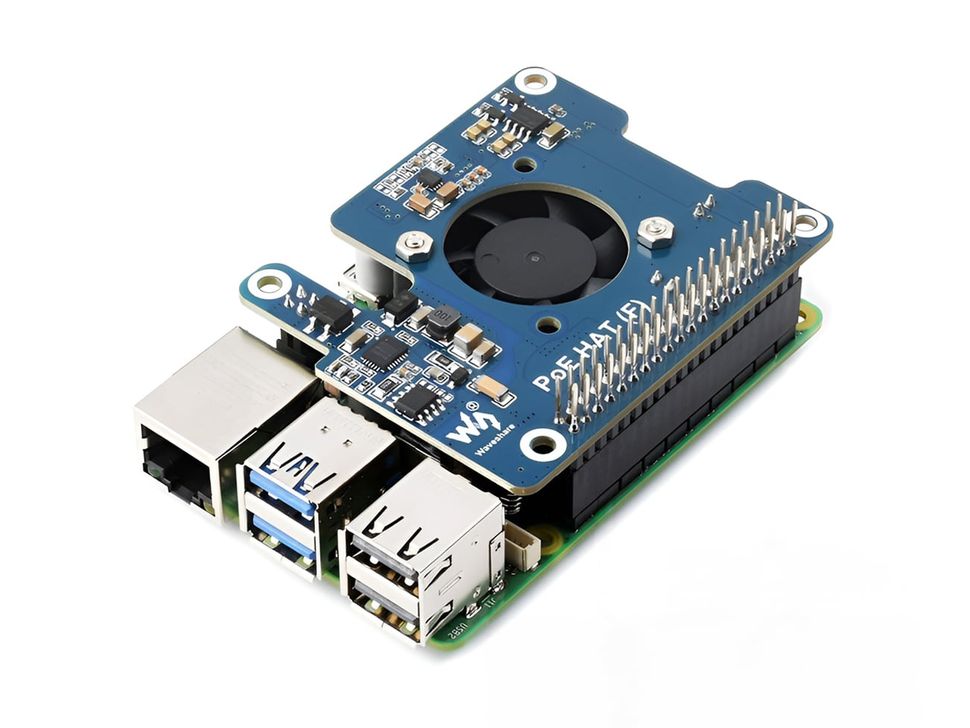

Overview
The Power Over Ethernet HAT (F) enables seamless network connectivity and power delivery through a single Ethernet cable. Compliant with the IEEE 802.3af/at standards, it eliminates the need for separate power supplies, making it an ideal choice for clutter free and streamlined setups.

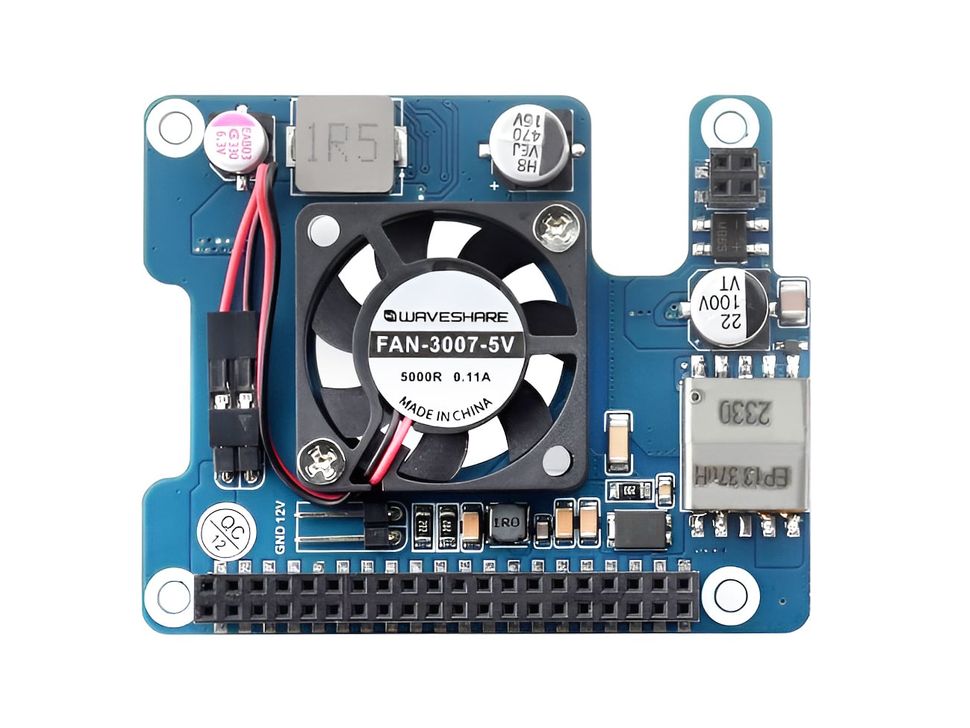

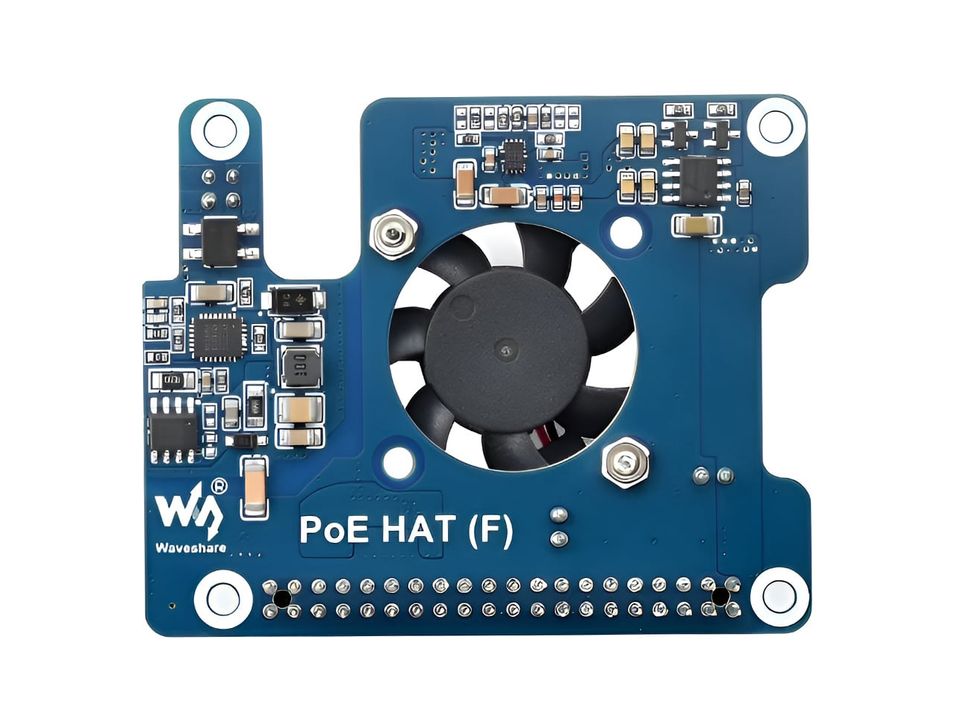

This HAT supports PoE input voltage ranging from 37V to 57V DC and delivers up to 5V 4.5A via the GPIO header, ensuring stable power for the Raspberry Pi and connected peripherals. Additionally, it provides 12V 2A through a 2-pin header for powering additional devices. The onboard high-speed active cooling fan, coupled with a metal heatsink, ensures efficient heat dissipation, maintaining optimal performance even under heavy loads.

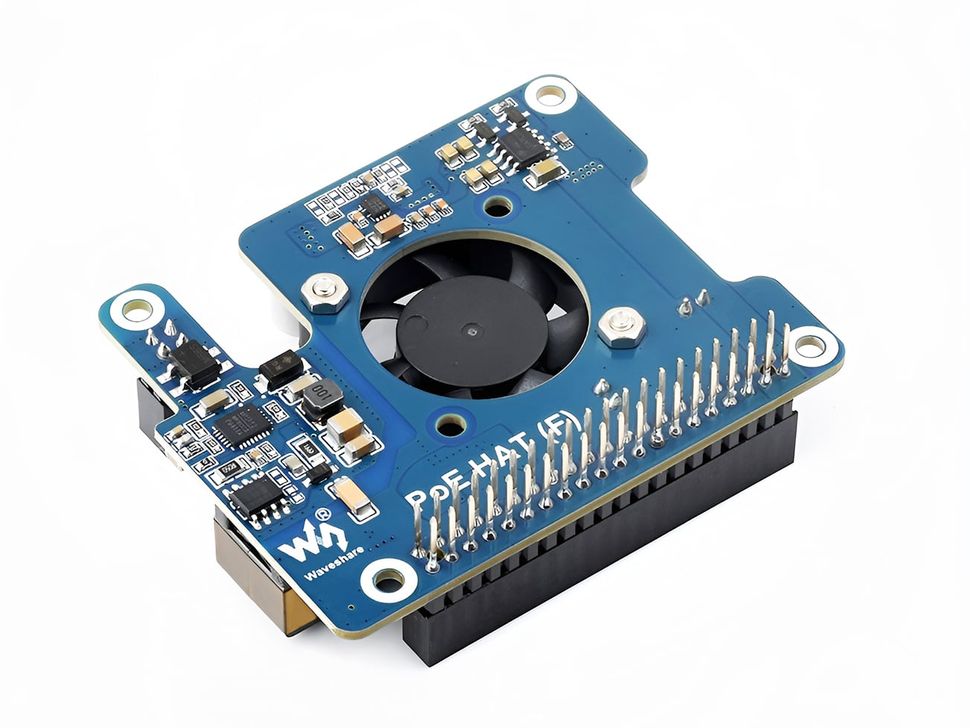

It features a standard 40-pin GPIO stackable header, allowing compatibility with other Raspberry Pi HATs and accessories. With compact dimensions of 56.5mm × 70.0mm, this HAT is easy to integrate into various applications.
Designed to reduce cable clutter and enhance system reliability, the Power Over Ethernet HAT (F) is an excellent choice for Raspberry Pi 5 users seeking efficiency and convenience.
Specifications
Technical specification for Waveshare PoE HAT (F) for Pi 5.
| Specification | Details |
|---|---|
| PoE Input Voltage | 37V to 57V DC |
| Power Outputs | GPIO Header: 5V up to 4.5A 2-Pin Header: 12V up to 2A |
| Network Standard | IEEE 802.3af/at PoE |
| Dimensions | 56.5mm × 70.0mm |
What's in the box?
Here's whats included in the box.
- PoE HAT (F) x1
- Metal heatsink x1
- Thermal tape (3PCS) x1
Dimensions
Dimensions for Waveshare PoE HAT (F) for Pi 5.
